Type 2 AC Surge Protective Device SLP40-275/3S+1

Location of Use: Sub-Distribution Boards

Network Systems: TT, TN-S

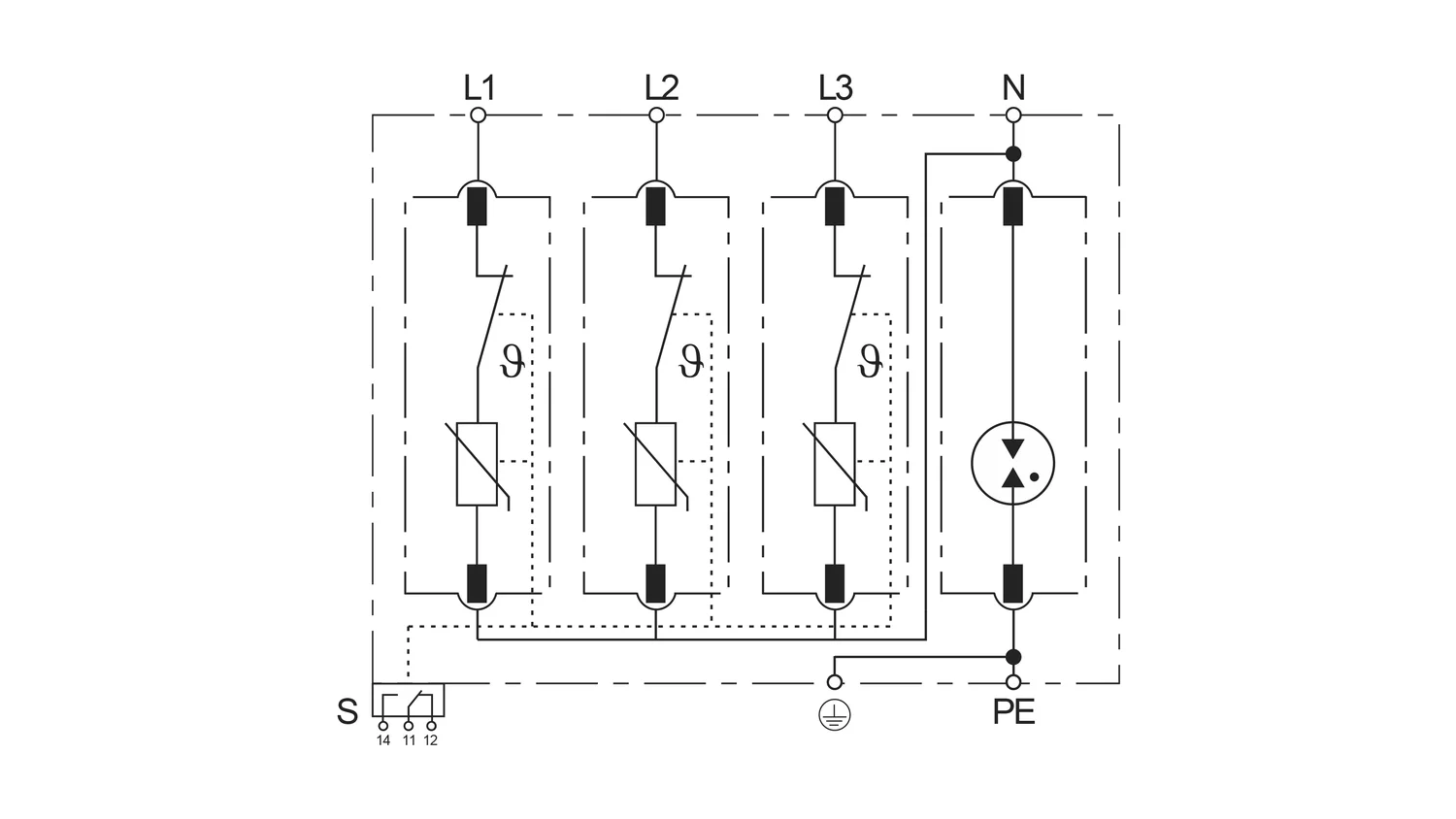

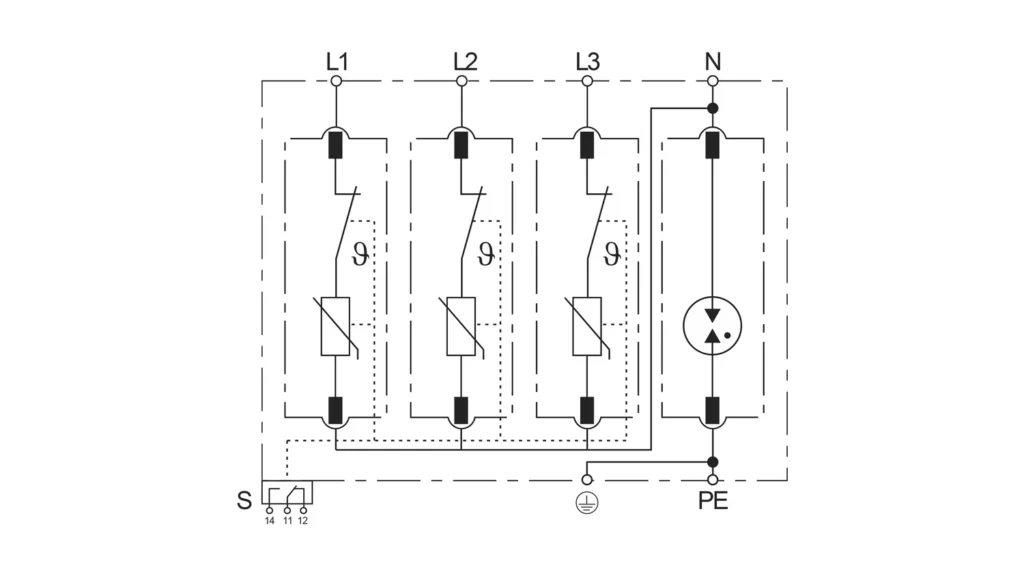

Mode of Protection: L-N, N-PE

Surge Ratings: I_n = 20kA (8/20 μs)

IEC/EN Category: Class II / Type 2

Protective Elements: High Energy MOV and GDT

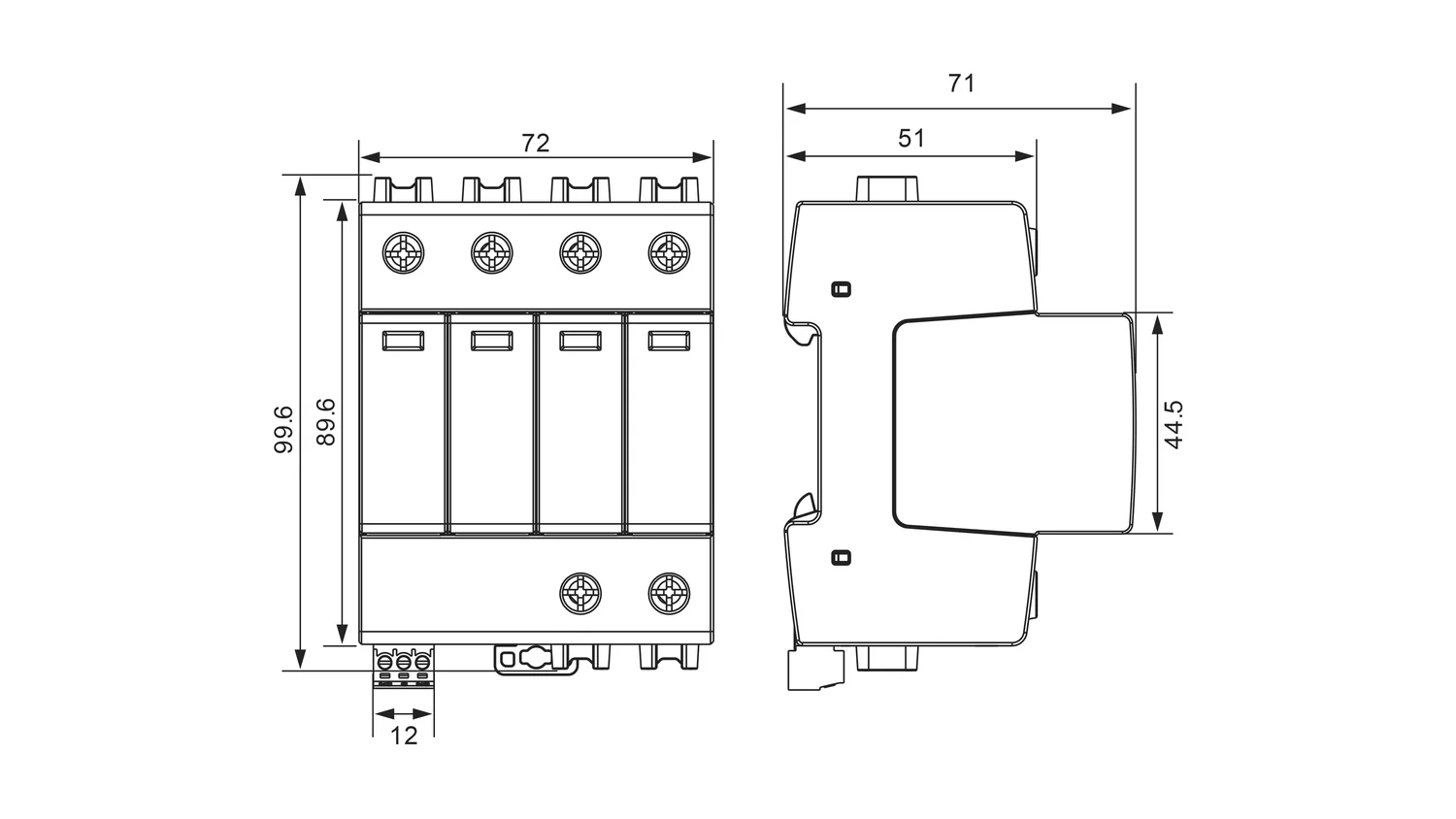

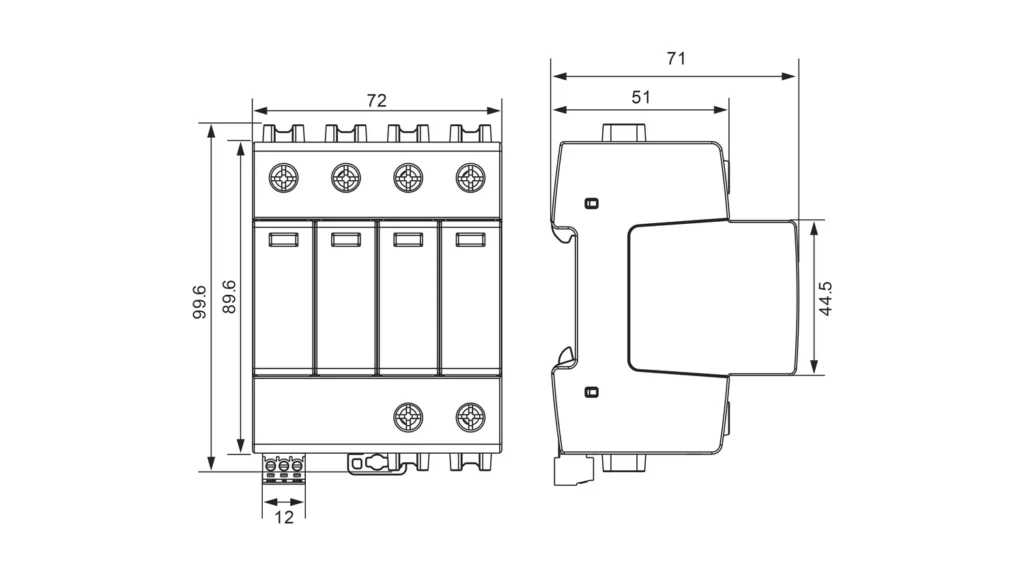

Housing: Pluggable design

Compliance: IEC 61643-11:2011, EN 61643-11:2012

Main Specification

Model No.	SLP40-275/3S+1
	SPD according to IEC/EN 61643-11	Type 2 / Class II / Class C
	Nominal voltage U_n	230V
	Max. continuous operating voltage U_c	275V
	Nominal discharge current (8/20 μs) (L-N) / (N-PE) I_n	20kA / 20kA
	Maximum discharge current (8/20 μs) (L-N) / (N-PE) I_max	40kA / 40kA
	Voltage protection level (L-N) / (N-PE) U_p	≤ 1.5kV / ≤ 1.5kV
	Max. backup fuse	125 A gG
	Type of remote signalling contact	yes / changeover contact
