Type 2 AC Surge Protective Device SLP40-275/2S

TUV, CB, and CE certifications

Single Phase

High discharge capacity due to heavy-duty zinc oxide varistor

Location of Use: Sub-Distribution Boards

Network Systems: TN-S

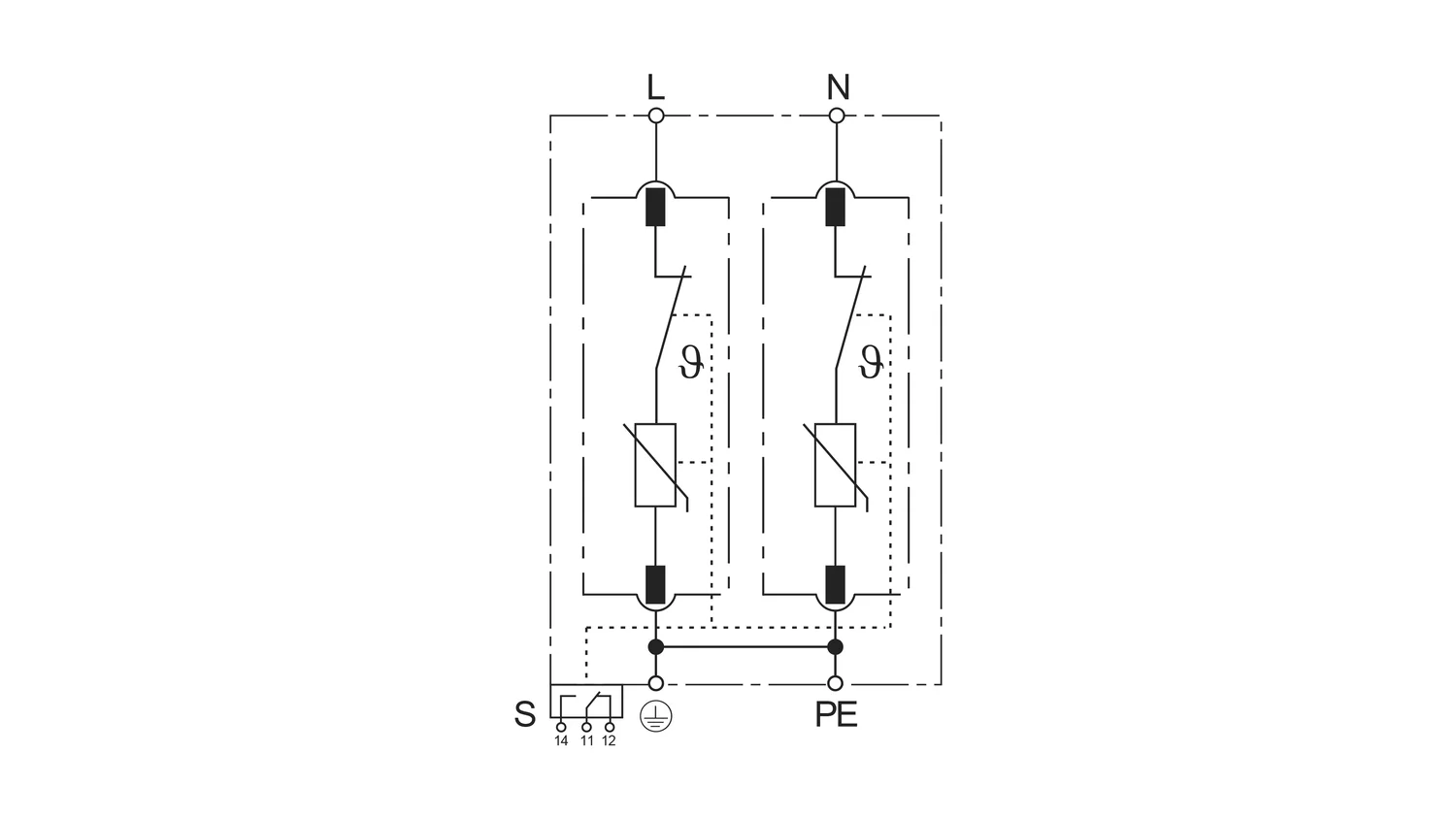

Mode of Protection: L-PE, N-PE

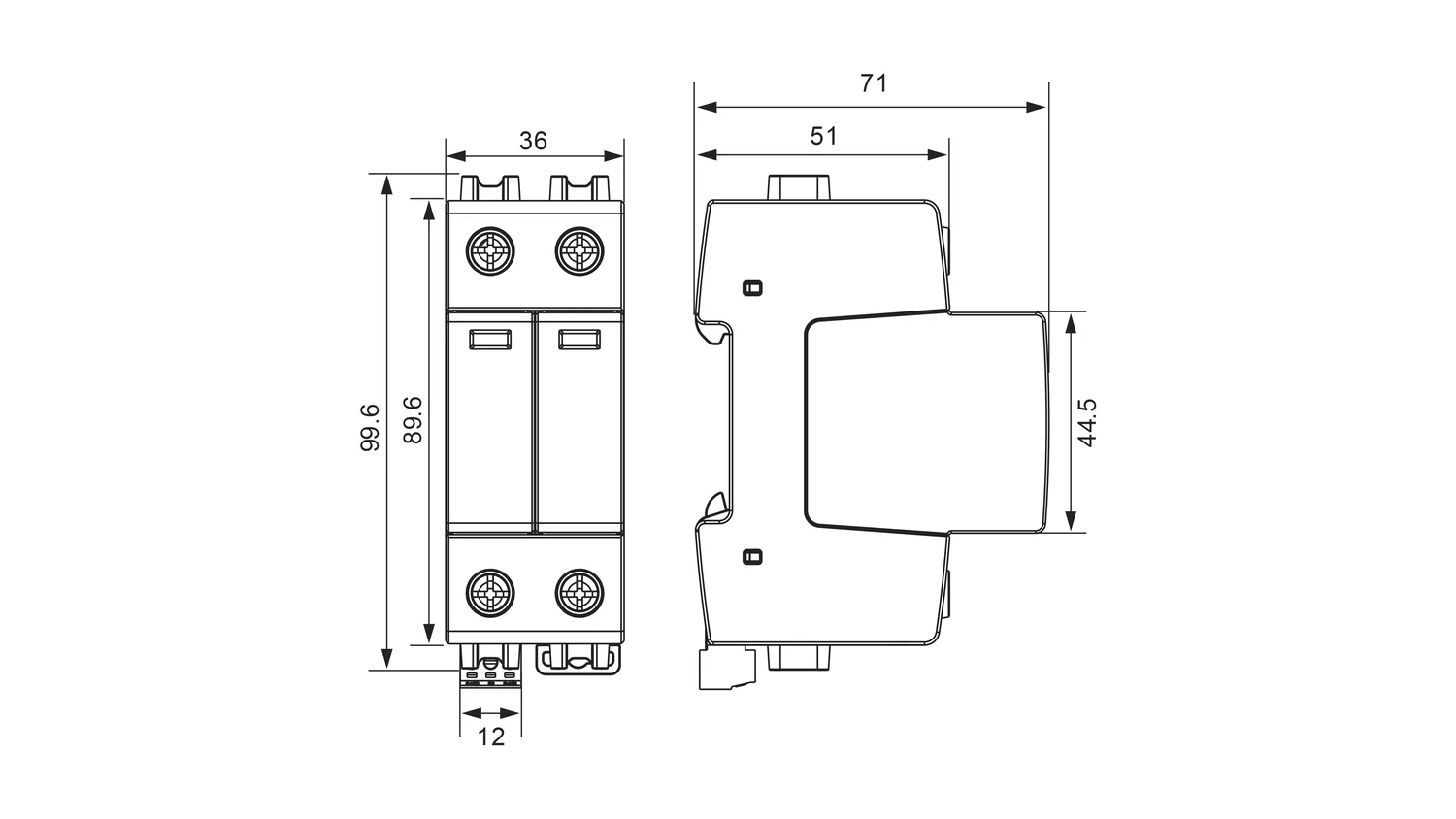

Housing: Pluggable Design

Compliance: IEC 61643-11:2011, EN 61643-11:2012

Specification

Nominal voltage U_n	230V
	Max. continuous operating voltage U_c	275V
	Type	Type 2 / Class II / Class C
	Nominal discharge current (8/20 μs) I_n	20kA @ Type 2
	Maximum discharge current (8/20 μs) I_max	40kA @ Type 2
	Voltage protection level (L-N) / (N-PE) U_p	1.5KV / 1.5KV
	Protective elements	Metal Oxide Varistor (MOV)
