Type 2 DC PV Solar Surge Protective Device SLP-PV600/S

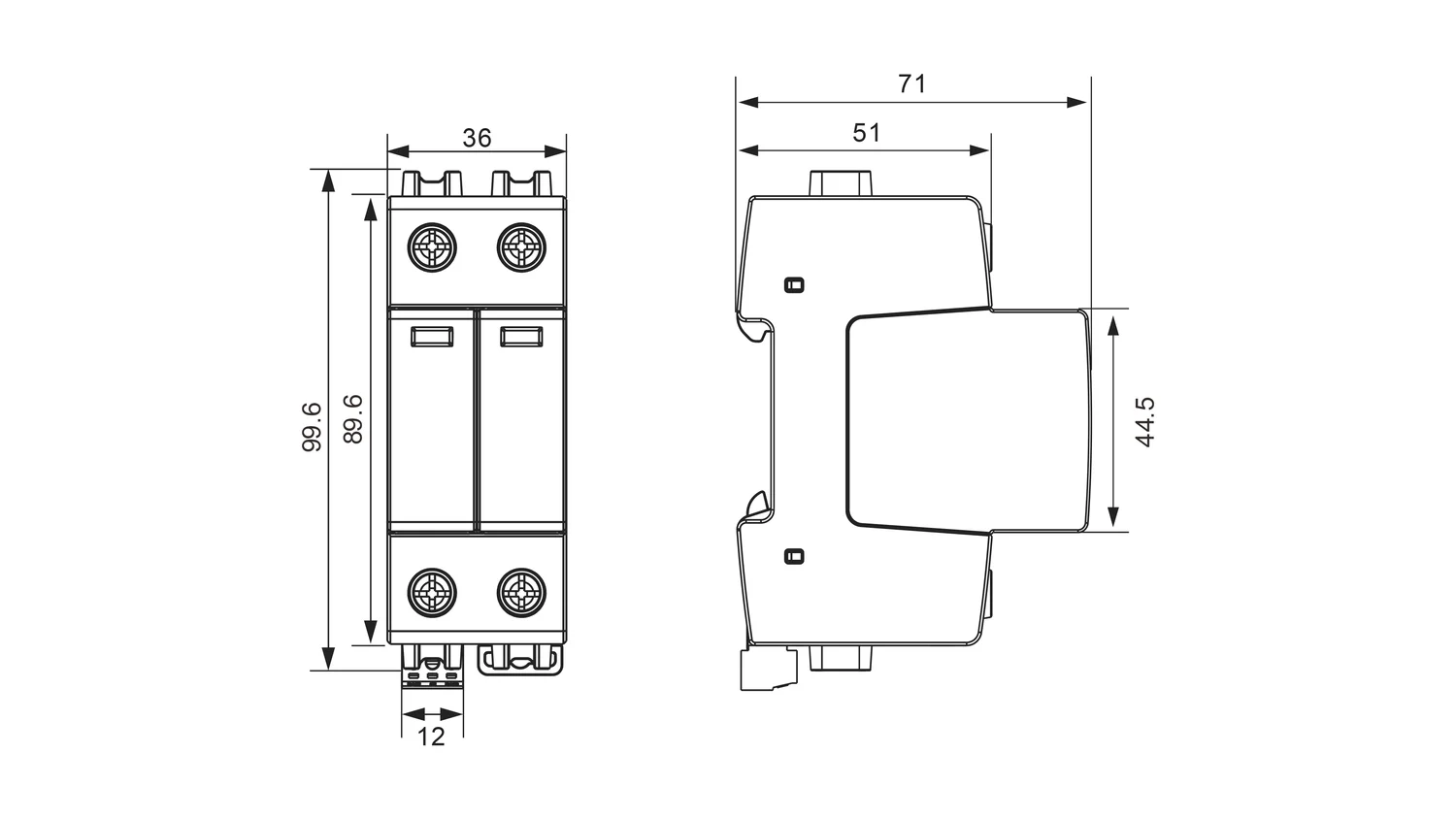

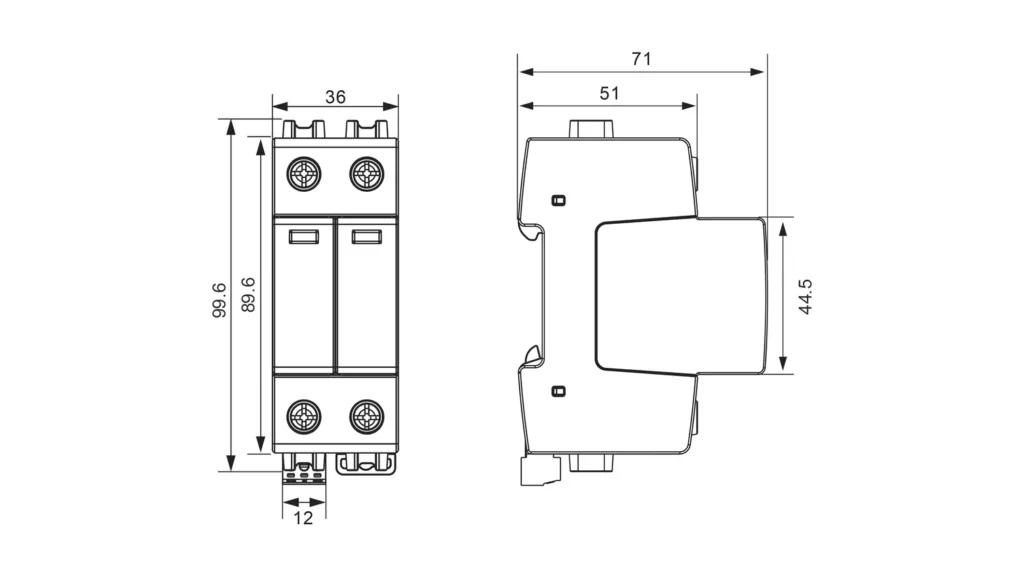

DIN rail installation, for 600V DC power system, high discharge capacity due to Metal Oxide Varistor (MOV)

Location of Use: String box, Inverter

Network Systems: (DC+)-PE, (DC-)-PE

Surge Ratings: I_n = 20kA (8/20 μs), I_max = 40kA (8/20 μs)

IEC/EN Category: Class II / Type 2

Protective Elements: High Energy MOV

Housing: Pluggable Design

Compliance: IEC/EN 61643-31

Main Specification

Model No.	SLP-PV600/S
	SPD according to IEC/EN 61643-31	Type 2 / Class II / Class C

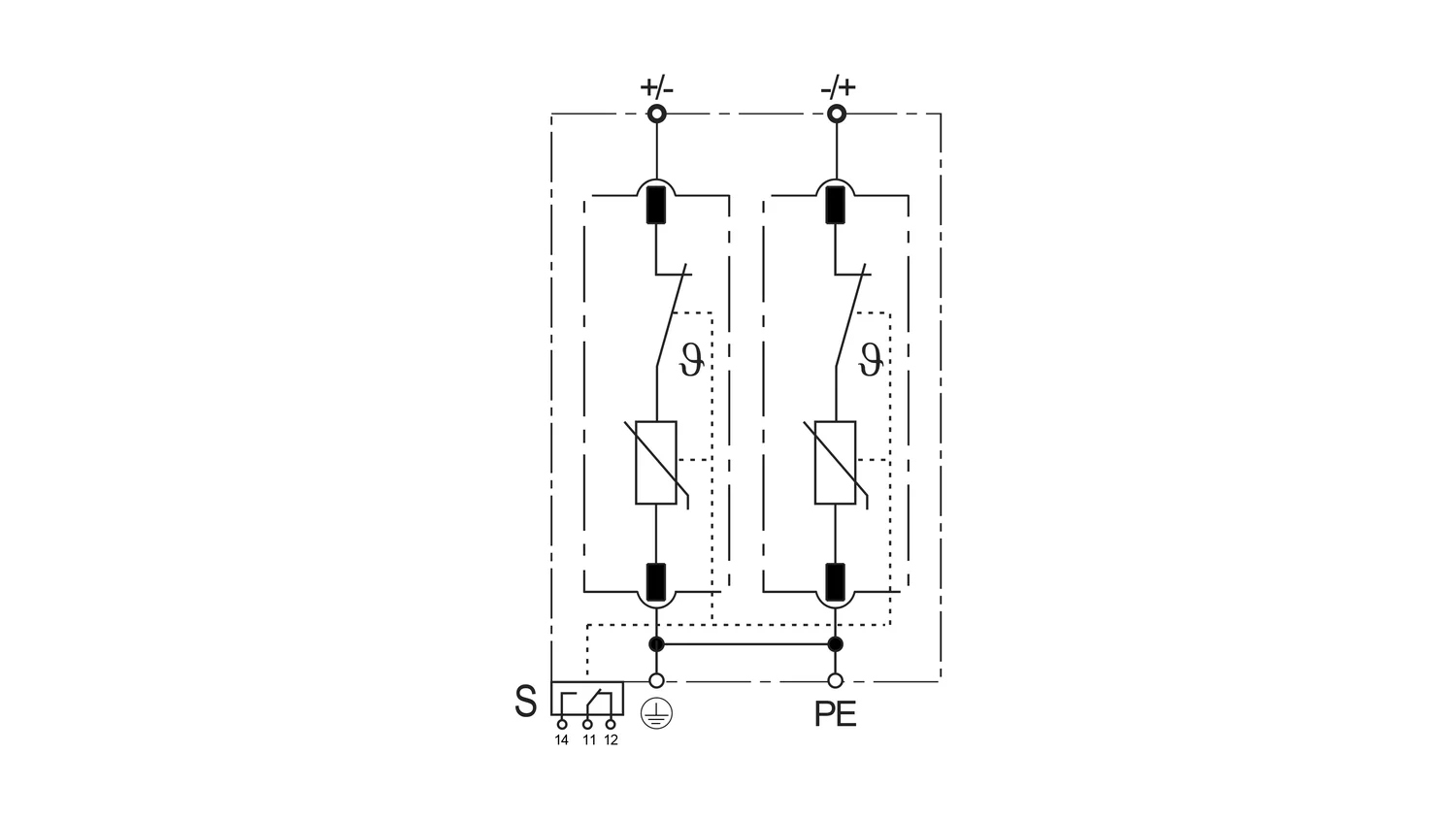

	Protection mode	Common Mode (CM)
	Connection mode	(DC+)-PE, (DC-)-PE
	Maximum continuous operating DC voltage (DC+)-PE, (DC-)-PE U_cpv	600Vdc
	Maximum continuous operating DC voltage (DC+)-(DC-) U_cpv	-
	Nominal discharge current (8/20 μs) I_n	20kA
	Total discharge current (8/20 μs) I_total	40kA
	Maximum discharge current (8/20 μs) I_max	40kA
	Voltage protection level (DC+)-PE, (DC-)-PE U_p	2.2kV
	Voltage protection level (DC+)-(DC-) U_p	-
