Type 1+2 DC PV Solar Surge Protective Device FLP-PV1500/S

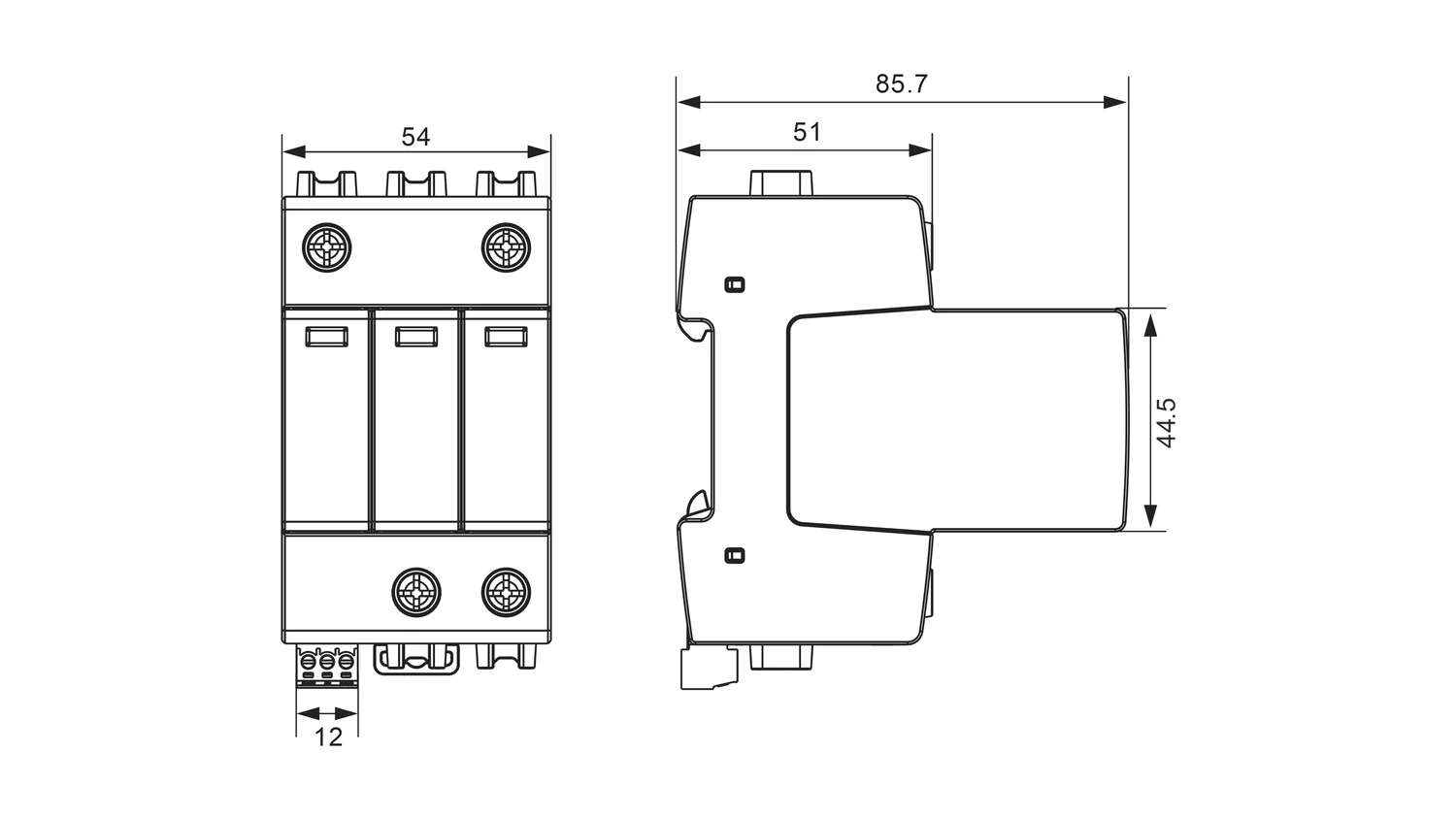

DIN rail installation

For 1500V DC / PV / Solar power system

High discharge capacity due to zinc oxide varistor

Location of Use: String box, Inverter

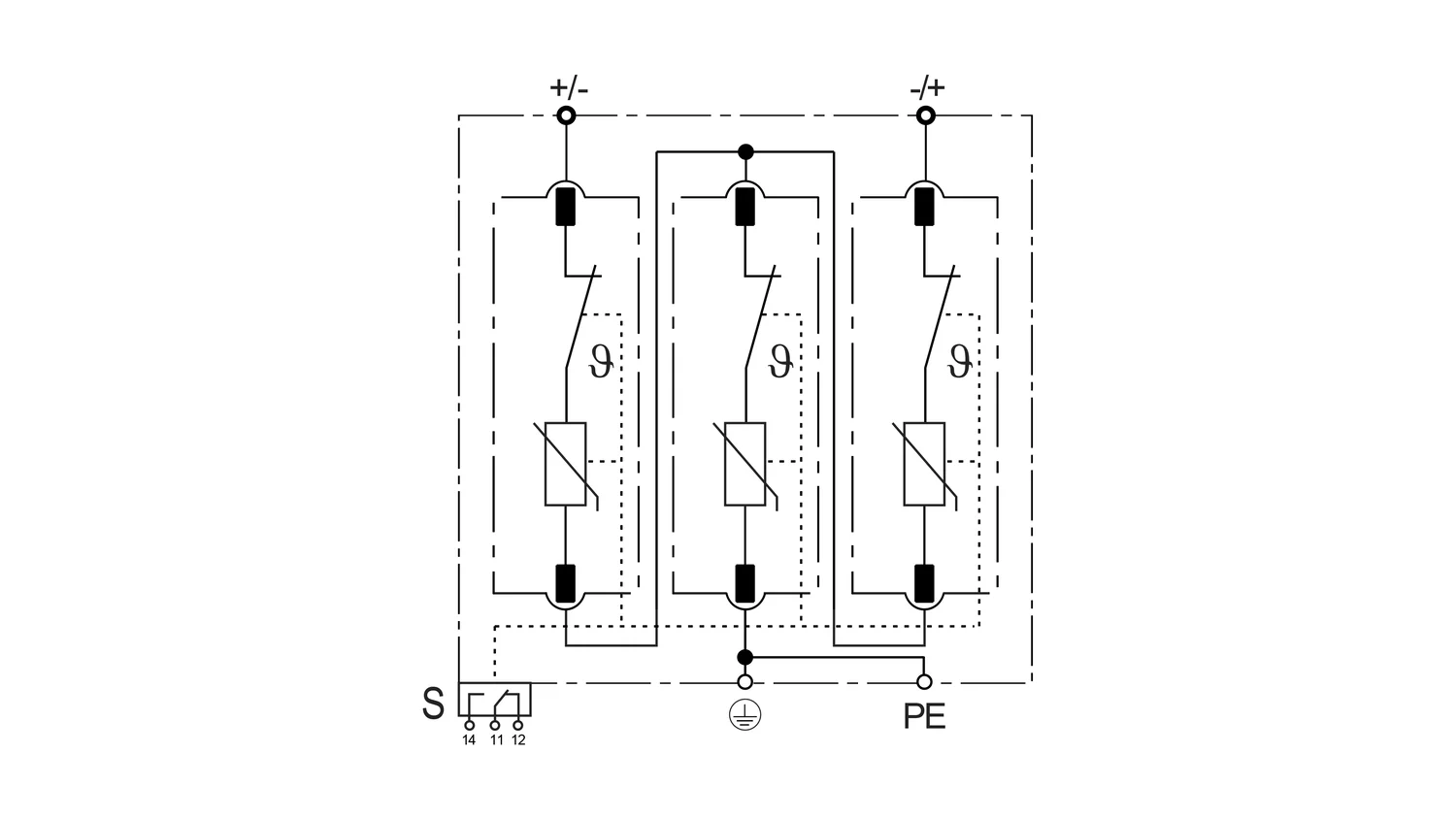

Mode of Protection: (DC+) - PE, (DC-) - PE, (DC+) - (DC-)

Housing: Monoblock Design

Compliance: IEC/EN 61643-31

Specification

Max. continuous operating voltage (DC+) - PE, (DC-) - PE U_c	1500V
	Max. continuous operating voltage (DC+) - (DC-) U_c	1500V
	Type	Type 1+2 / Class I+II / Class B+C
	Impulse discharge current (10/350 µs) I_imp	6.25kA
	Nominal discharge current (8/20 μs) I_n	20kA @ Type 2
	Maximum Discharge Current (8/20 μs) I_max	40kA @ Type 2
	Protective elements	Metal Oxide Varistor (MOV)
