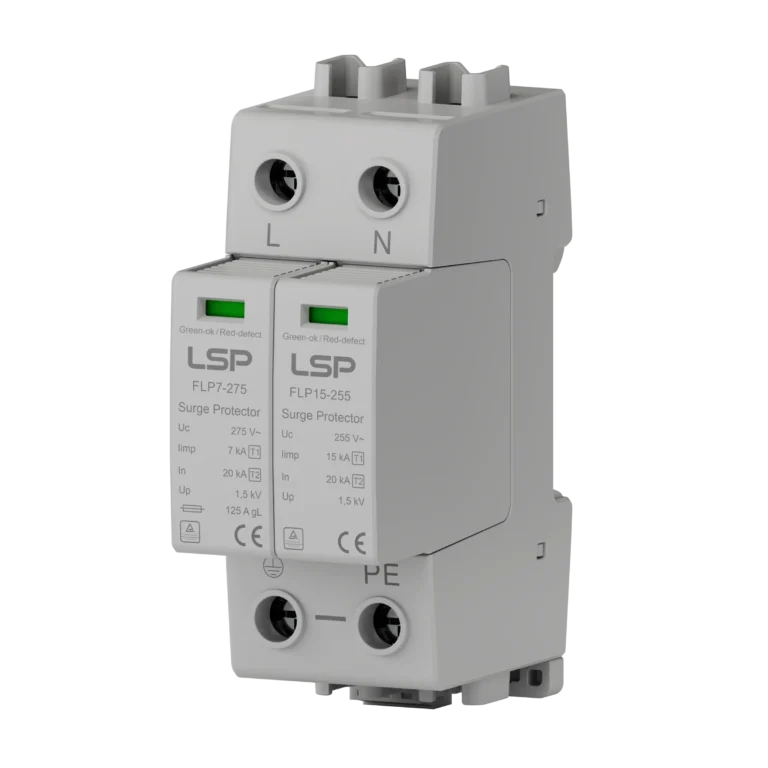

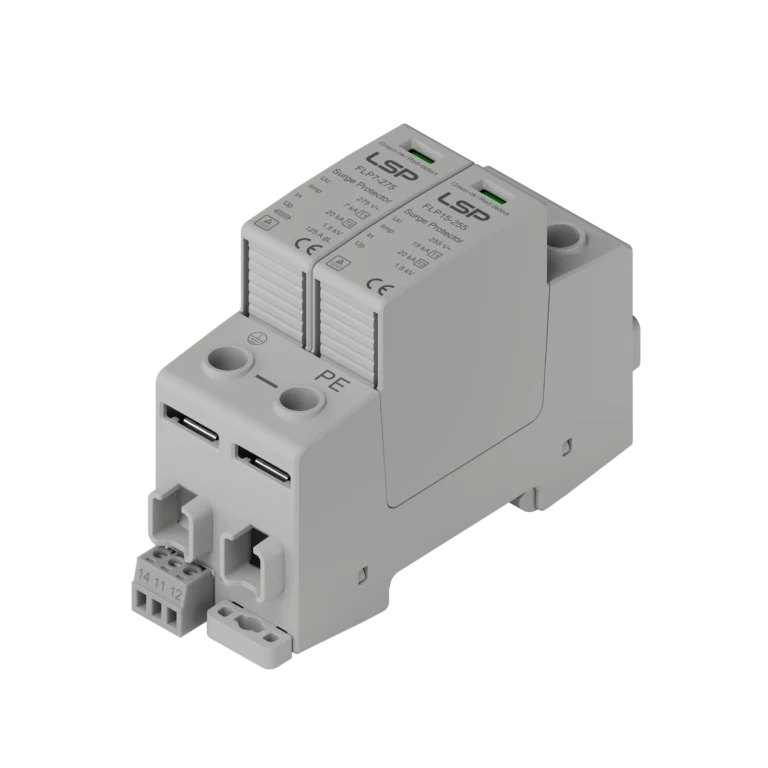

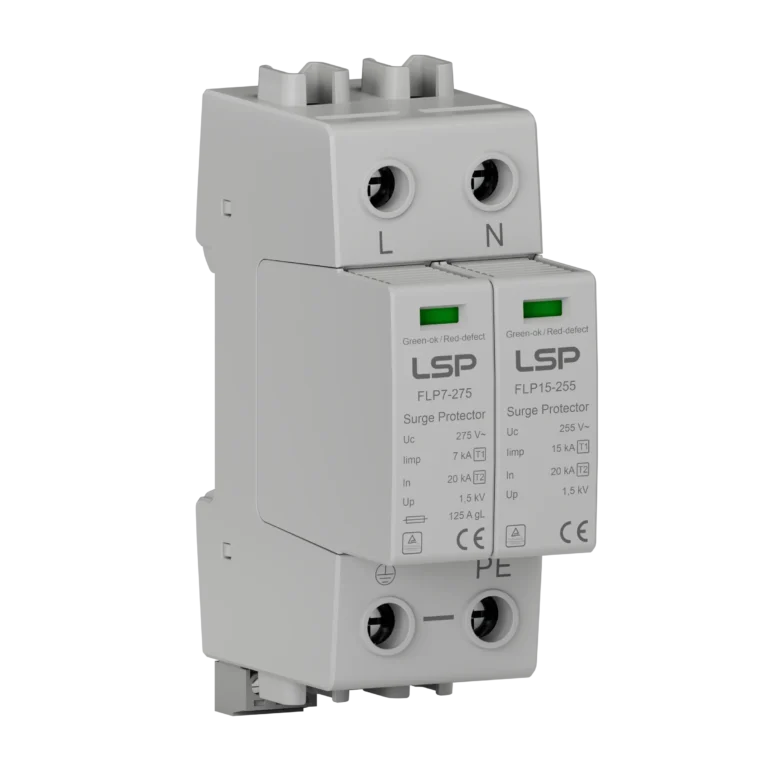

Type 1+2 AC Surge Protective Device FLP7-275/1S+1

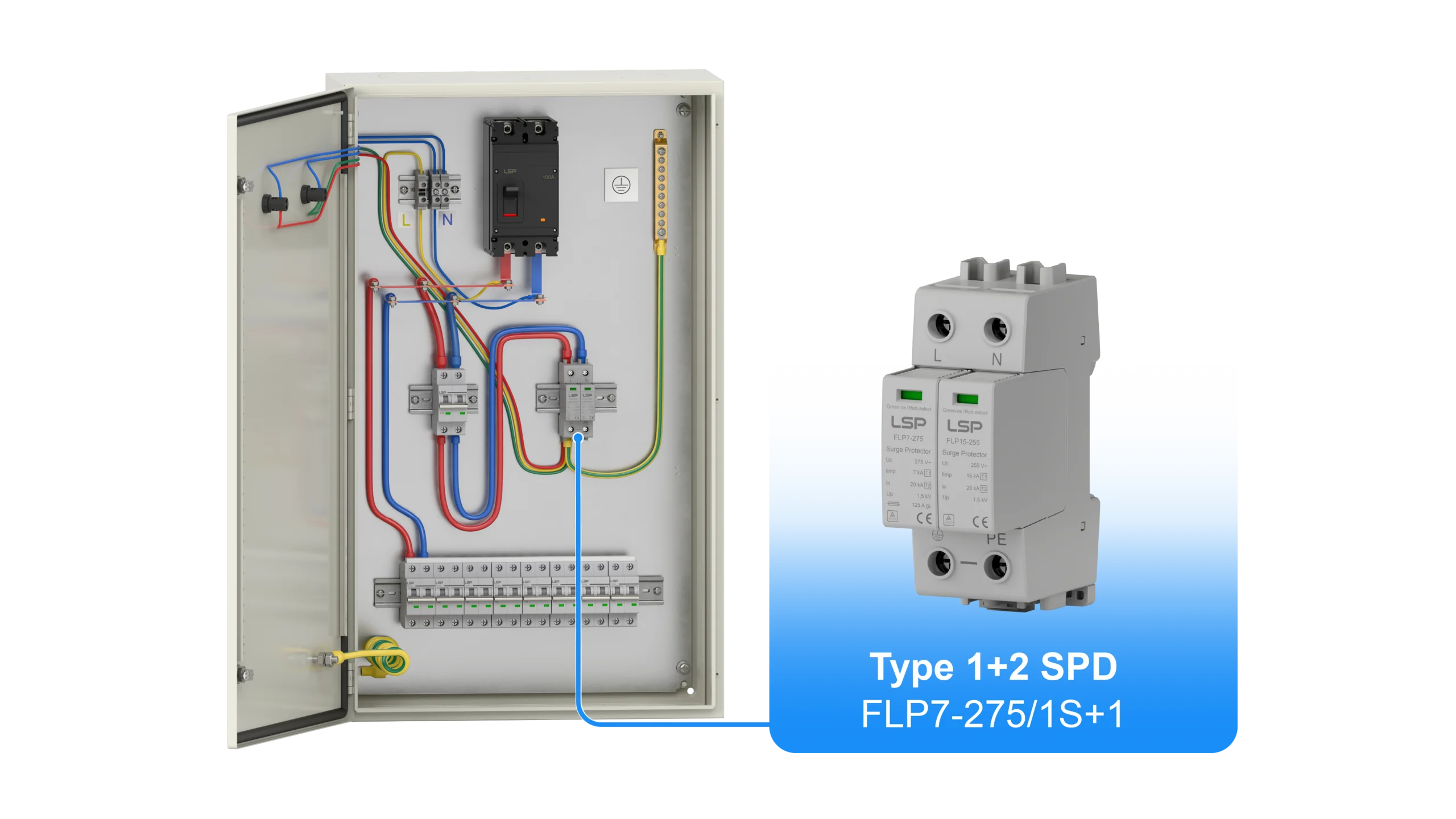

Location of Use: Main Distribution Boards

Network Systems: TT, TN-S

Mode of Protection: L-N, N-PE

Surge Ratings: I_imp = 7kA / 15kA (10/350 μs), I_n = 20kA (8/20 μs)

IEC/EN Category: Class I+II / Type 1+2

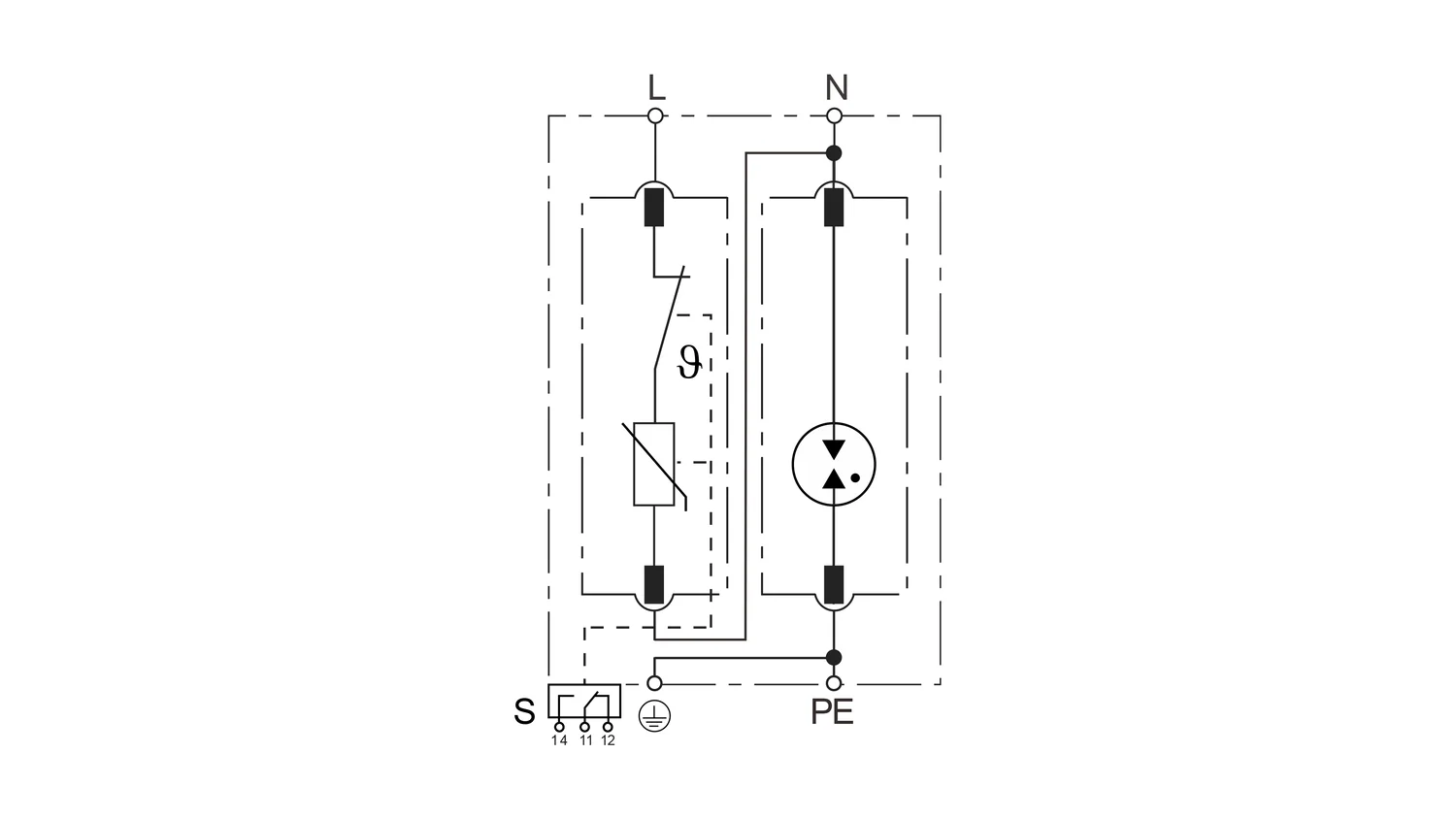

Protective Elements: High Energy MOV and GDT

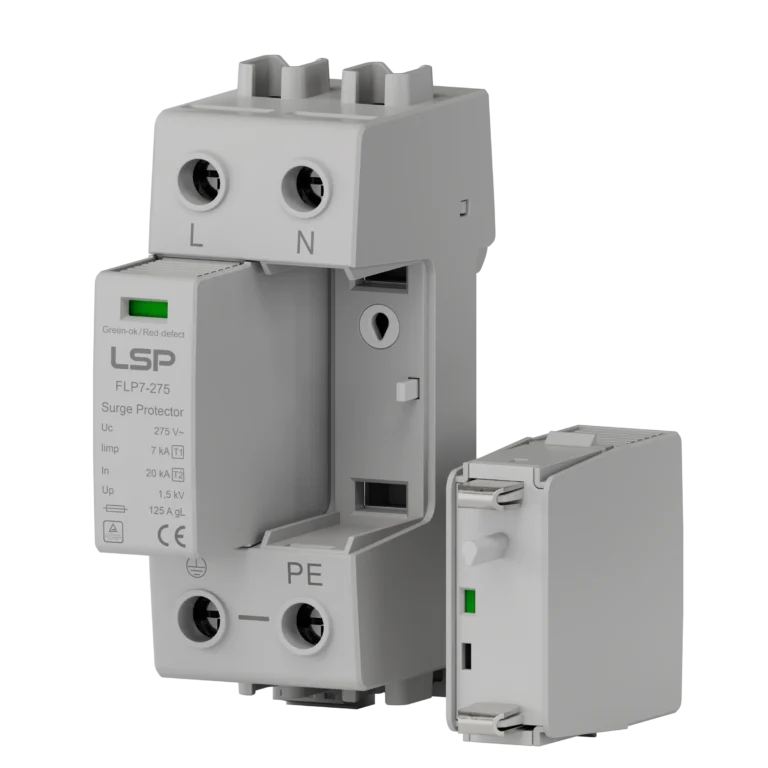

Housing: Pluggable design

Compliance: IEC 61643-11:2011, EN 61643-11:2012

Main Specification

Model No.	FLP7-275/1S+1
	SPD according to IEC/EN 61643-11	Type 1+2 / Class I+II / Class B+C
	Nominal voltage U_n	230V
	Max. continuous operating voltage U_c	275V
	Impulse discharge current (10/350 μs) (L-N) / (N-PE) I_imp	7kA / 15kA
	Nominal discharge current (8/20 μs) (L-N) / (N-PE) I_n	20kA / 20kA
	Maximum discharge current (8/20 μs) (L-N) / (N-PE) I_max	50kA / 50kA
	Voltage protection level (L-N) / (N-PE) U_p	≤ 1.5kV / ≤ 1.5kV
	Max. backup fuse	160 A gG

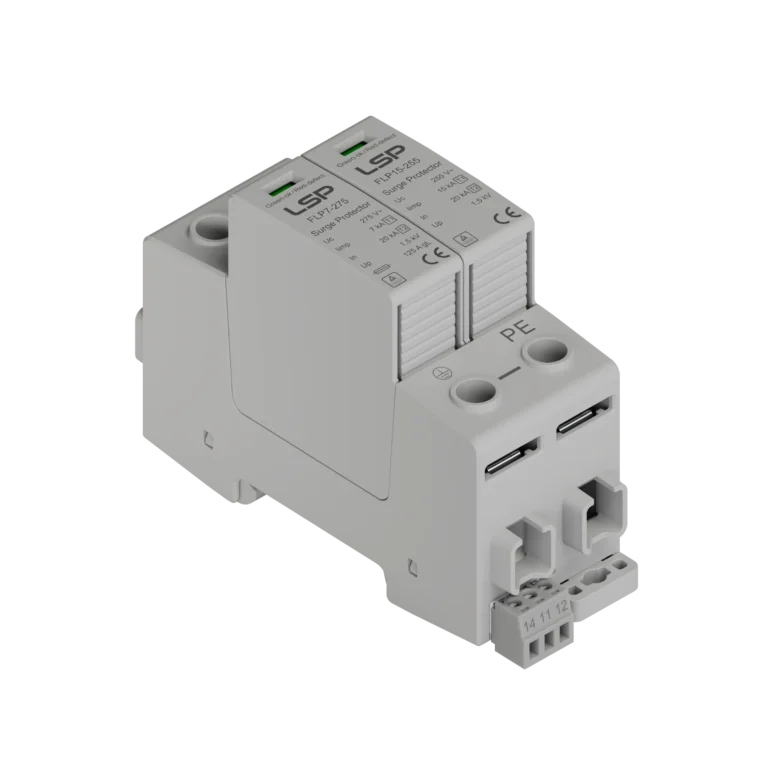

	Type of remote signalling contact	yes / changeover contact
