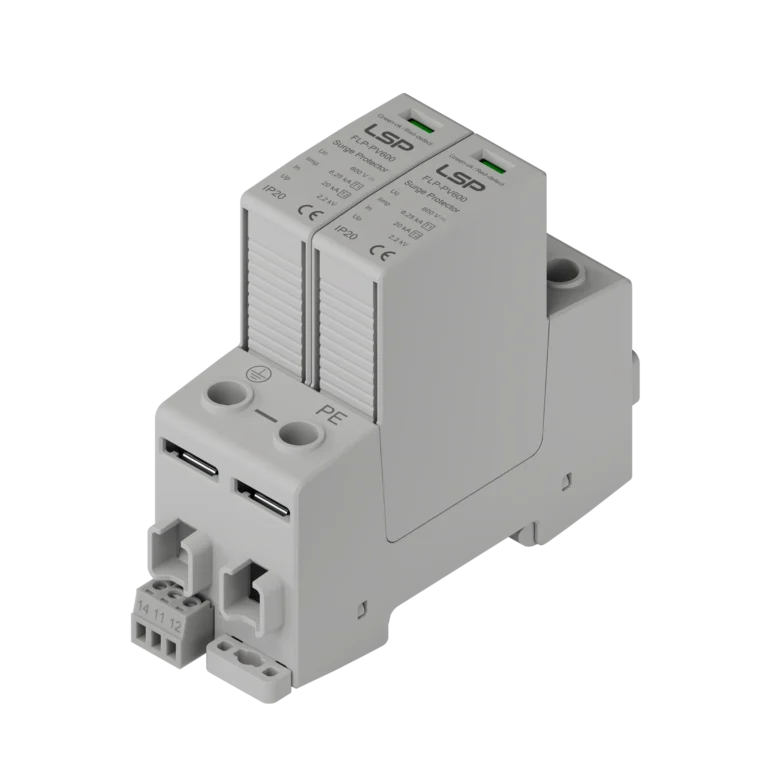

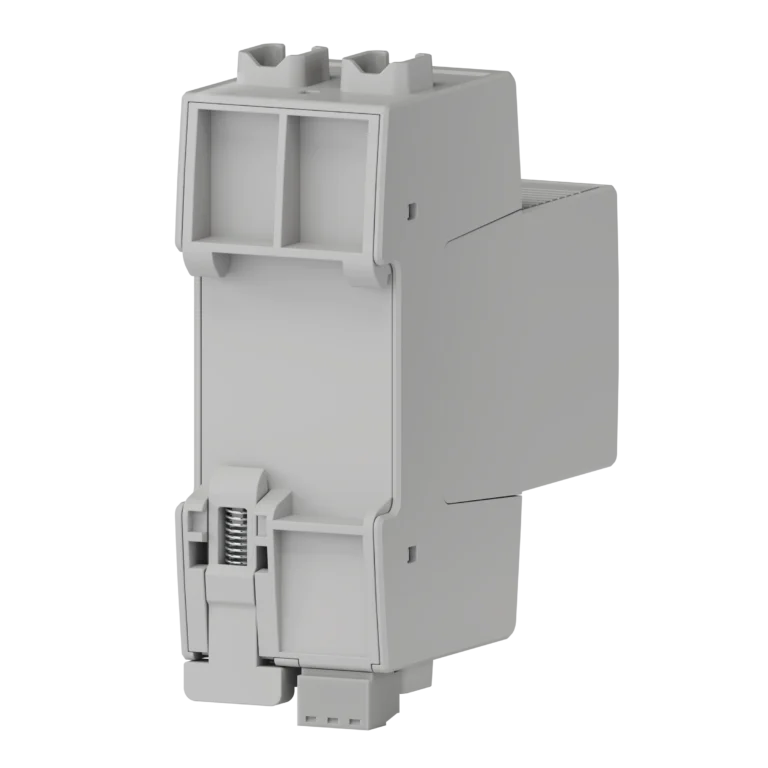

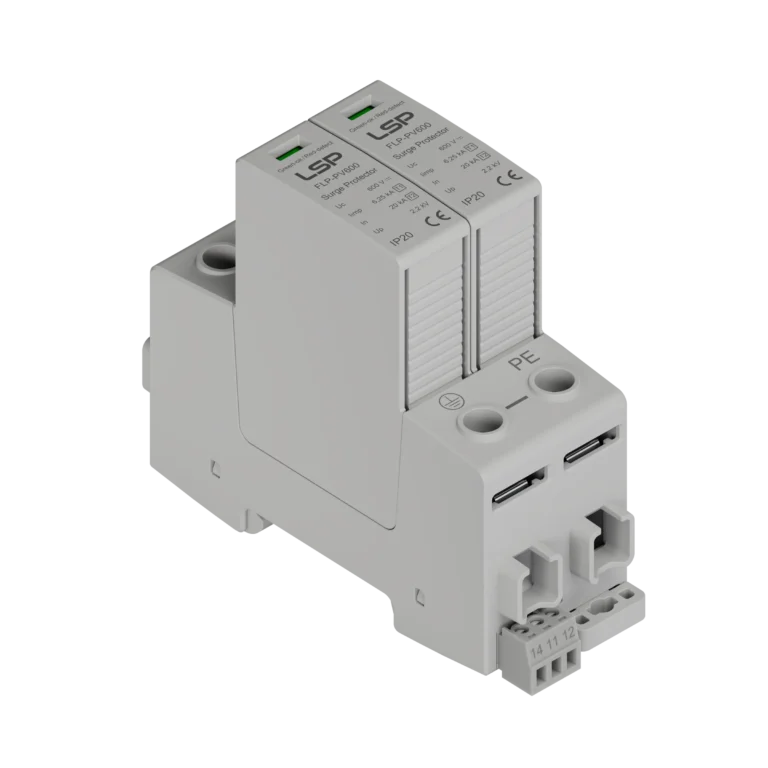

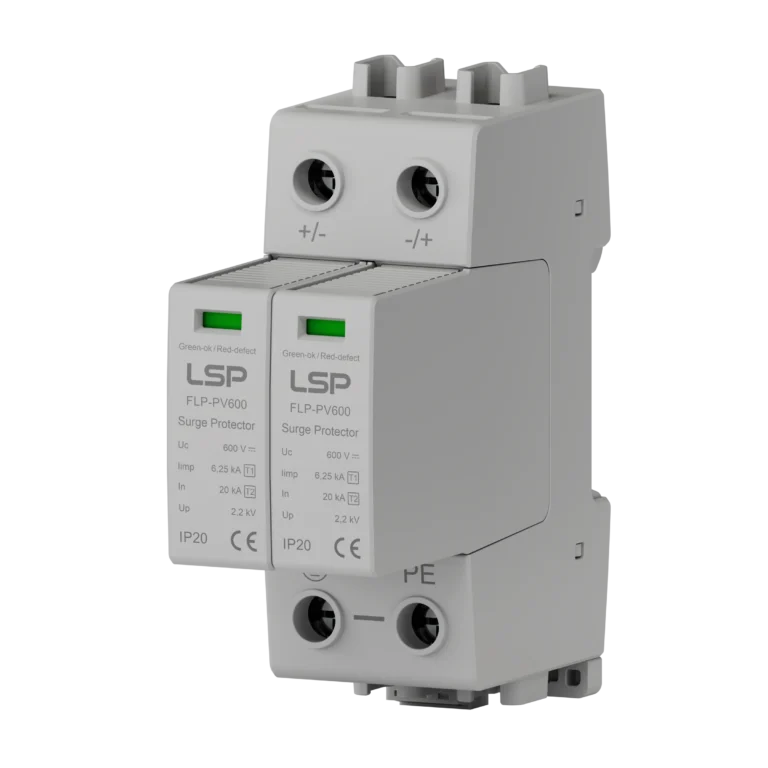

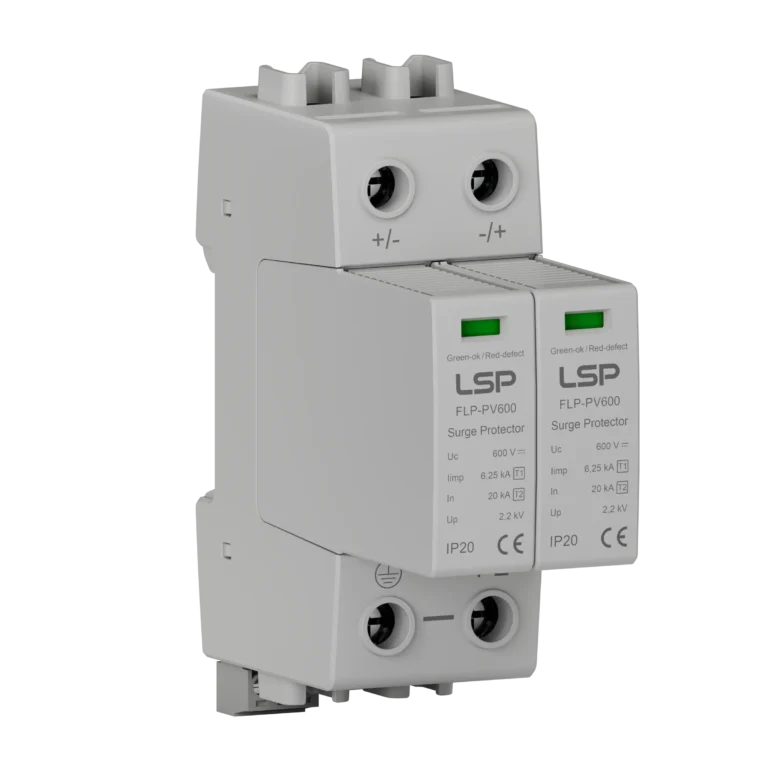

Type 1+2 DC PV Solar Surge Protective Device FLP-PV600/S

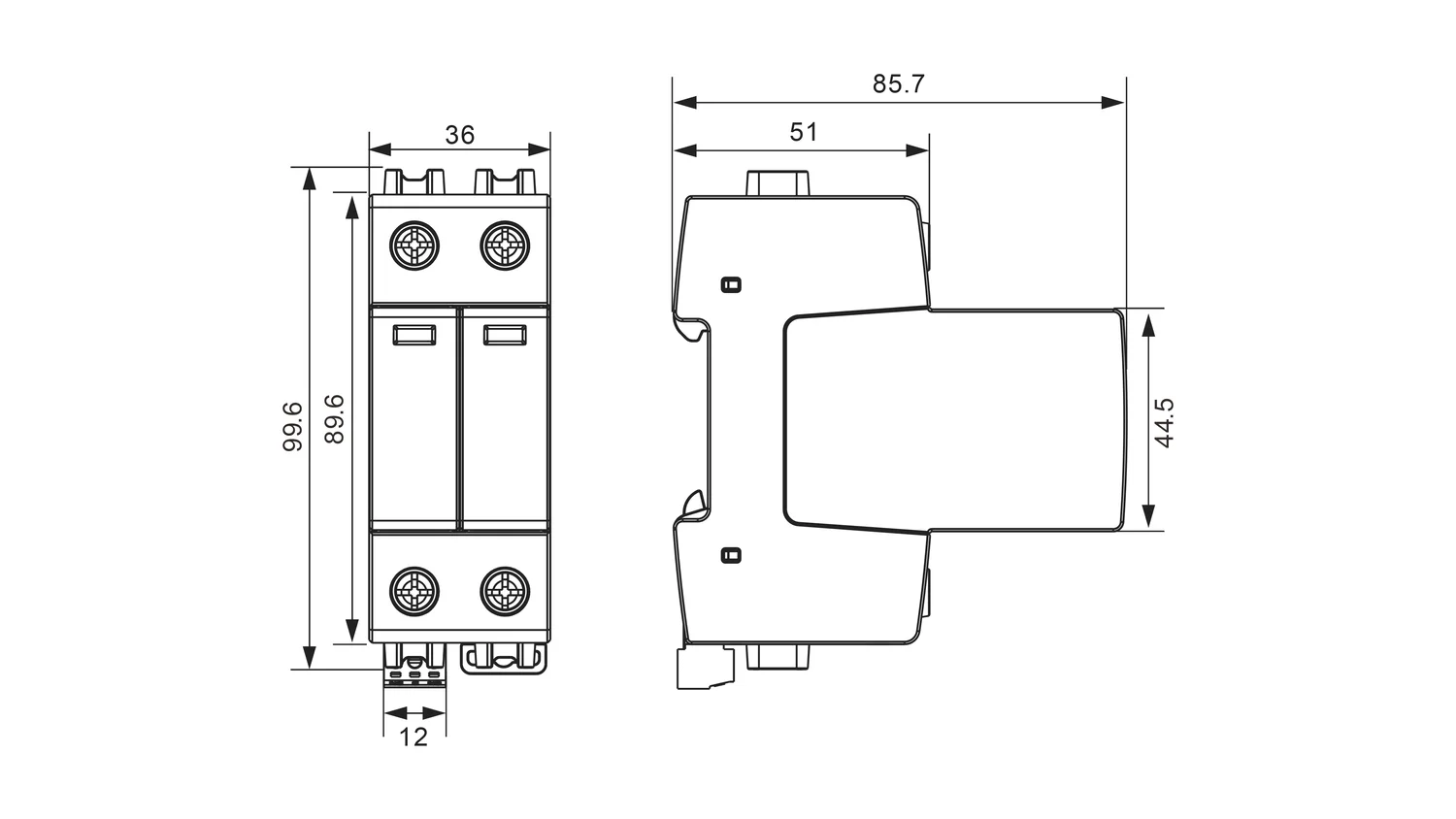

DIN rail installation, for 600V DC power system, high discharge capacity due to Metal Oxide Varistor (MOV)

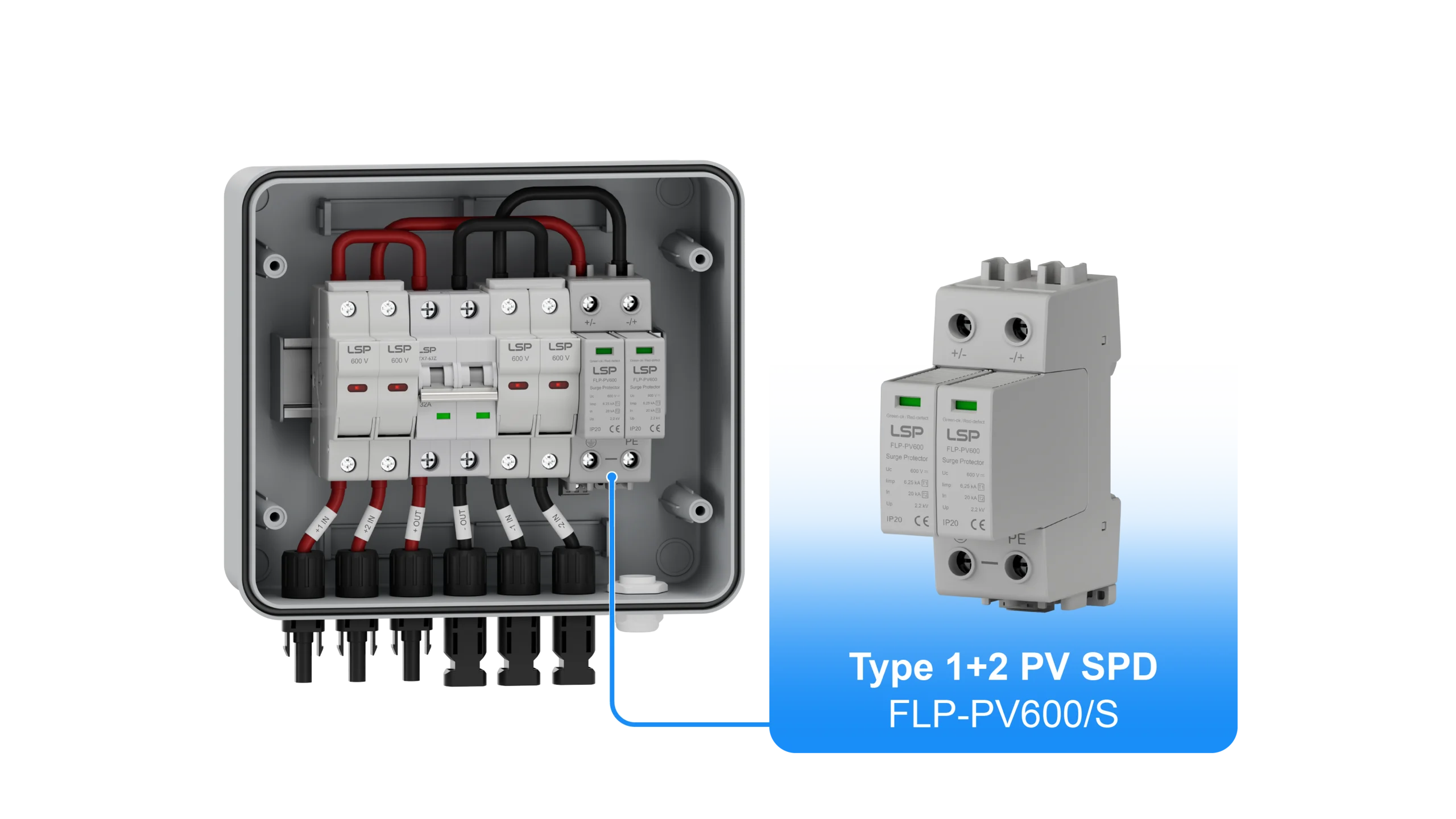

Location of Use: String box, Inverter

Network Systems: (DC+)-PE, (DC-)-PE

Surge Ratings: I_total = 12,5kA (10/350 μs), I_total = 40kA (8/20 μs)

IEC/EN Category: Class l+II / Type 1+2

Protective Elements: High Energy MOV

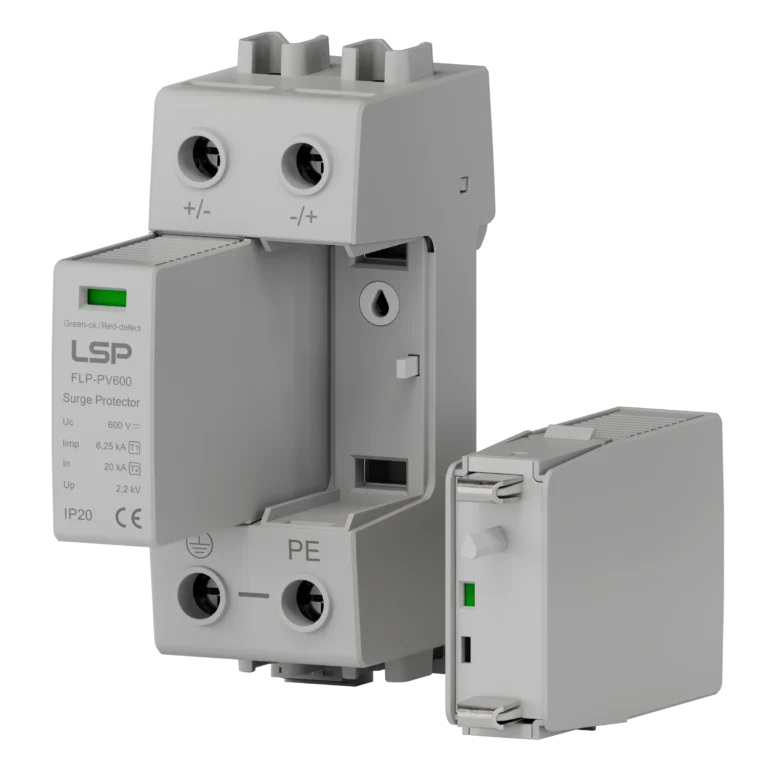

Housing: Pluggable Design

Compliance: IEC/EN 61643-31

Main Specification

Model No.	FLP-PV600/S
	SPD according to IEC/EN 61643-31	Type 1+2 / Class I+II / Class B+C
	Protection mode	Common Mode (CM)

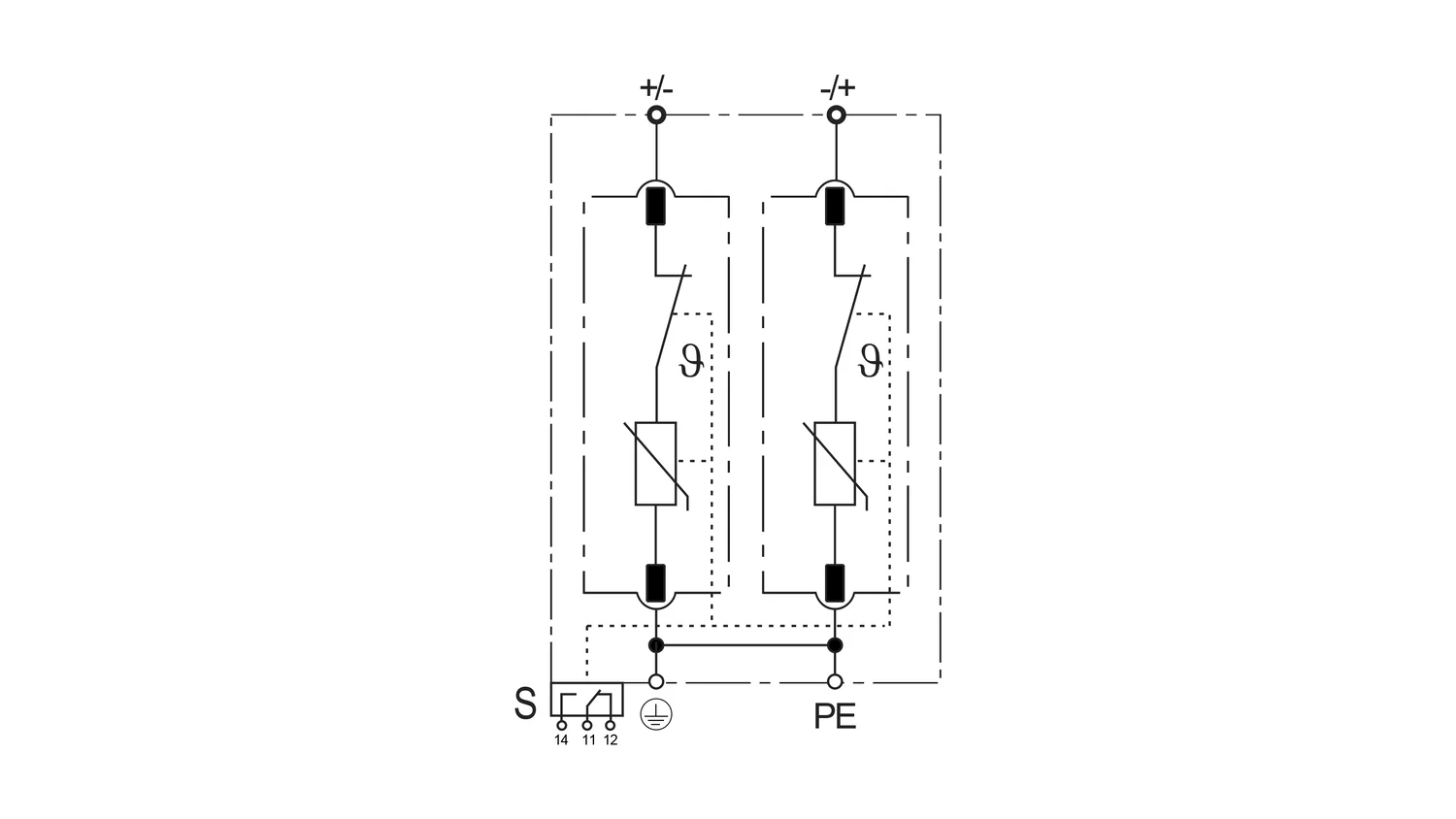

	Connection mode	(DC+)-PE, (DC-)-PE
	Maximum continuous operating DC voltage (DC+)-PE, (DC-)-PE U_cpv	600Vdc
	Maximum continuous operating DC voltage (DC+)-(DC-) U_cpv	-
	Impulse discharge current (10/350 μs) I_imp	6.25kA
	Total discharge current (10/350 μs) I_total	12.5kA
	Nominal discharge current (8/20 μs) I_n	20kA
	Total discharge current (8/20 μs) I_total	40kA
	Maximum discharge current (8/20 μs) I_max	40kA
	Voltage protection level (DC+)-PE, (DC-)-PE U_p	2.2kV
	Voltage protection level (DC+)-(DC-) U_p	-
