Introduction to Surge Protection Devices (SPDs): What They Are and Why They Matter
The advancement of modern technology has greatly improved the way we get energy – electricity is now used in homes, businesses and industries. However, there is a red flag in sight, and that’s the unsuspecting threat known as surge or transient overvoltage. Such threats that involve sudden sparks in potential energy can escalate deeply into dangerous fires, damaging important equipment and data on top of electrical issues. Protectors against surge and overvoltage (SPDs) are one of the unsung heroes of the modern electric world.
Surge protection devices are dynamic devices engineered to provide protection against damaging voltage surges by monitoring electrical systems, wiring, and accessories, including process control systems. Acting as security guards, these devices secure your equipment by diverting the threat by sending excess energy to the ground. This simple solution to SPDs can turn complex power faults into harmless situations; however, they cannot serve as a universal solution for all. They are essential components meant to fight specific circumvents that can induce damages of epic proportions, and prevent downtime. The endless reliance on power in the modern world makes surge protectors pivotal to the advancement in the way we get energy. The circuits that are responsible for the functioning of personal computers, smartphones, and even advanced industrial machinery are very sensitive to changes in energy. The reliance and ability to control their workings makes them invaluable. In fact, a single strike of lightning might be enough to render some of the most powerful electronics useless, and this is where SPDs are heavily valued.
At the other end, even lesser and more periodic spikes as a result of internal switching activities within a building’s electrical system can slowly erode parts which may result in premature failure. SPDs are, without a doubt, crucial long-term investments in infrastructure and security for ensuring reliability, longevity, and durability within the electronic systems of a region’s infrastructure, be it in hospitals depending on life-support systems, data centers with delicate information, or homes safeguarding important appliances and programmable logic controllers in security systems.
The Critical Role of Surge Protection Device Types in Electrical Safety
Although all SPDs aim to mitigate voltage surges, treating all of them equally does not work well in more intricate electrical systems. Different places within an electrical network face different types and levels of surge, which makes the classification of SPDs important for complete protection. Different types of SPDs, just like a multi-layered security system, come together to counter specific surge attributes at various points in the system. If there is no tiered system, gaps are created with the use of one Type of SPD. Some devices may be too sluggish for delicate electronics, whereas others could be inundated with high energy surges.
To enable strategic deployment throughout an electrical installation, SPDs are divided into Type 1, Type 2, and Type 3. Type 1 SPDs provide the first level ofprotection against direct lightning strikes and are installed at the service entrance. These devices typically consist of metal oxide varistors (MOVs), gas discharge tubes (GDTs), or other surge suppression components.Type 2 SPDs are installed downstream, typically at distribution panels, to mitigate residual surges and those generated within the electrical installation. Type 3 surge protection devices are normally installed right before the protected equipment, to provide localized protection for sensitive equipment.These devices work in coordination to progressively dissipate and divert surge energy, thereby protecting equipment from damage and ensuring stable operation of the electrical system.
Other than safeguarding devices, proper SPD use enhances advanced electrical safety by minimizing surge caused overheating fires. SPDs prevent hazardous currents from flowing through the wires and connected devices, avoiding excessive energy diversion, which makes it possible to lower the chance of fire ignition. This form of classifying SPDs is not only a technical categorization but rather an important matter of concern for electrical safety which warrants the protection of both property and life due to extreme effects of electricity surges.
Understanding Surge Sources and Hazards: Why You Need Surge Protection
Voltage surges develop from external and internal sources of power, and these events can involve spikes that may reach thousands of volts. These spikes can be very detrimental to electrical systems and internal and external surge sources make power range protection very important.
Sources of Voltage Surges
- External Surges: Lightning Strikes: Surge thunderstorms, indirect electromagnetic energy traveling through powerful power lines cause enormous damage to connected devices. Infrastructure can be destroyed with even extinct strikes.
- Internal Surges: Electrical Equipment Use: Decreased shifts and increased use of air conditioning and electronic equipment cause indirect expansion. These increases eventually weaken infrastructure, which results in increased frequency of use, which leads to decreased concentration.
- Faulty Electrical Systems and Power Grid Issues: abnormal flow of voltage currents such as open circuits, shifting transformers accompanied by supply flow can occur at spontaneous times. These rise can cause immediate danger to connected machines.
Consequences of Voltage Surges
Surges can be very damaging, resulting in malfunctioning devices with overheated circuits, causing various components to burn out, including fuses. These fires can be very expensive and require large sums of money to fix them. Repeated damaging surges further decrease the lifespan of devices over time and can completely alter files stored lengthwise, making them useless.
Why Surge Protection Devices (SPDs) Are Important
Surge Protection Devices (SPDs) serve the purpose of:
✔ Reducing and redirecting the excess voltage on the devices above.
✔ Stopping expensive repairs and loss of data.
✔ Decreasing the chances of electrical fires as well as safety risks.
Without surge protection, the electrical systems are open to damage, loss of funds, and risks. Choosing the right SPDs guarantees protection on investment over years for homes and businesses.
Classification of Types of Surge Protection Devices: An Introduction to Major Differences
Earlier, I noted that surge protection device types are defined by their physical placement in the electrical system and by their potential to dissipate surge energy to ensure normal operation. The three primary types are type 1 spd, type 2 spd, and type 3 surge protection device. For selecting and implementing effective surge protection measures, understanding the basic differences between these types is fundamental.

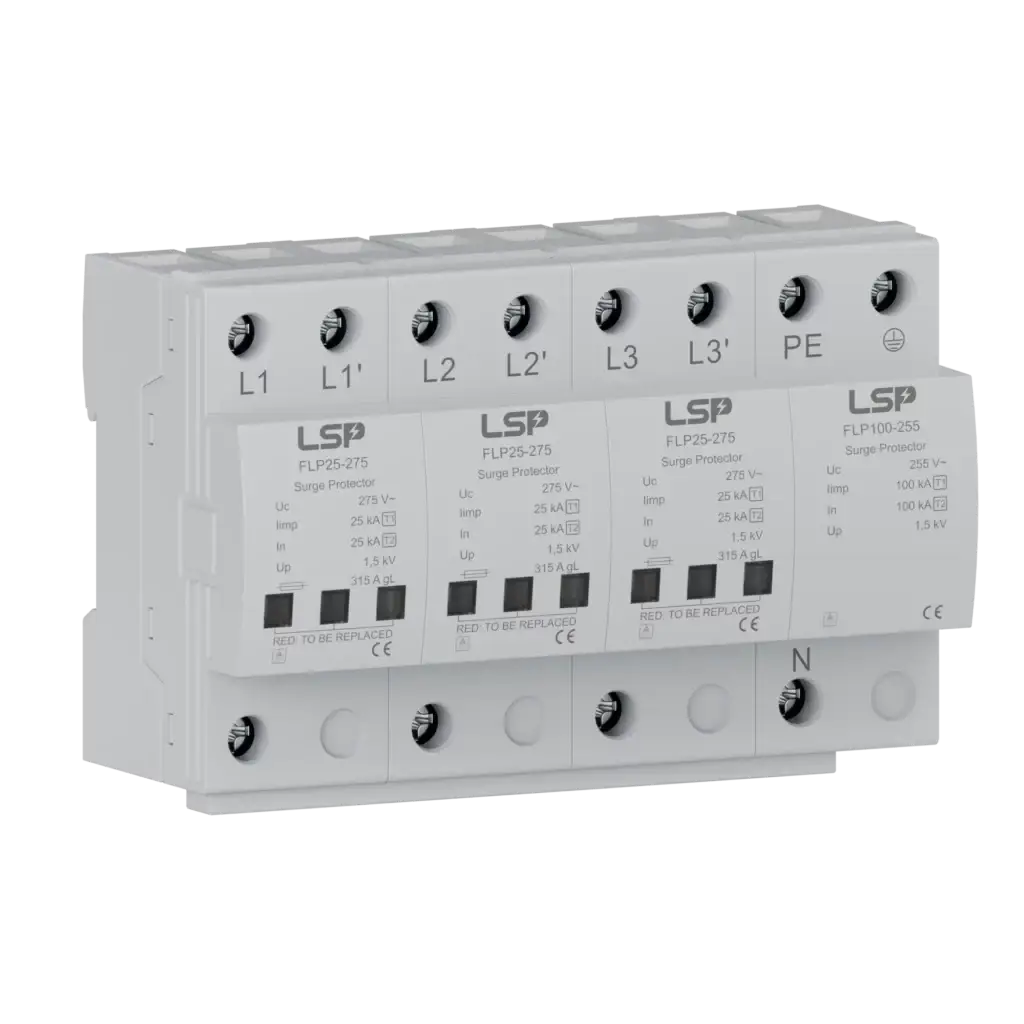

Type 1 Surge Protection Devices: The Basics High-Energy Surge Device in Control
The type of surge protection device is meant to be set up at the service entrance of a building that is ahead of the main circuit breaker on the roadside. To guard electrical installation from powerful surges and electrical impedance, mainly due to lightning strikes, these conductor devices should be utilized. The electrical devices are constructed to endure and channel extremely high impulse currents, often reaching up to tens of thousands of amperes. Type 1 SPD plays a critical role in protecting buildings from high-energy surges caused by lightning.
Consider type 1 SPD as the bouncers of a club that struggle with the toughest and rowdiest customers. In other words, they are the very first defense against the most dangerous surge threats. Because of theirrobust construction and high discharge capacity, they can absorb and redirect lightning surge safely without letting it cause damage to the internal electrical system of the building.
As type 1 surge protection devices are designed to withstand exceptionally high energy, they are normally placed in various applications, including commercial and industrial sites or residential houses in high risk lightning areas, typically at the secondary of the service transformer. Usually, they are placed at the main busbars or terminals of the electric panel. Bear in mind that while type 1 SPDs do provide protection from external surges, they are not enough to protect sensitive electronic equipment for bursts of energy from within. This is where other types of SPDs come.

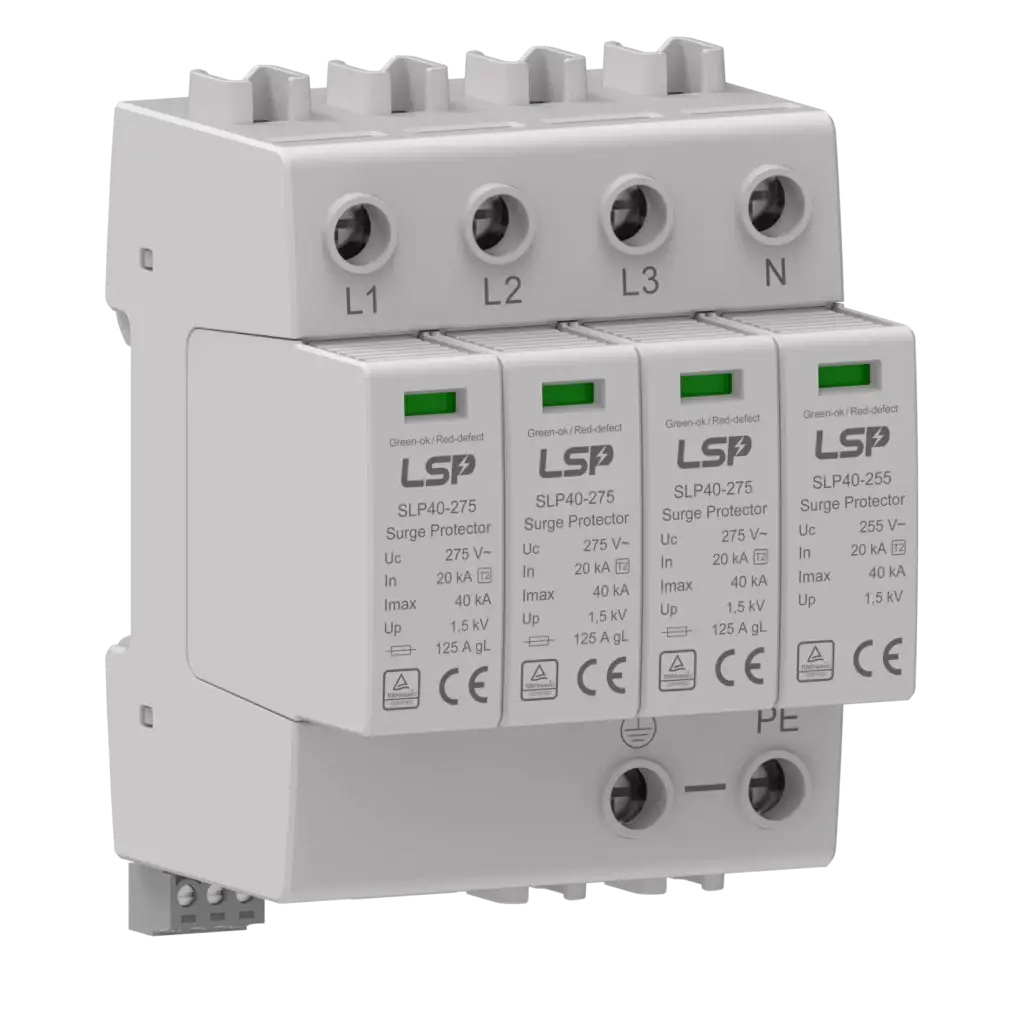

Type 2 Surge Protection Devices: Protecting Distribution Systems from Overvoltages
Type 2 surge protection devices (SPDs) are located downstream from the roadside type one surge protective devices which are located at the service entrance. They are usually placed in the main distribution panel or the sub-panels. Their function is to mitigate the unprotected residual surges that may have passed though the type one surge protective device, and also surges sustained from within the electrical system of a building from switching actions or electrical equipment usage.
To continue our example, the type 2 SPDs, also known as transient voltage surge suppressors, are comparable to stewards that patrol within the venue and handle any issues that have perhaps already breached the primary barrier. They combat the overvoltages remaining after the level one surge protection devices have completed their functions, and those that stem from within the system. Type 2 surge protection devices have relatively less discharge capacity to protect from higher levels of surges as are mitigated by type one devices; however, type 2 SPDs are more responsive to lower level surges and comply with ANSI standards. They are designed to clamp down on overvoltages instantly before the overvoltage can damage the device. These devices are most commonly used to protect branch circuits and the equipment connected to them in residential, commercial, and industrial applications.

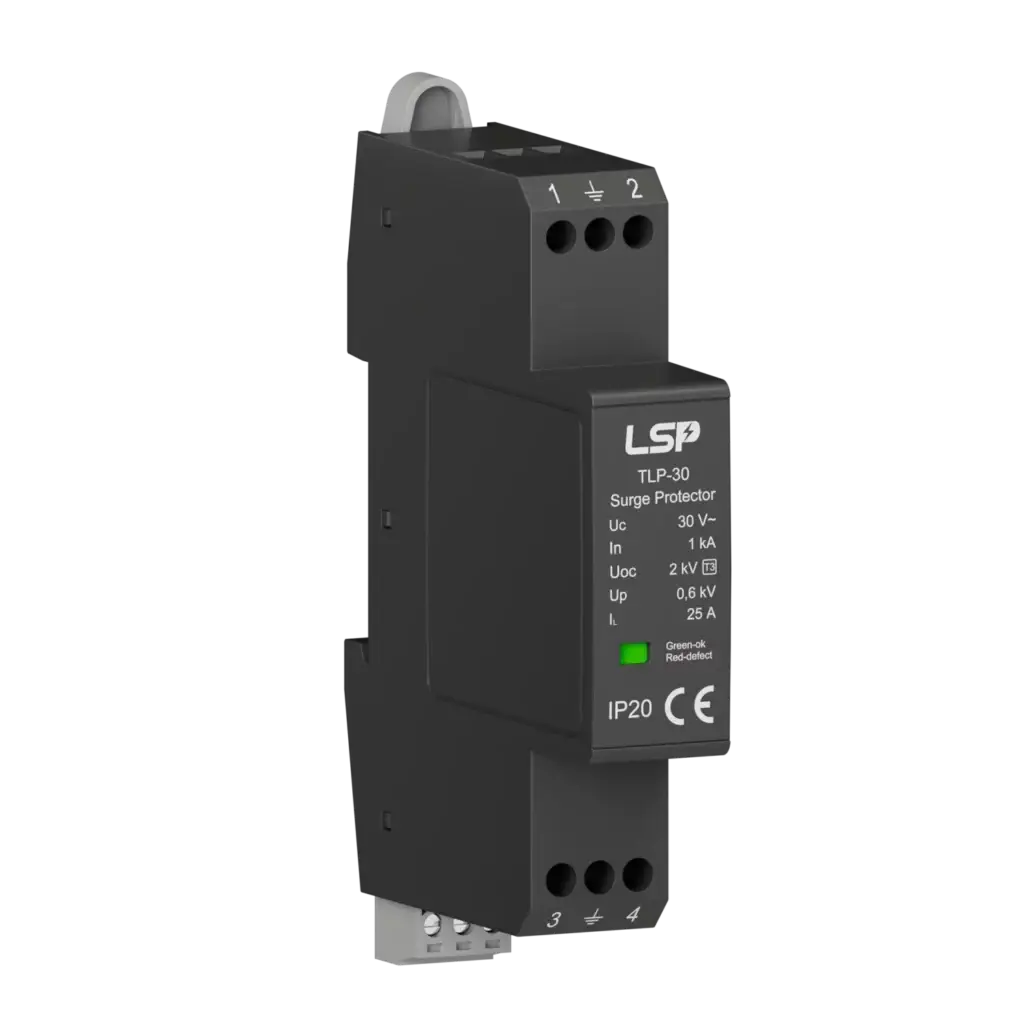

Type 3 Surge Protection Devices: Protecting at the Point of Use
Type 3 SPD is the last tier within the comprehensive surge protection approach, and is designed to surges closest to the devices it is meant to protect. For this reason, these types of devices are usually located within or very close to electronic equipment, or within the socket in the wall.
Using the analogy of a venue, type 3 surge protection device are personal bodyguards assigned to certain VIPs. Personal bodyguards provide protection to a certain degree, but can protect against immediate threats. These type of protective devices are capable of managing small localized surges that are likely to occur near the vicinity of the equipment, and which have already exceeded type 1 spd and type 2 spd.
Compared to Types 1 and 2, surge protection devices (SPDs) Type 3 have the lowest discharge capacity, but offer the most sensitive protection in joules. They are most useful in averting damage to delicate electronics–computers, televisions, audio visual equipment, and medical devises–that have low tolerance to even minute voltage fluctuations. However, Type 3 cannot do much on its own. SPDs alone do not provide high amplitude surge protection or the ability to withstand very high energy surges on their own. They are the last layer of protection in a multi-stage surge protection system where the first two layers are Type 1 and Type 2 SPDs. If there is no adequate upstream protection, then relying only on Type 3 SPDs can lead to greater risk of damage by large surges beyond their protective capability. Hence, Type 3 SPDs must always be incorporated into a broader surge protection strategy instead of being used autonomously as the first line of defense.
SPD Type 1 vs Type 2 vs Type 3
What is the difference between type 1, type 2, and type 3 surge protection devices?
| Surge Protection Device Types | Category | Waveform | Maximum Discharge Current (Imax) | Voltage Protection Level (Up) Rating | Location of Installation | Application & Coverage |
| Type 1 | Primary | 10/350μs | 50 kA | ≤ 2.5 kV | Main service entrance or source of power supply | For large facilities and high-threat locations |
| Type 2 | Secondary | 8/20μs | 40 kA | ≤ 1.5 kV | Sub-distribution panel or electrical panel | For facilities of medium size |
| Type 3 | Point-of-use | Combination of voltage waves (1.2/50 μs) & current waves (8/20 μs) | 10 kA | ≤ 1.0 kV | Outlets or near the specific terminal equipment. | For certain devices and circuits |
To sum it all up, the tear down classification of spd types within type 1 spd, type 2 spd, and type 3 surge protection device is based on the position they occupy within the electric system protection circuitry and their working capacities in regards to higher energetic level of surges. A single surge protection device is most often used in combination with the other two types of devices in which case ensure coverage of all imposed conditions on the electrical installation and interaction with the devices.
Key Parameters to Differentiate Surge Protection Device Types: A Technical Deep Dive
Although the site of installation gives a general idea of the various types of SPDs, many important technical levels differentiate them further and are very essential for the right choice and application. Having knowledge of these specific parameters makes it easier to choose the most suitable electrical SPD needed.
| Parameter | Description | Relevance to SPD Types |
| Maximum Continuous Operating Voltage (Uc) | The highest voltage the SPD can continuously withstand without triggering. It must be higher than the nominal voltage of the electrical system to prevent nuisance tripping or premature failure. | Relevant for all SPD types to ensure compatibility with the electrical system. |
| Voltage Protection Level (Up) | The maximum voltage that the SPD allows to pass through to the protected equipment during a surge. Lower values indicate better protection. | Critical for all types, especially for protecting sensitive electronic equipment. |
| Maximum Discharge Current (Imax) | The highest peak current the SPD can safely discharge a single time without failure. | Mainly applicable to Type 2 and Type 3 SPDs, which handle lower to medium energy surges. |
| Impulse Current (Iimp) | The peak current of a specific impulse waveform (10/350 µs) that the SPD can safely discharge multiple times. | Essential for Type 1 SPDs, which must handle high-energy lightning surges. |
| Nominal Discharge Current (In) | The peak current of an impulse waveform (8/20 µs) that the SPD can safely discharge multiple times. | Particularly important for Type 2 SPDs, indicating their ability to handle repetitive surges. |
| Short-Circuit Current Rating (SCCR) | The maximum fault current the SPD can withstand without failing or creating a safety hazard. | A crucial safety consideration for ensuring SPD resilience under fault conditions. |
| Response Time | The time it takes for the SPD to start conducting and diverting surge current after exceeding the voltage threshold. Faster response times provide better protection. | Important for all SPD types, as quicker reaction times improve surge mitigation. |
| Type of Protection | Defines whether the SPD protects all modes (line-to-ground, line-to-neutral, and neutral-to-ground) or specific modes. | Selection depends on the electrical system configuration and the sensitivity of the equipment being protected. |
Fulfilling these technical pointers is important for selecting the specific SPD type and rating for a specific application. Effective consultations with qualified electrical specialists should be done in most cases so that the chosen SPDs accomplish the defined goals of the electrical system, and also adequately protect the joined equipment.
Selecting the Right Surge Protection Device Type: An Application-Based Guide
Selecting the right Surge Protection Device (SPD) is critical for effective surge protection. If there is a mismatch between the SPD and the application or type functionality, failure or too little protection may result. Below is a simple guide which allows selection of SPDs based on application:
| Application | Type 1 SPD (Service Entrance) | Type 2 SPD (Distribution Panel) | Type 3 SPD (Point-of-Use) |
| Residential | For lightning-prone areas, installed at main service entrance | At main and sub-panels for circuits and appliances | Power strips for electronics (computers, TVs, consoles) |
| Commercial | Protect entire facility from external surges | In distribution boards and power distribution panels for lighting, HVAC, outlets | For POS systems, office computers, communication equipment |
| Industrial | Handle high-energy surges from grid/storms at service entrance | In MCCs and panels for sensitive equipment (PLCs, CNCs, robotics) | At control panels for delicate electronics |
| IT & Telecommunications Equipment | — | In server rooms to protect sensitive data storage and network equipment | At workstations for individual devices |
| Medical Equipment | — | High-reliability SPD for essential medical devices | For localized, critical medical electronics |
| Renewable Energy (Solar, Wind) | For lightning-prone areas, specialized SPD for grid connection | SPD for both AC and DC sides of installations | — |
| Environmental & Code Factors | Recommended in high-lightning regions | Ensure compliance with local codes for internal distribution protection | Ensure compliance for sensitive equipment |
By consulting engineers or specialists on the matter, optimal solutions can be achieved concerning the variety of sensitive devices and their corresponding sources of surges. These recommendations allow an accurate type of SPD to be chosen based on the equipment damage and overall system lifetime. To understand more about what SPD is and how it works, check out our complete guide on what is spd in electrical.
