Type 1 AC Surge Protective Device FLP25-275/3S+1

TUV, CB, and CE certifications

Three Phase

High discharge capacity due to heavy-duty zinc oxide varistor / GDT combination

Location of Use: Main Distribution Boards

Network Systems: TT, TN-S

Mode of Protection: L-PE, N-PE

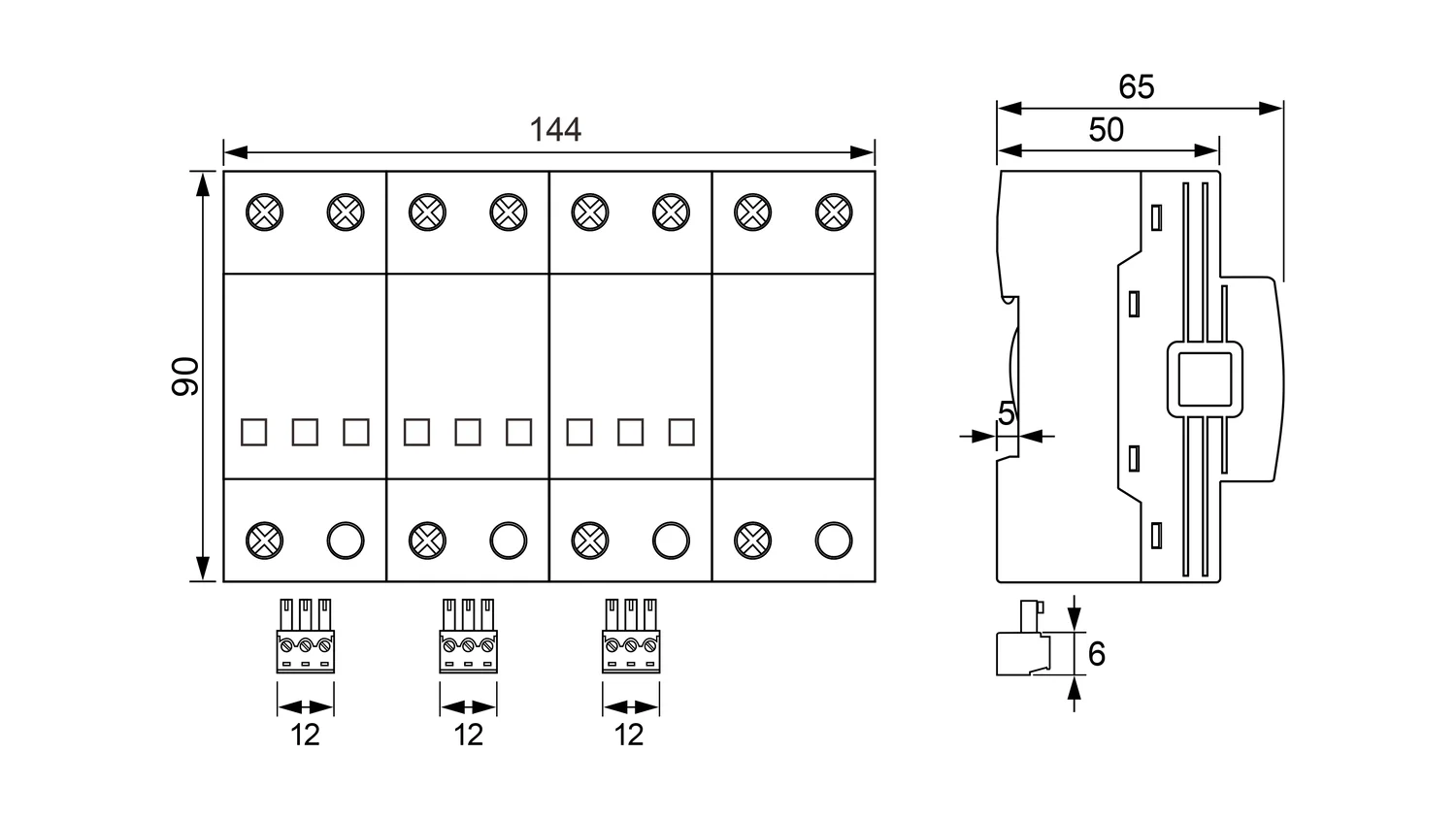

Housing: Monobloc Design

Compliance: IEC 61643-11:2011, EN 61643-11:2012

Specification

Nominal voltage U_n	230V
	Max. continuous operating voltage U_c	275V
	Type	Type 1 / Class I / Class B
	Impulse discharge current (10/350 μs) I_imp	25kA @ Type 1
	Nominal discharge current (8/20 μs) I_n	25kA @ Type 2
	Maximum discharge current (8/20 μs) I_max	100kA @ Type 2

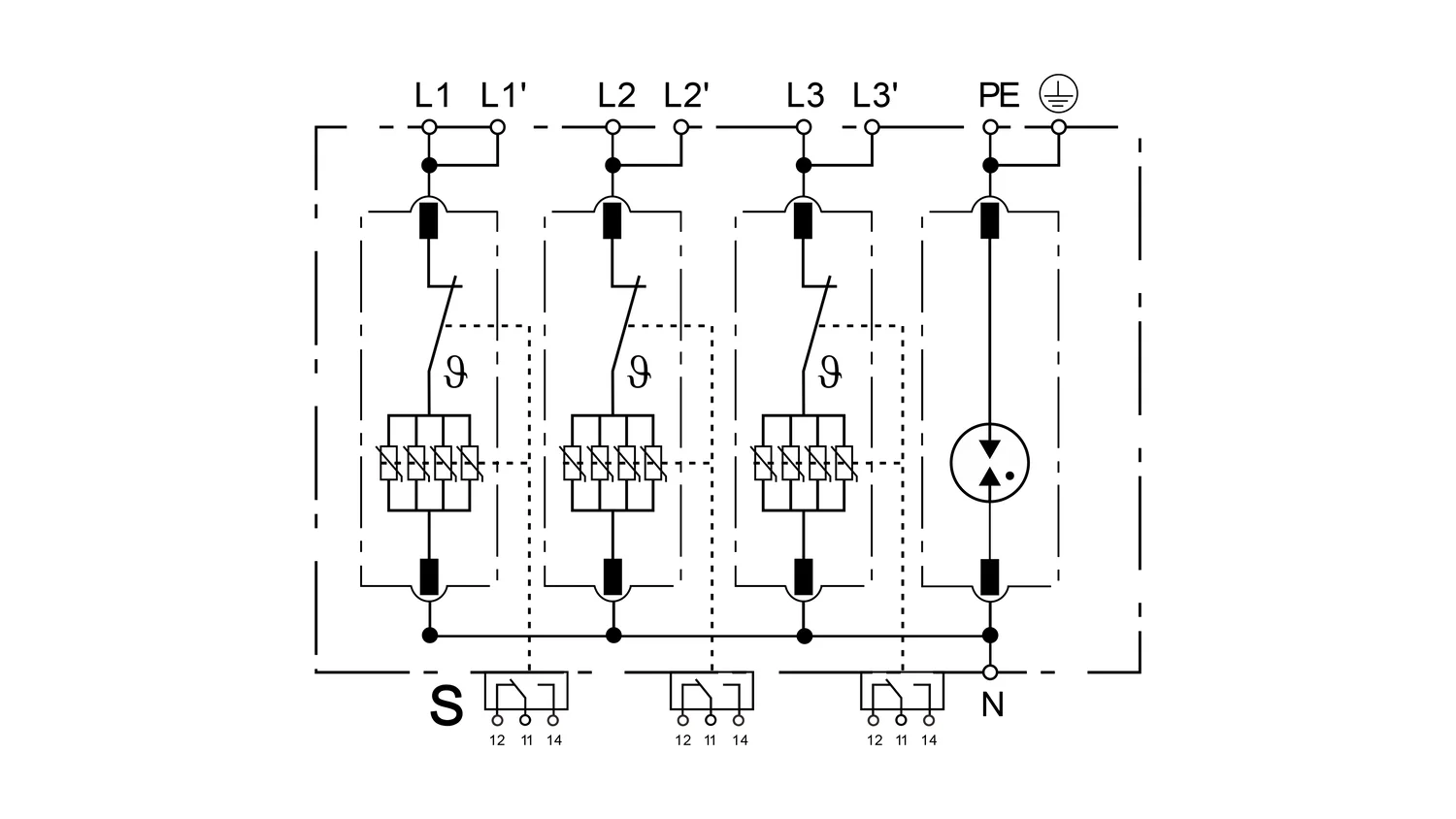

	Protective elements	Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT)
