What is a Solar SPD and Why is It Non-Negotiable?
The solar photovoltaic (PV) system is an efficiency model in the renewable energy sector, a silent, robust solar system that transforms sunlight into electricity. We observe the solar panels and the solar panel inverter, and we enjoy the savings in utility bills. However, this useful photovoltaic system has a weakness that is not usually considered until a breakdown happens. This susceptibility is to transient overvoltages, also referred to as electrical surges or voltage spikes. The Solar Surge Protection Device (SPD), a critical protective device, is the necessary, non-negotiable device that guards against this menace.
A Solar SPD, effectively a surge protector designed for DC voltage systems, is not an optional accessory, to be clear. It is an essential part of a secure, long-lasting, and dependable solar energy system. Its primary function is to sense and suppress transient overvoltages—the high-energy, short-duration spikes in electrical voltage that can damage or destroy the delicate electronics and circuit boards of a PV system. The SPD reacts within nanoseconds when a surge happens. It safely redirects surplus, destructive energy to the grounding system, away from the protected circuit and vital electrical equipment. By so doing, the DC SPD can self-sacrifice to save the more important parts of the system, preventing high replacement costs and significant system downtime.
The need for an SPD is based on the physicality of a solar installation. By design, these systems are large, interconnected networks of conductive material, frequently placed in exposed areas such as rooftops or open fields, making them a target for lightning strikes. This renders them very vulnerable to electrical interference caused by the atmosphere and the power supply from the grid. The inverter, which is a complex technology and is usually the most costly single component of the solar power system, is especially vulnerable. In the absence of an SPD, a major surge event may result in a catastrophic failure: ruined inverters, damaged solar modules, and a system that is totally unusable. The replacement of these parts is much more expensive than the initial investment in an adequate surge protection plan. Thus, viewing the surge protective device as an inalienable component of the system is the initial important step to the long-term sustainability and energy efficiency of your solar power investment.
The Hidden Threats: Where Do Power Surges Come From?
The electrical hazards to your solar system are usually unseen and come unannounced. Power surges, these short but intense bursts of electrical energy, have a number of causes, both external and internal to the property. These sources are important to understand in order to realize the ever-present danger to your investment, especially under harsh conditions.

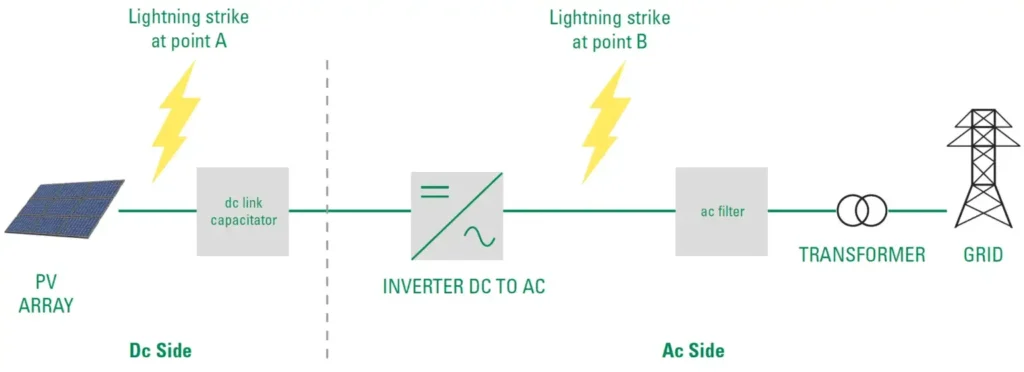

- Direct Lightning Strikes: Direct lightning strikes are the most powerful and widely recognized source of surges, capable of injecting millions of volts and hundreds of thousands of amperes into a PV system during a direct hit or even a nearby strike; such an influx can instantly vaporize components and cause catastrophic failure, and although these events are statistically rare, their extreme destructive potential demands the implementation of serious lightning protection measures.
- Indirect Lightning Strikes: Far more common than direct strikes, indirect lightning strikes occur when lightning hits the ground, a utility pole, or nearby structures — even as far as a mile away. Such strikes generate strong electromagnetic fields that induce transient overvoltages in the conductive loops of a PV array. These surges can then travel along both DC and AC cabling, posing a serious threat to sensitive electronics on both sides of the system. As a result, indirect strikes are the most widespread cause of lightning-related damage to photovoltaic systems.
- Utility Grid Disturbances: The utility grid constantly experiences transient overvoltages from various causes, such as the switching of large industrial motors, adjustments of capacitor banks, or electrical faults occurring elsewhere on the network. These disturbances are directly transmitted to any connected PV systems. While typically smaller in magnitude but occurring more frequently, such surges gradually degrade sensitive electronic components, ultimately leading to premature failure over time.
- Internal Electrical Surges: They are caused by the work of on-site equipment like air conditioners, pumps, or elevators. These surges are frequent and close to sensitive devices, although they are usually of lower magnitude. They may over time overload inverter control circuits, tracker systems and other sensitive electronics, shortening their life.
A thorough surge protection plan should thus consider threats that come in all directions: lightning, the utility grid, and inside the building the system serves.
The Core of Protection: How to Select the Right Solar SPD
The selection of an SPD is not a universal process. It is an exact technical choice that needs close attention to the particular electrical properties of a photovoltaic solar system and the environment in which it is installed, including prevailing weather conditions. The choice of the right device, often based on metal oxide varistor (MOV) technology, is the difference between effective protection and the illusion of security.
| SPD Type (Class) | Installation Location | Function & Application |
| Type 1 (Class B) | Service entrance (line side of main service disconnect) | Withstands partial lightning currents from direct strikes; essential for high-exposure areas |
| Type 2 (Class II) | Load side of overcurrent protection (e.g., DC combiner box, AC side of inverter) | Protects against induced surges and switching transients; most common in solar installations |
| Type 3 (Class III) | Close to sensitive equipment | Provides finer, localized protection against residual surges |
| Layered Protection | Multiple locations (combination of above types) | Ensures comprehensive surge protection by addressing different surge sources and levels |
Once you have chosen the right type of SPD, it is also crucial to consider the most important performance parameters that will define how well the device will safeguard your system. Such critical aspects are the levels of voltage protection, current handling capabilities, and surge endurance.
Important Considerations:
- Voltage Protection Level (Vp)
- The highest voltage that the SPD will permit to be conducted on protected equipment.
- The lesser the Vp, the more the protection.
- In high-voltage PV systems, the Vp must be much less than the voltage withstand rating of the components being protected.
- Protects positive and negative DC lines by ensuring that SPD clamps surge voltages to a safe level.
Maximum Continuous Operating Voltage (MCOV)
- It should be greater than the normal operating voltage of the system.
- Avoids triggering or degrading SPD during normal operation.
Nominal Discharge Current (In)
- The highest current is that the SPD can safely discharge 15 times under standardized conditions.
- Reflects the durability of the device and its resistance to frequent surges that occur during switching activities of the grid.
- The greater the In rating, the longer lasting the SPD.
Maximum Discharge Current (Imax)
- The maximum single surge current (8/20 us waveform) that the SPD can sustain without failure.
- Symbolizes the survivability of the SPD to high, single-event surges like indirect lightning.
- An important parameter of AC and DC surge protection in high-risk lightning regions.
Lastly, make sure that the selected DC surge protection device is certified and meets the established industry standards, including UL 1449 in the U.S. market and IEC 61643-31 (for PV systems) in the global market. These certifications give independent assurance that the device has been thoroughly tested and will work as per its specifications. The basis of a good surge protection strategy is to make an informed decision on these technical merits.
Best Practices for Solar SPD Installation
In order to maintain the constant and stable functioning of a solar power system, the proper installation of surge protective devices (SPDs) is as important as the choice of the type of SPD. An SPD that is well chosen can be made useless, or even hazardous, when improperly installed. The quality of installation is very sensitive to the performance of surge protection and there are important principles that should be adhered to in order to obtain effective protection.
1. Significance of Correct Installation
The success of an SPD depends on its installation. Improper installation adds extra inductance to the wiring, which can drastically reduce the capability of the SPD to clamp overvoltages. Actually, every inch of conductor length adds to the voltage drop in the event of a surge, and this can lead to very high let-through voltages, which can be dangerous-cancelling out the protection provided by the SPD.
2. Make Cable Lengths Short and Straight
Among the most significant installation regulations is to reduce the length and looping of the wires between the SPD and the protected circuit and grounding system. Long or coiled leads introduce inductance which may increase the clamping voltage of the SPD in a fast-rising surge. A rule of thumb is to ensure that the total length of the lead (line + ground) is less than 50 cm (about 20 inches).
3. Grounding: The Most Important Connection
The SPD operates by redirecting surge current to ground safely. Thus, the SPD should be directly connected to the main system ground with a low-impedance connection. This ground reference must be shared by all bonded parts of the PV system, such as module frames, racking, and inverter chassis.
A bad or resistant ground path may not allow the surge to dissipate, and it may find other, and usually destructive, paths through sensitive equipment.
4. Strategic SPD Placement
It is necessary to place SPDs correctly in DC and AC parts of the system. SPDs should never be placed downstream of the equipment they are supposed to protect. They are located according to the voltage levels, the length of the cable, and the system design. Follow the recommendations below on common PV installations:
| Location | Cable Length | SPD Type |
| PV Modules & Combiner (DC side) | < 10 m | Type 2 |
| PV Modules & Combiner (DC side) | > 10 m | Type 2 (at both panel & inverter) |
| Inverter DC Input | > 30 m from combiner | Required by NFPA 780 12.4.2.3 |
| Inverter AC Output | n/a | Type 2 |
| Main Distribution Panel (AC) | n/a | Type 2 |
| Lightning Rod (Mainboard) | n/a | Type 1 (or Type 2 if Ng > 2.5 with overhead lines) |

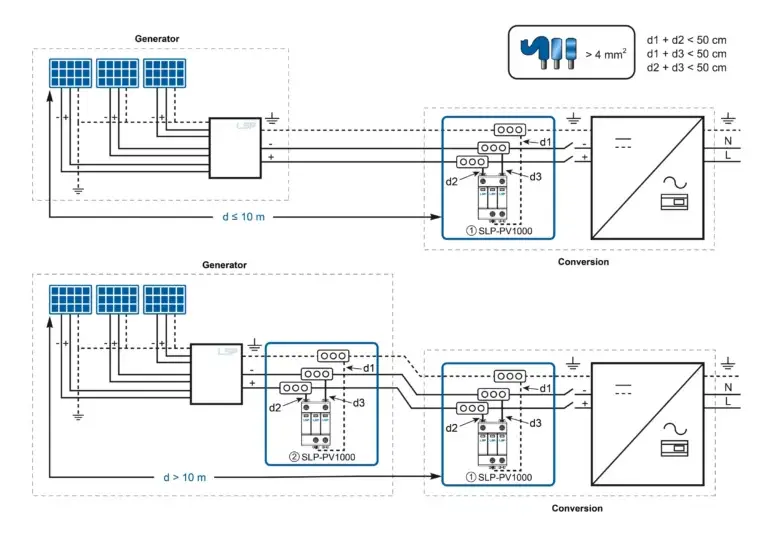

5. Cable Length Based Number of SPDs
The distance between the solar panels and the inverter determines the number of SPDs required on the DC side:
- <= 10 meters: A single SPD is adequate, mounted at the inverter.
- 10 meters: Two SPDs are needed, one at the panel end and one at the inverter.
- 30 meters: Extra SPD at the DC input of the inverter is needed (according to NFPA 780 12.4.2.3).
This provides surge protection at both ends of long cable runs, so that surge energy does not propagate freely between components.
6. Select the Appropriate SPD Specifications
Each SPD in a solar system must be rated accordingly to:
- Maximum Continuous Operating Voltage (Uc)
- Voltage Protection Level (Up)
- Nominal Discharge Current (In)
The use of devices with the right ratings will guarantee compatibility with the voltages of the system and anticipated surge conditions.
Conclusion
*LSP provides expert SPD installation guidelines for solar applications
The effectiveness of a solar SPD in safeguarding your system is directly proportional to its installation. Shorter, direct cable runs, good grounding, proper location, and compliance with standards such as NFPA 780 are not optional, they are mandatory. These best practices will help you to ensure that your solar power system is safe and can be depended upon during surge events. Understanding how do solar farms work offers deeper insights into applying DC SPD protection effectively.
LSP: Your Trusted Partner for Solar SPD Protection
At LSP, we understand the unique demands of solar power systems and have engineered our SPDs to meet those challenges head-on. Solar environments are often exposed to intense UV radiation, humidity, and frequent lightning activity—conditions that can quickly degrade standard protection devices. That’s why our products use sealed MOVs to resist moisture, reinforced flame-retardant plastic (PA6+GF30%) for high thermal and UV stability, and GDT-enhanced architectures to absorb stronger surges, especially on sensitive or ungrounded systems. Whether it’s a Type 1+2 SPD for lightning-prone regions or a 3+1 modular setup popular in European PV arrays, our solutions are tailored for solar-specific applications.
Performance and durability are non-negotiable in solar SPD protection—especially in remote or unmanned installations where failure is costly. Our devices are rigorously tested to withstand 8/20µs impulses up to In=20kA (5 cycles) and Imax=40kA (1 cycle) without significant parameter drift, ensuring years of reliable service. Internally, we use a proprietary thermal disconnection mechanism developed over 3 years, which not only isolates arc faults but also minimizes fire risk—an essential safety measure for rooftop PV systems. Additionally, our thickened metal terminals (8mm x 0.8mm) ensure superior current-handling capacity, critical when managing sudden lightning-induced surges on long DC cable runs.
Customization is key in solar deployments, and we make it easy. We support 1+1, 2+0, 3+1, and 4+0 configurations to suit both single-phase and three-phase PV setups, while also offering design adaptations like extra GDTs for sensitive instrumentation, custom branding, and certification assistance (TUV, CB, CE) for fast market access. Even with no minimum order quantity, we guarantee consistent quality backed by ISO9001 standards and a 5-year warranty. With global support, fast delivery, and deep industry know-how, LSP is not just a supplier—we’re your trusted partner in building resilient, long-lasting solar energy systems.
Checklist: Is Your Solar PV System Adequately Protected?
Pause to assess the security of your system. Potential vulnerabilities can be identified through a simple review. This checklist can be used as a basis for a discussion with your installer or a surge protection specialist.
- [ ] DC Side Protection: Does a Class II (Type 2) DC SPD protect the DC lines and inputs of the solar panel inverter? Is it located in the combiner box or at the inverter itself to handle the high DC system voltages?
- [ ] AC Side Protection: Does your solar installation have a Type 2 SPD for AC protection at the output of the inverter? Is it at the inverter or at the main service panel connection point to protect the power supply?
- [ ] Service Entrance Protection: For a PV array in a high-risk location, is a Class B (Type 1) SPD installed at the main service entrance to deal with large voltage surges from the grid or nearby lightning strikes?
- [ ] Proper Specifications: Are the surge protective devices chosen with the correct Voltage Protection Level (Vp), Nominal Discharge Current (In), and Maximum Discharge Current (Imax) for your particular solar power system and location?
- [ ] Standards Compliance: Do all installed SPDs, including the core metal oxide varistor components, meet accepted standards such as UL 1449 and/or IEC 61643-31?
- [ ] Installation Quality: Are the connecting lead wires to all SPDs short, straight and direct (preferably less than 50cm in total) to avoid compromising the protected circuit?
- [ ] RobustGrounding: Is the SPD connected to a proven, low-impedance grounding system that is common to the entire solar panel array?
- [ ] Data Line Protection: Does your system have data or communication lines that are used to monitor the control circuits or tracker controls? Are these lines also protected with suitable data line SPDs? This is a common weakness that is often ignored in unprotected PV systems.
If you have answered “No” or “I don’t know” to any of these questions, your solar system can be seriously vulnerable. It is an indication to look deeper and to strengthen your defenses before a transient overvoltage event compels the matter and leads to high replacement costs and system downtime. Investing in the right dc spd for solar is a critical step to maximize your investment.
Conclusion
The adoption of solar power is a significant step toward energy independence and environmental responsibility. It is an investment in a cleaner future and a more efficient economy. But like any valuable asset, the electrical equipment must be protected. The Solar Surge Protection Device is not a luxury; it is the essential component that stands between the reliable operation of your photovoltaic solar system and the destructive forces of transient overvoltages. A proper lightning protection strategy, incorporating devices for both the DC side and AC side, provides protection against both high-energy atmospheric events and the more frequent, lower-level electrical surges originating from the power grid.
By understanding the threats, selecting the correct devices like a DC surge protector based on sound technical principles, and insisting on a meticulous, professional installation, you elevate your solar PV system from a collection of components into a resilient, long-lasting power source. This ensures that your investment in solar energy continues to perform, produce, and provide value for years to come, secured by the knowledge that its critical protective systems are in place and ready to act against any voltage spikes. At LSP, we specialize in surge protection tailored for solar applications—engineered for harsh environments, certified for global markets, and backed by over a decade of experience. With no minimum order quantity, fast delivery, and full customization support, we make it easy to integrate high-performance SPD protection into any solar project. Partner with LSP, and protect your PV investment with confidence.
