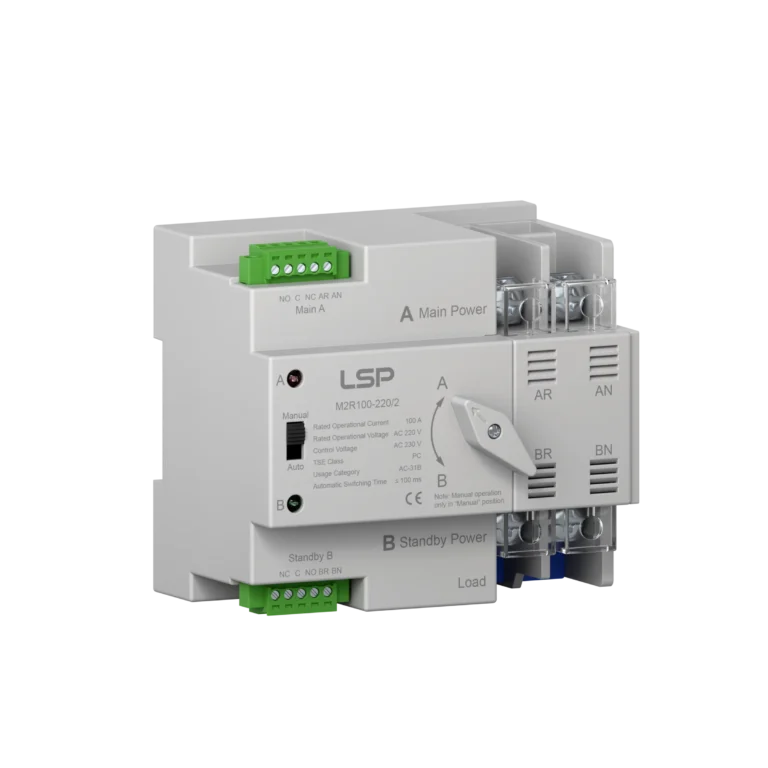

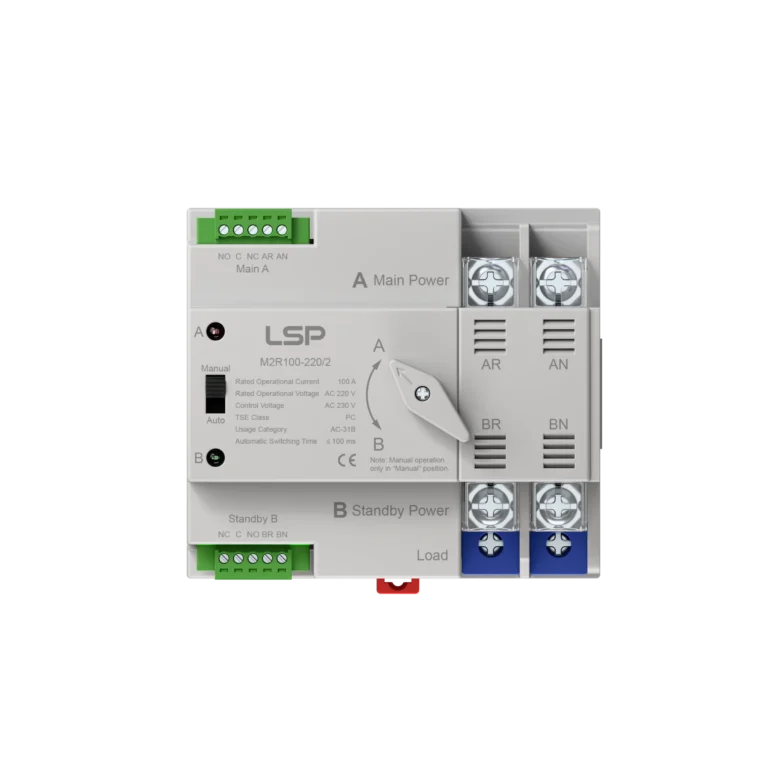

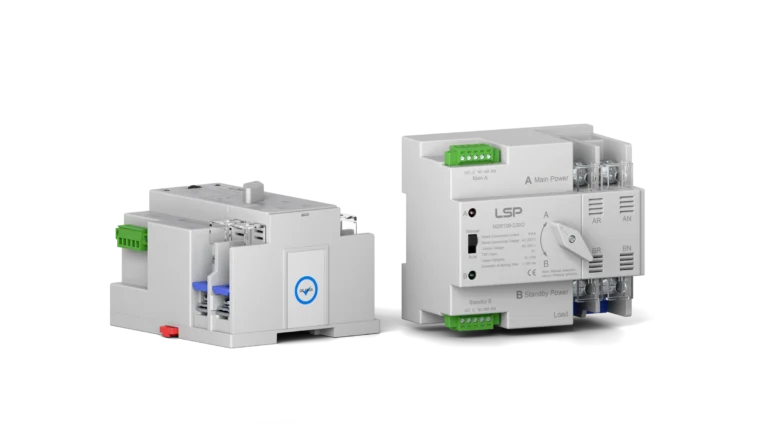

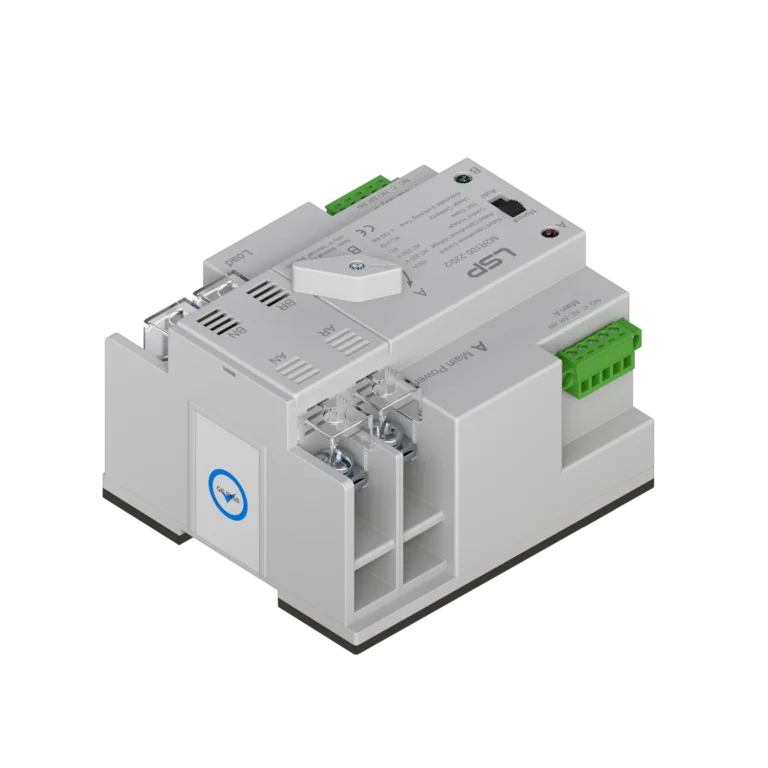

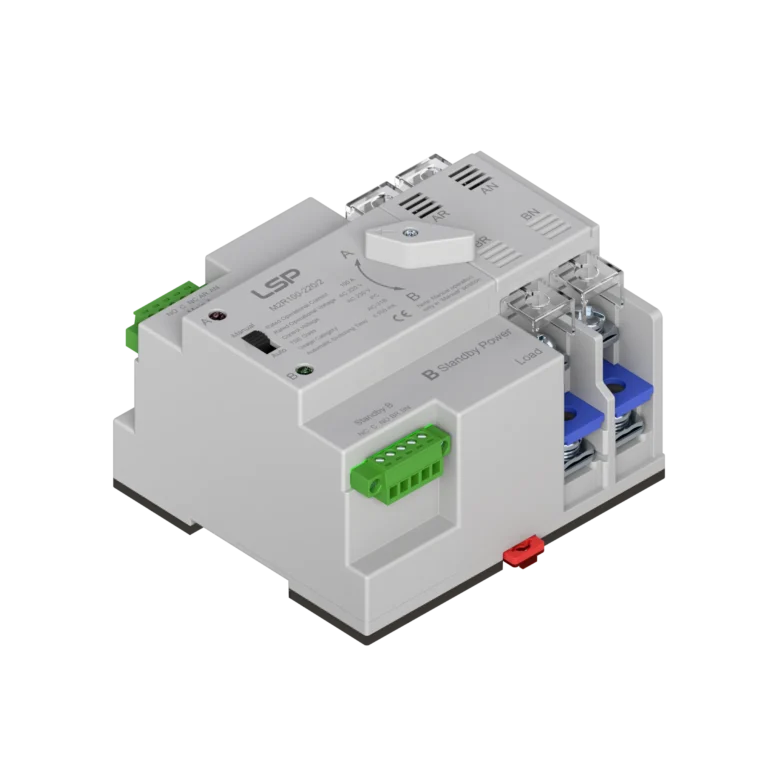

Automatic Transfer Switch ATS M2R100-220/2

PC-Class change-over switch

Small-sized

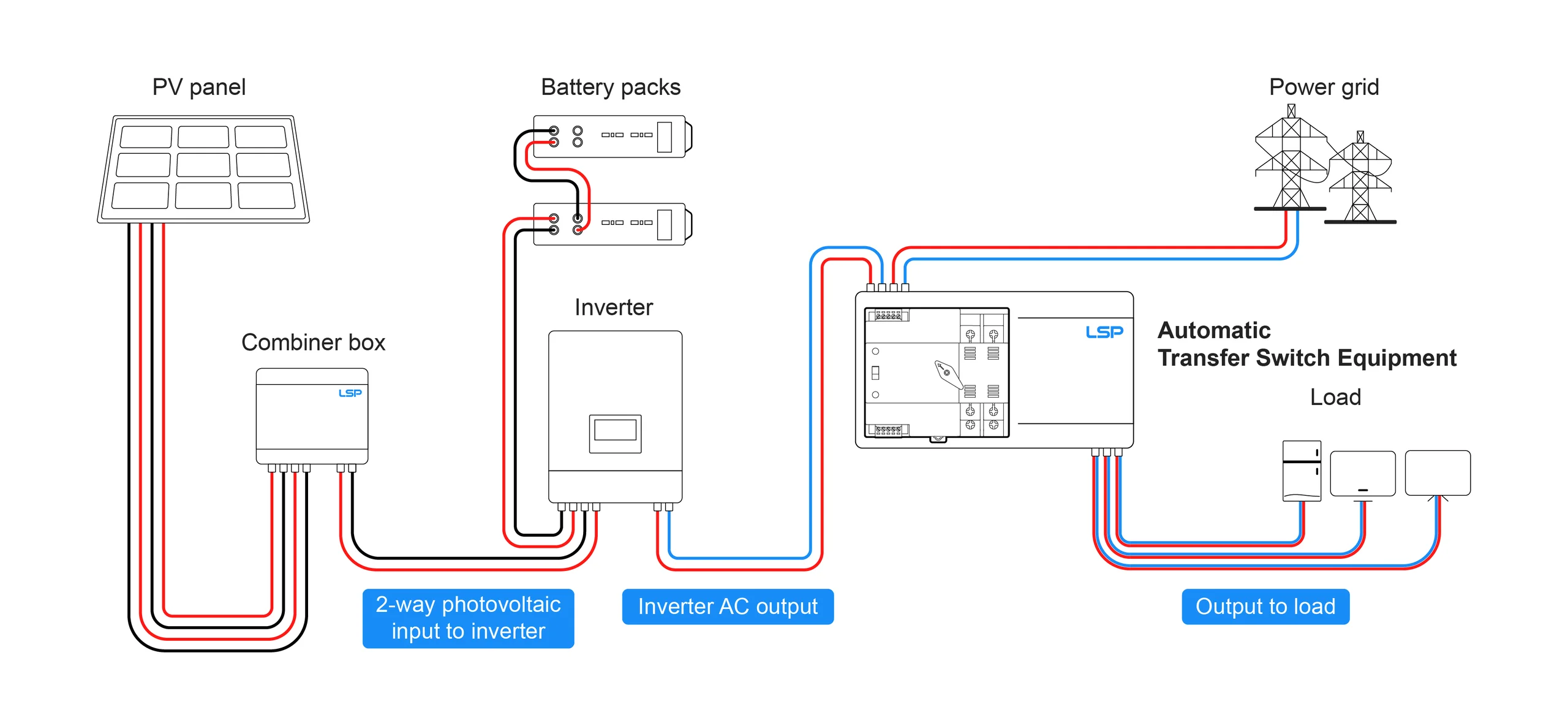

Dual power supply design: power supply A (main) and power supply B (standby)

Supports AC systems with a rated current of 6 A to 100 A

Automatic switching within 100 milliseconds

Compliance with lEC 60947-6-1:2021

Specification

TSE Class	PC-Class
	Rated Operational Voltage (AC) U_e	220V
	Case Grade	100A
	Rated Operational Current I_e	40A / 63A / 100A
	Rated Insulation Voltage (AC) U_i	690V
	Rated Impulse Withstand Voltage U_imp	8KV
	Rated Frequency	50/60 Hz
	Automatic Switching Time	≤ 100 ms
	Pole Number	2P
	Usage Category	AC-31B
	Rated Conditional Short-Circuit Current I_q	50 kA
	Rated Impulse Withstand Voltage	8 kV
