AC Type 1 Surge Protective Device FLP25-275/4S

Main Features:

Location of Use: Main Distribution Boards

Network Systems: TN-S

Mode of Protection: L-PE, N-PE

Surge Ratings: I_imp = 25kA (10/350 μs), I_n = 25kA (8/20 μs)

IEC/EN Category: Class I / Type 1

Protective Elements: High Energy MOV

Housing: Monobloc design

Compliance: IEC 61643-11:2011, EN 61643-11:2012

Get Free Quote Now

Main Specification

Model No.	FLP25-275/4S
	SPD according to IEC/EN 61643-11	Type 1 / Class I / Class B
	Nominal voltage U_n	230V
	Max. continuous operating voltage U_c	275V
	Impulse discharge current (10/350 μs) I_imp	25kA
	Nominal discharge current (8/20 μs) I_n	25kA
	Maximum discharge current (8/20 μs) I_max	100kA
	Voltage protection level U_p	≤ 1.5kV
	Max. backup fuse	315 A gG
	Type of remote signalling contact	yes / changeover contact

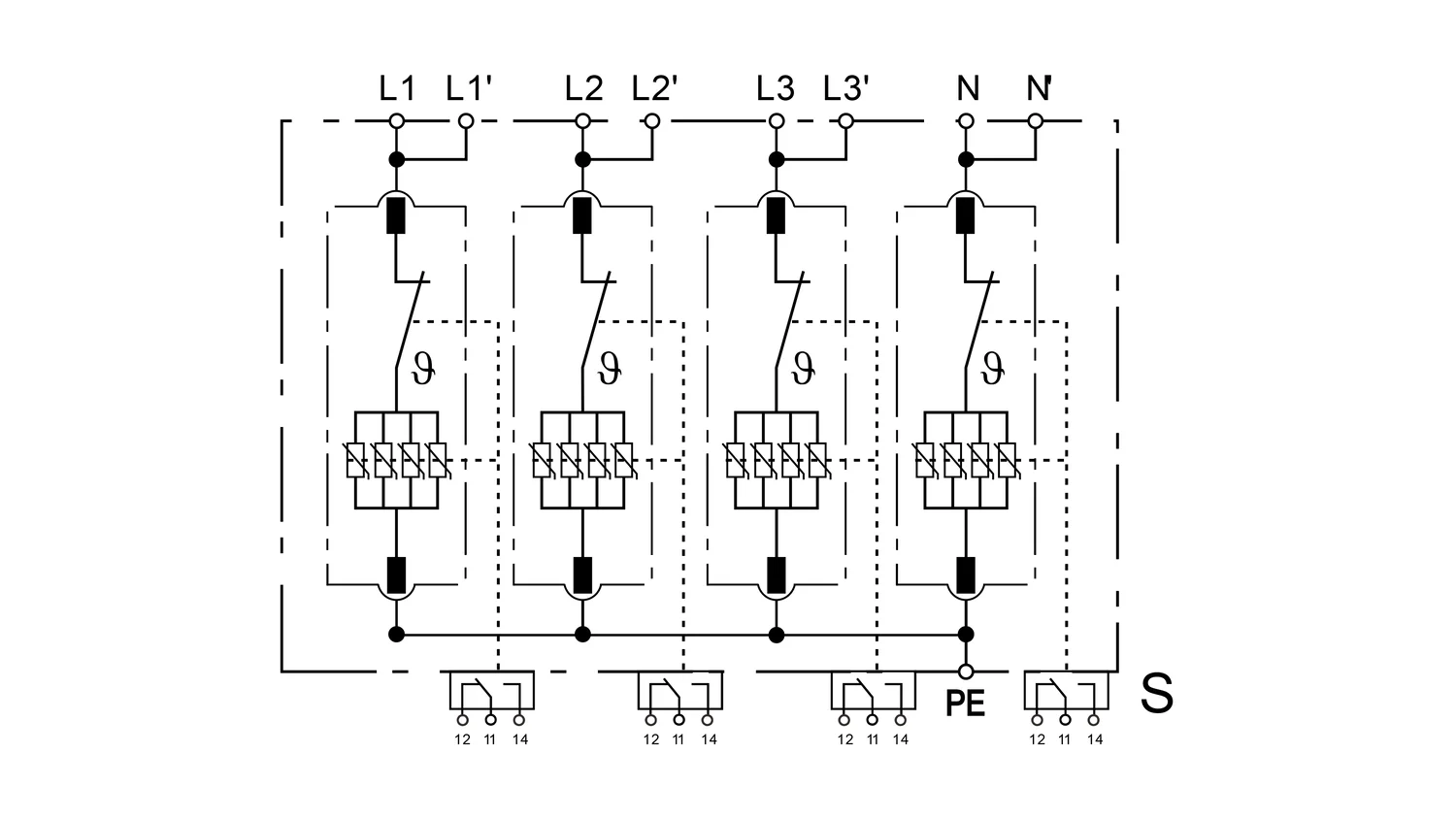

Basic Circuit Diagram

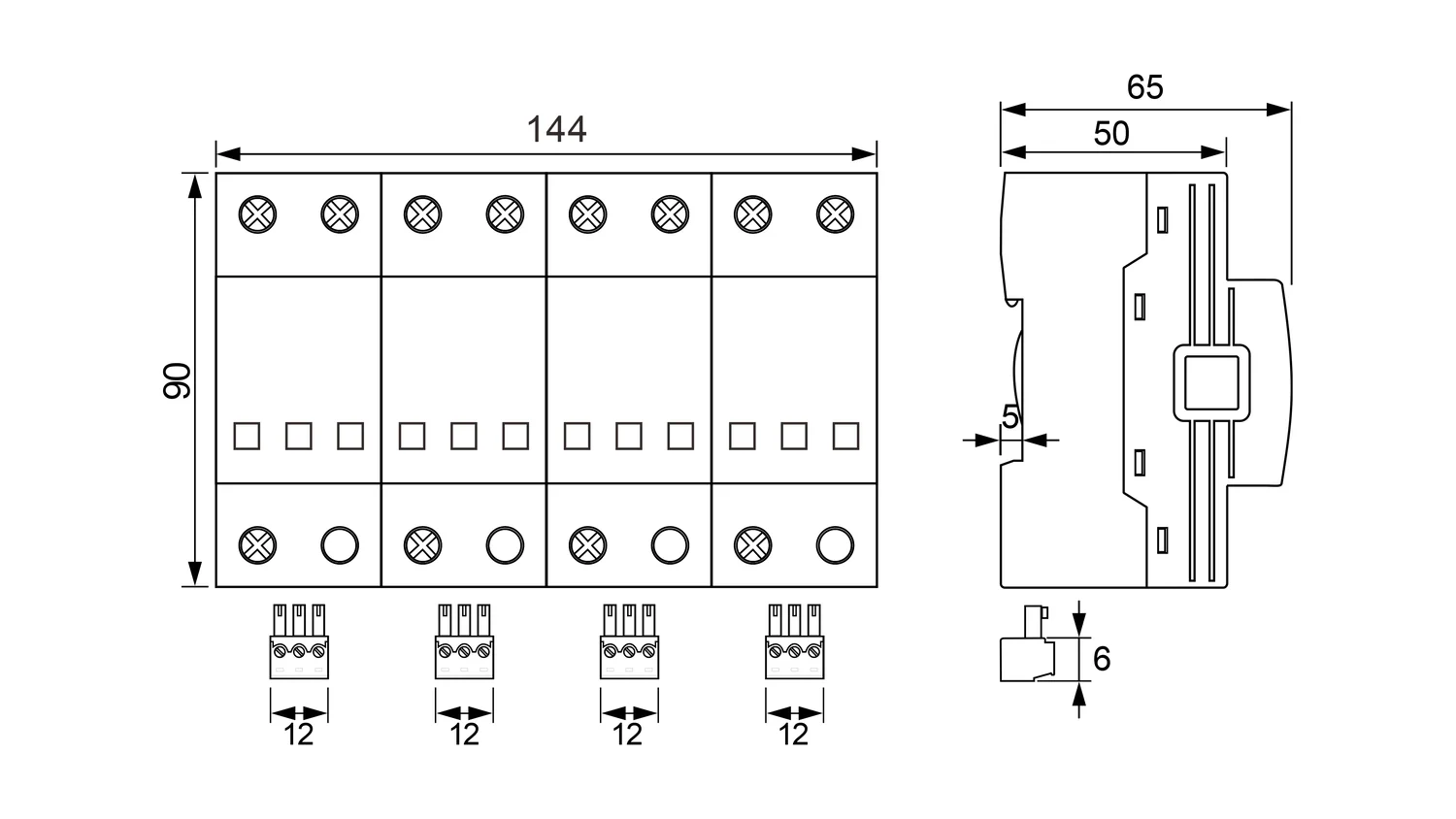

Dimensions

Installation Instructions

AC Type 1 surge protection device (SPD) is characterized by a 10/350 µs lightning current waveform.

DIN-Rail AC Type 1 surge protection devcie SPD installed at the load center’s main circuit breaker, e.g. main distribution board.

Wiring Diagram & Installation

The AC Type 1 Surge Protective Device (SPD) is designed to handle a 10/350 µs lightning current waveform, protecting electrical systems from direct lightning strikes and high-energy surges.

It is typically installed at the main circuit breaker of the load center, such as the main distribution board, to provide primary surge protection and safeguard sensitive equipment.

Media

Play

Certificate

Our Surge Protective Devices (SPDs) are TUV, CB, and CE certified and tested according to IEC/EN 61643-11 standards, ensuring reliable protection against electrical surges with high safety and performance.
