What is a Surge Protection Device (SPD)?
A surge protection device, commonly known as SPD, is one of the most useful electrical components nowadays because it helps to control power surges on a system or equipment. Power surges can be eminent from lightning strikes, power interruptions and even grid switching activities. A surge usually increases voltage at an uncontrollable rate which damages electric devices and causes operational malfunctions leading to even further safety threats.
One of the most important functions of SPD is to mitigate potential or excess voltage from reaching and damaging the connected electrical equipment. It achieves this by redirecting the excess voltage to the ground. SPDs generally consist of three components : a voltage – clamping sink, an over-voltage circuit, and an excess power safe diversion wire. These devices are very important in industrial buildings where electrical parts are extremely sensitive to power surges.
According to the configuration of a tackle, some SPDs can be positioned anywhere within the circuits split based on the expected power surge’s source, intensity and the system structure. One of the simplest models is the example wiring diagram of a device which demonstrates how the surge protection device should be implemented into the system for optimal protection.
Why is a Surge Protection Device Wiring Diagram Important?
Grasping how a surge protection device is integrated within the wiring system’s diagram is fundamental within the installation and the correct functioning of surge protectors. These diagrams outline precisely and unambiguously how to properly incorporate an SPD within an electrical installation. They indicate where the device is to be connected to the power supply, how the grounding system is to be used, and how the connections are to be made so that the effects of surges are mitigated.
Wiring diagrams are fundamental for safety during installation. An inappropriately connected SPD could give rise to inadequate protection against electricity surges and become a safety hazard. The SPD wiring diagrams reflect best practices as required by IEC and permit the electrician to focus on details that guarantee the operation of all parts of the device as expected.
In addition, the installation of surge protection is one of those applications that are specialized and therefore should follow safety codes and specifications. A wiring diagram for thesurge protection devicewill guarantee adherence, and also ease the work of the installers by eliminating educated guesses which may result in expensive errors or failures.
Difference Between AC and DC in Surge Protection Systems
Surge protection is needed to safeguard electrical systems from the voltage spikes (or surges) caused by lightning strikes, unusual switching operations, and other transient events. Surge protection methods also differ for AC (Alternating Current) and DC (Direct Current) systems. The table below summarizes some differences in the AC and DC surge protection devices (SPDs), including aspects that involve the wiring diagrams.
| Feature | AC Surge Protection Device (AC SPD) | DC Surge Protection Device (DC SPD) |
| Operation Mode | Designed for alternating current systems. | Designed for direct current systems. |
| Voltage Type | Operates with sinusoidal voltage that fluctuates. | Operates with constant, unidirectional voltage. |
| Current Flow | Current alternates direction periodically. | Current flows in one direction only. |
| Protection Technology | Typically uses varistors or gas discharge tubes. | Often uses MOVs (Metal Oxide Varistors) or diodes. |
| SPD Design | AC SPD needs to handle higher surge currents and frequently involves complex circuit designs. | DC SPD needs to be capable of handling continuous current without causing damage. |
| Applications | Common in residential, commercial, and industrial AC systems. | Used in solar energy systems, telecommunications, and other DC systems. |
| Wiring Diagram | In AC systems, SPDs are often installed in parallel to the power lines, with the live and neutral wires connected to the SPD. The wiring involves a connection to the earth ground to ensure proper dissipation of surges. | In DC systems, SPDs are typically installed in series with the power lines, where the device is placed between the source and load to prevent surges from reaching sensitive equipment. Grounding is similarly critical but often involves a different configuration due to the unidirectional nature of DC. |
Conclusion
Provisions for AC and DC surge protection devices (SPDs) are necessary due to the nature of the direct and alternating currents. AC surge protection devices (AC SPD) are used to cover changing voltage and range of alternating currents, while DC surge protection devices (DC SPD) are used for unidirectional current. Besides, the wiring diagrams differ with AC SPDs mostly connected in parallel to the power lines and DC SPDs frequently installed in series. Knowing these differences will help one pick the appropriate SPD for effective surge protection in different AC and DC systems.
Types of AC Surge Protection Devices and Their Wiring Diagrams
Surge protection devices are grouped in several types depending on the level of protection they offer. Each subtype, from type 1 SPD to type 3 SPD, has its unique features, and knowing the SPD wiring diagram for each subtype is critical for efficient execution. SPDs types differ by the levels of protection they offer. For effective use, knowing the SPD wiring diagram is essential.

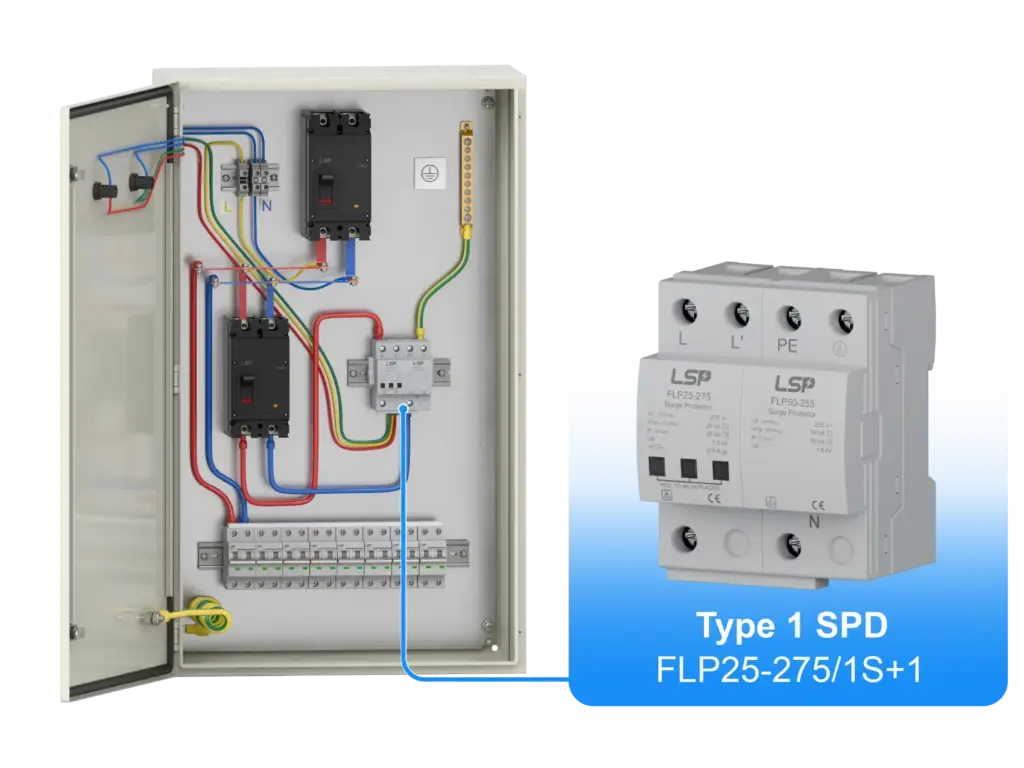

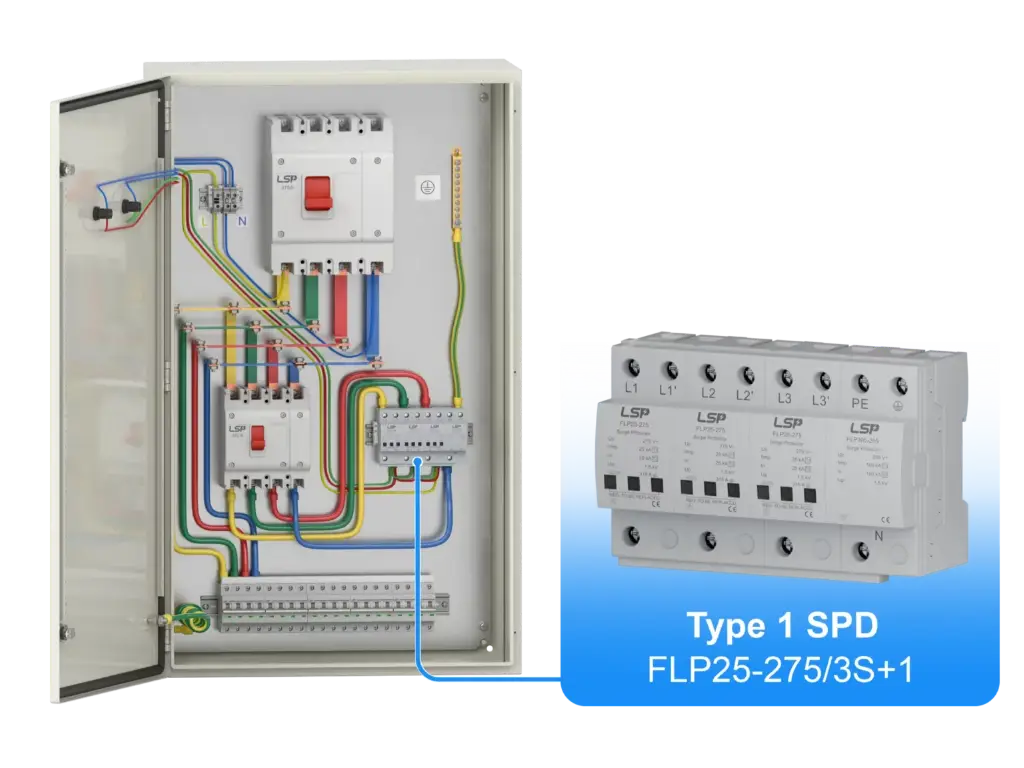

AC Type 1 SPD Wiring Diagram

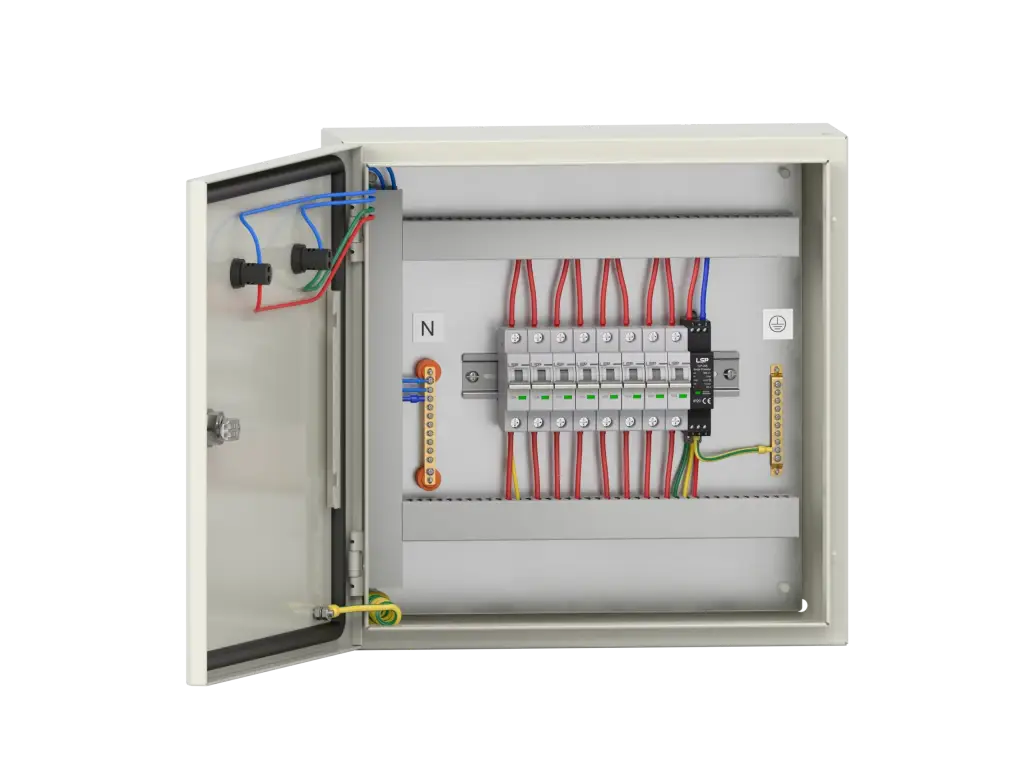

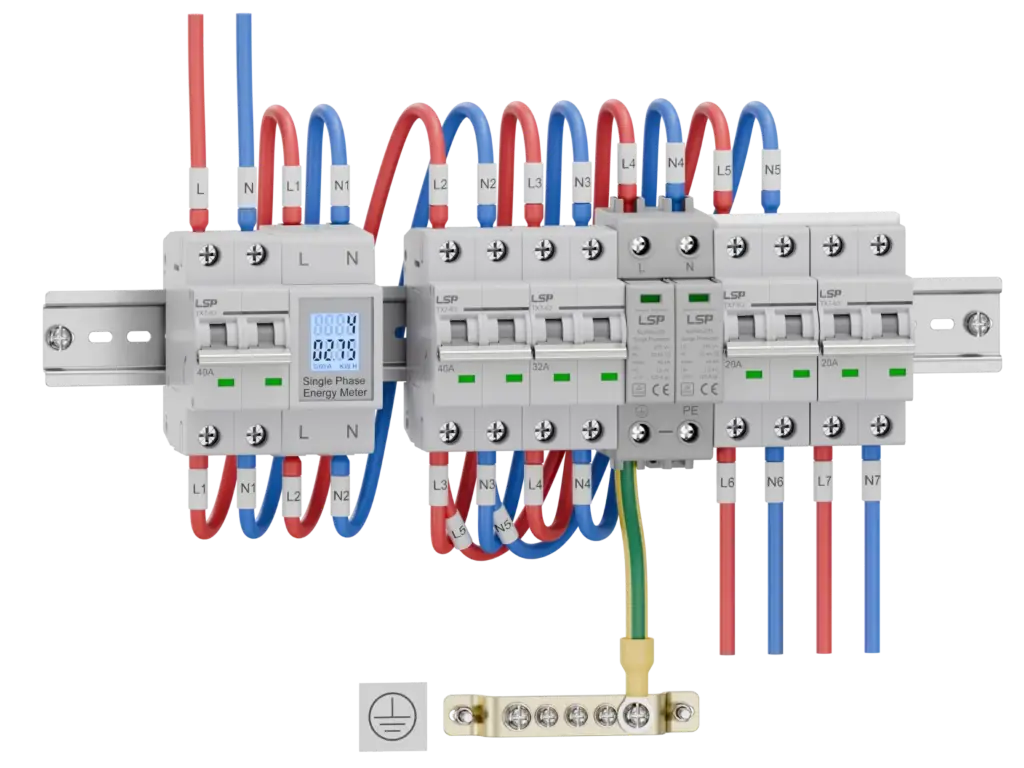

- Single phase Surge Protector Wiring Diagram: The wiring involves connecting the SPD to L (live), N (neutral), and PE (protective earth), usually at the main circuit breaker or power entry point.

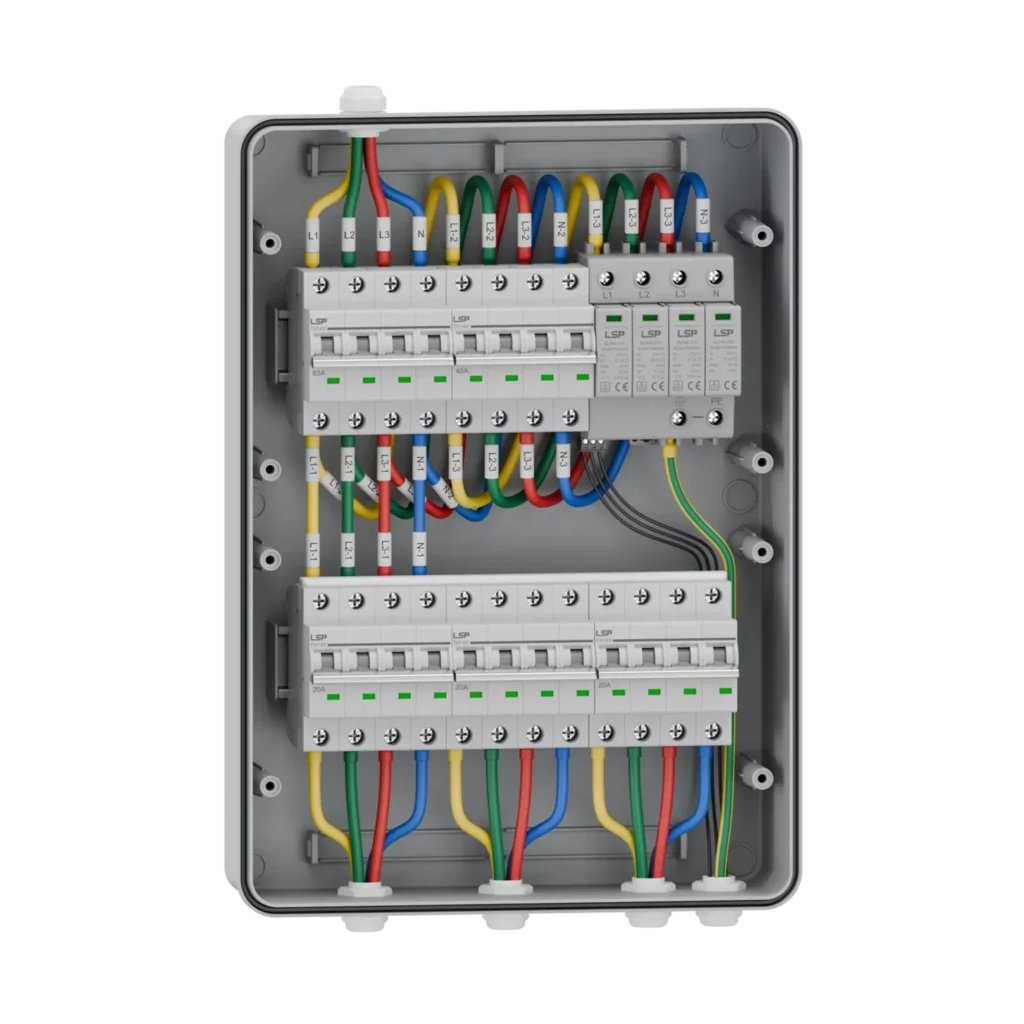

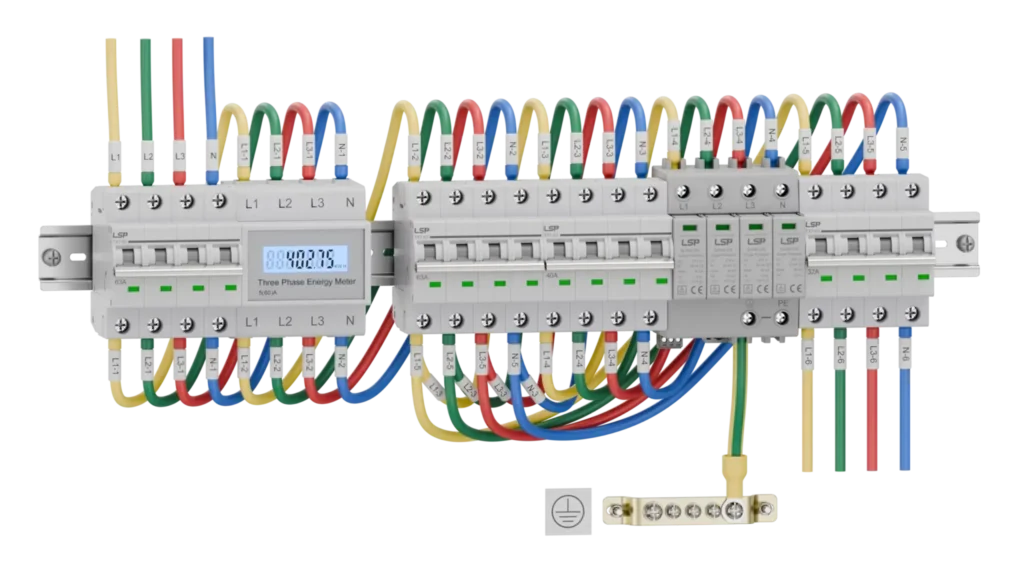

- 3 phase Surge Protector Installation: For a three-phase system, the SPD connects to L1, L2, L3 (live phases), N, and PE.
Type 1 SPDs are best suited against lightning strikes and other extreme surges within electricity frameworks. They are set to take place at the point where the electrical installation is employed. Usually, these devices are placed between the supply of power and the electrical system of the building. The wiring diagram for a Type 1 SPD will indicate placement between the circuit breaker surge protector and the inbound power lines. It is important that high energy voltage from a lightning or other surges is diverted before it gets into the system.
AC Type 2 SPD Wiring Diagram

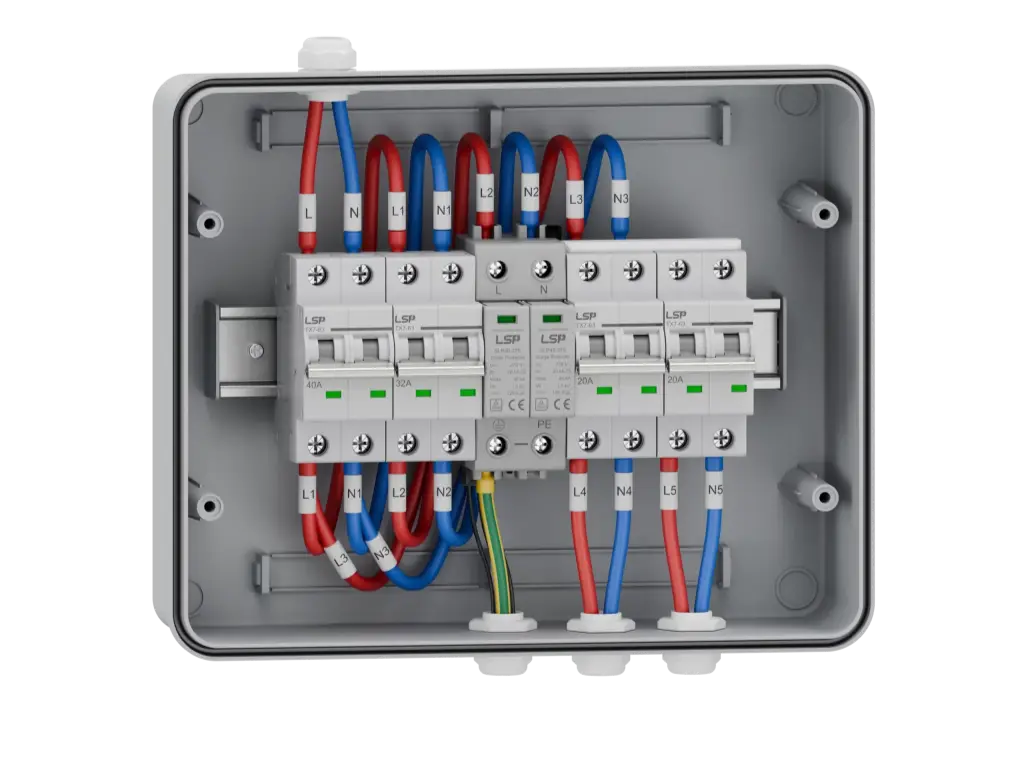

- Single phase Surge Protector Wiring Diagram: The SPD is connected to L, N, and PE, typically in secondary distribution panels downstream from the main breaker.
- 3 phase Surge Protector Installation: The SPD is wired to L1, L2, L3, N, and PE, and it’s integrated with distribution equipment.
Type 2 Surge Protective devices are fixed at distribution boards or service panels and shunt protectors for low voltage surges. These devices provide a level of protection from internal or external power surges such as those coming from the power grid. Type 2 SPD wiring diagrams describe how the device should be installed after the circuit breaker to ensure proper suppression of electrical equipment downstream, including electrical equipment in industrial and residential buildings.
AC Type 3 SPD Wiring Diagram
- Single phase Surge Protector Wiring Diagram: The SPD is connected to L, N, and PE, usually at or near the power outlet of the end device.
A Type 3 Surge Protective Device will focus on the last stage of the wiring of the solar power system where all the surge energy which may be left is mitigated ensuring that important equipment is not damaged by any leftover surge energy.

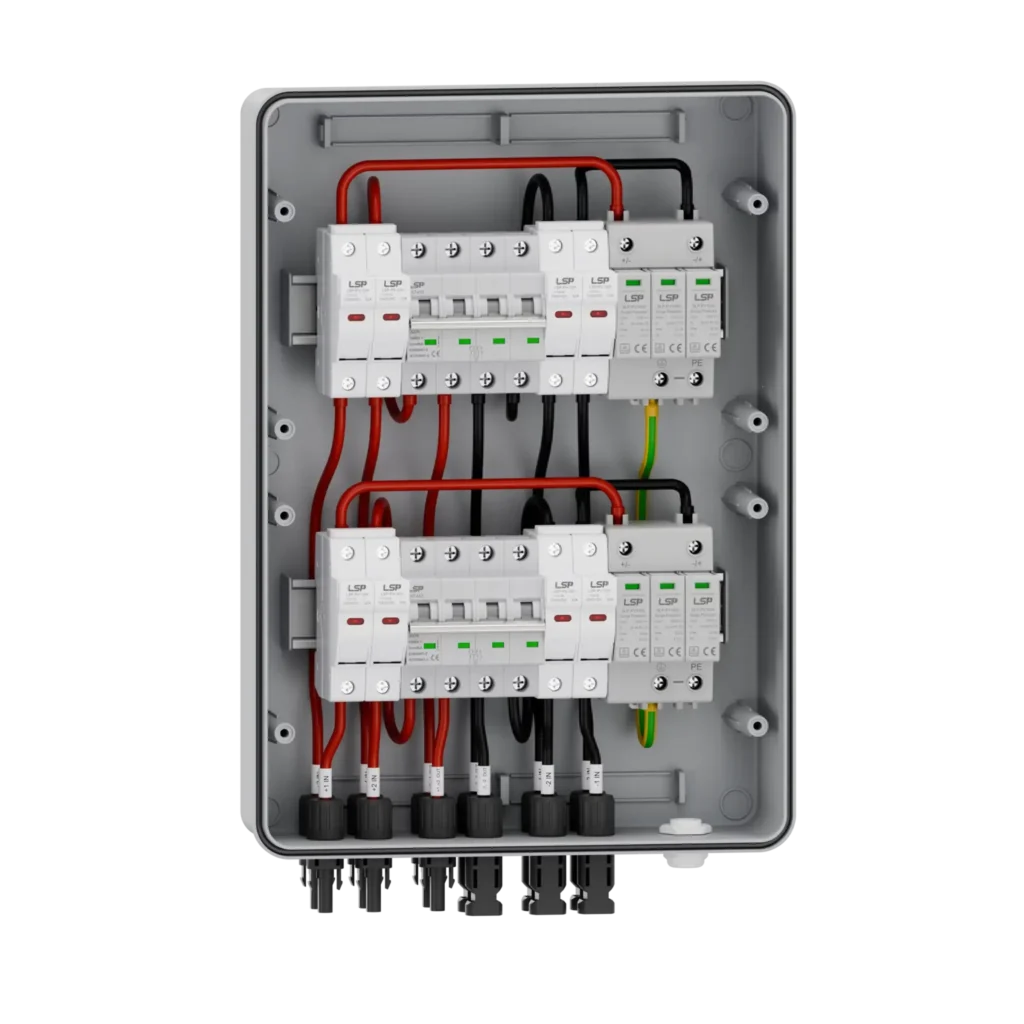

Solar / PV / DC Surge Protection Device Wiring Diagram
SPDs (Surge Protection Devices) in solar (PV), and DC systems require a different approach as to surge protection compared to AC systems. This is because DC systems are characterized by continuous and unidirectional flow of power. Control of overvoltage in these systems is achieved through accurate SPD installation which protects the inverters, charge controllers, and battery storage units from transient overvoltage, hence providing system reliability. These devices are installed on primary and secondary circuits of DC power supply, like the terminals of batteries, output of the inverter, and the DC combiner box to lessen surge impact. They are usually heavily impacted aimed at improving performance.
There are variants of surge protection in the PV (photovoltaic) and DC systems compared to the AC systems. SPDs (surge protective devices) for these systems usually have set parameters for compatible DC voltages like 600V, 1000V, and 1500V as is the case for arrays or PV systems.

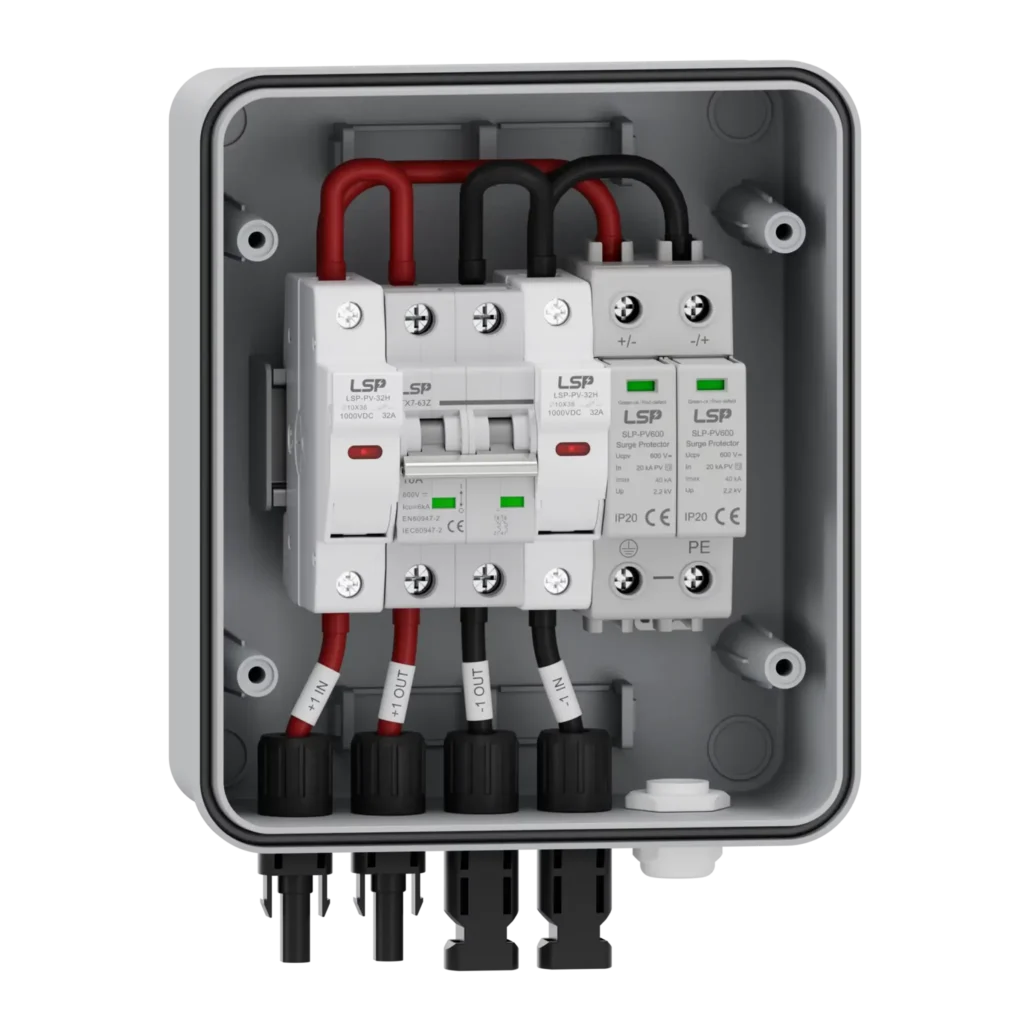

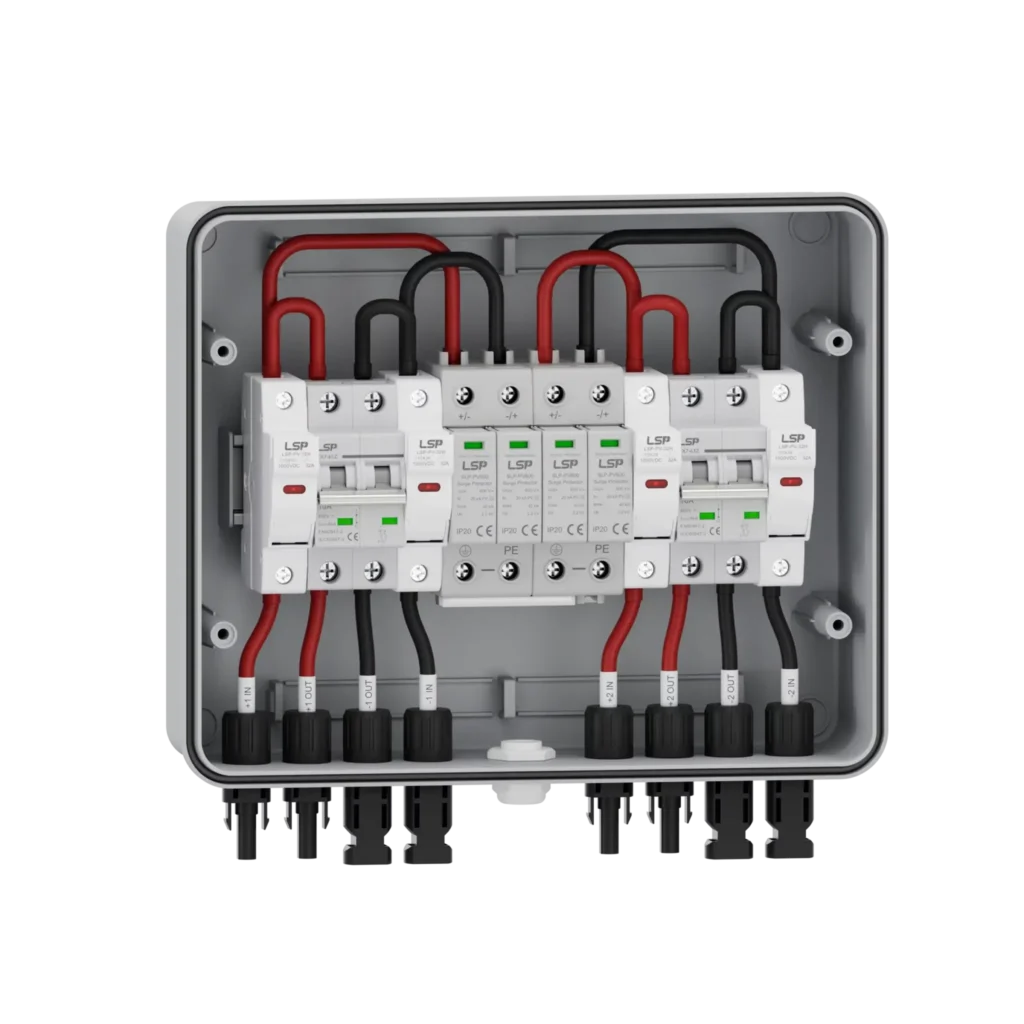

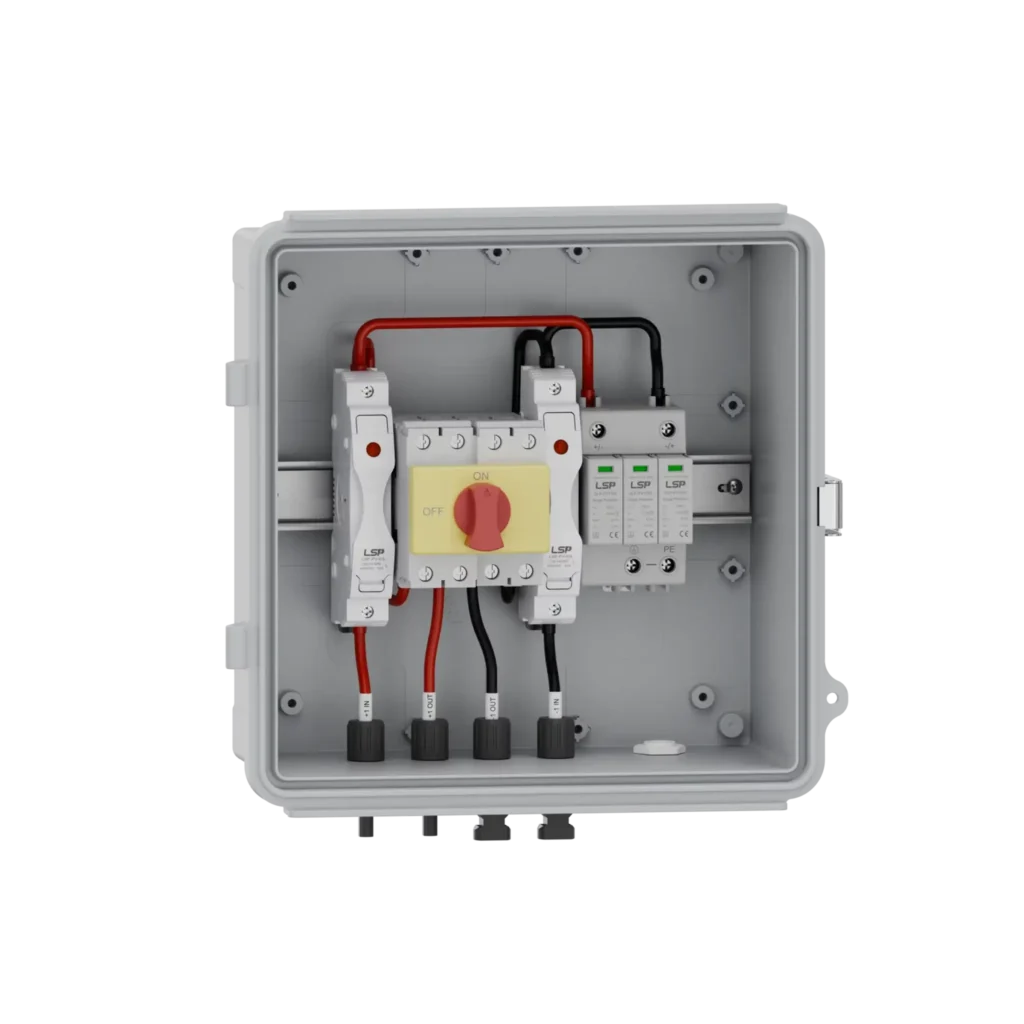

600V DC Surge Protection Device Wiring Diagram
- The DC-side wiring generally involves connecting the SPD to positive (+) and negative (-) terminals, with grounding as required.
Surge protective devices with 600 volts are often considered for smaller photovoltaic systems, especially for residential or small scale commercial rooftop solar systems. They safeguard the DC electrical conductors from lightning or electric surges.

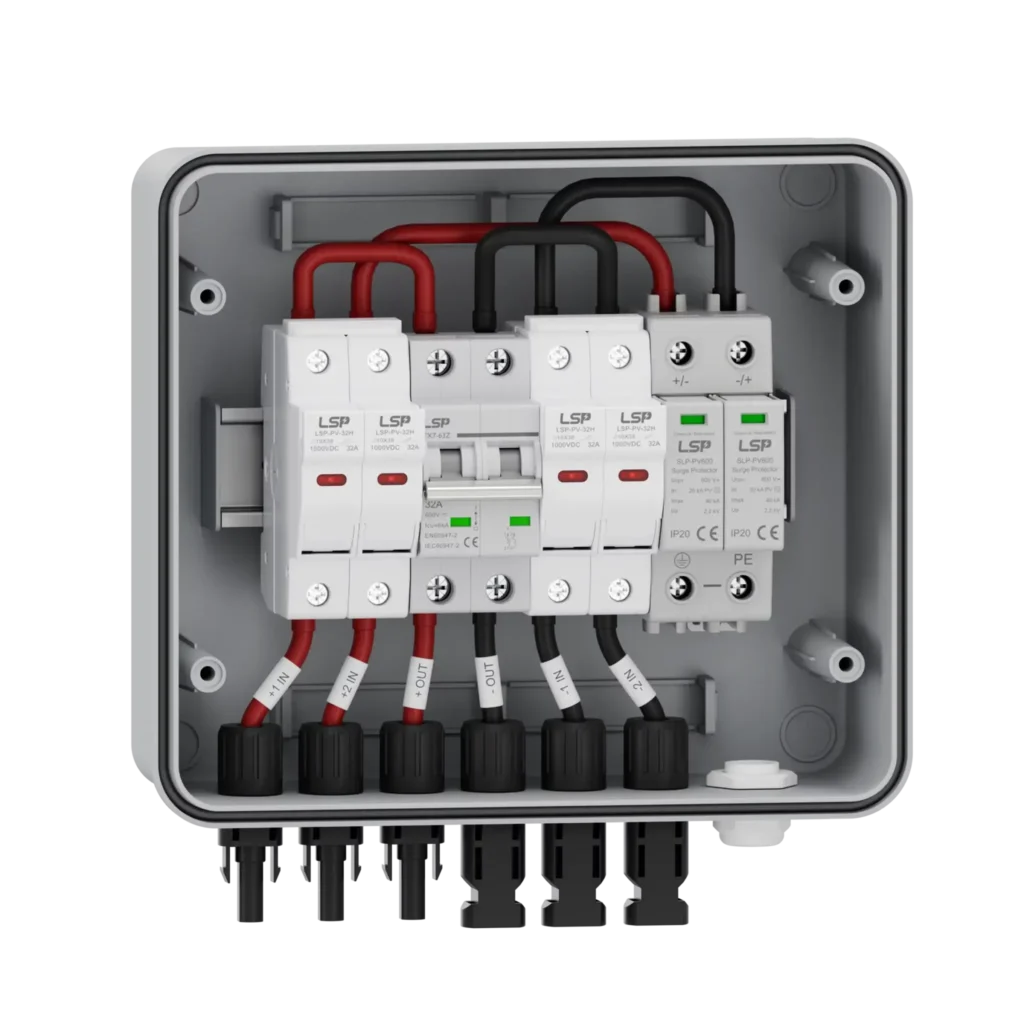

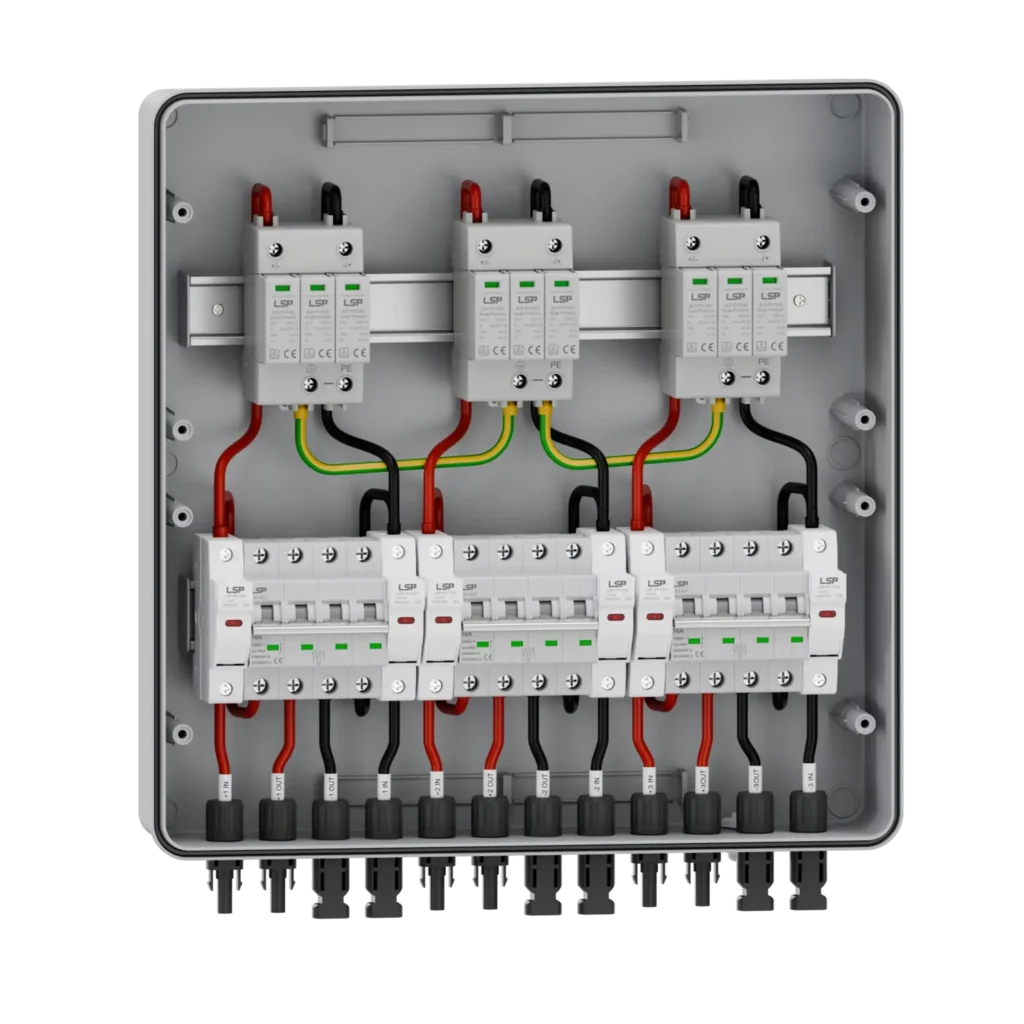

1000V DC Surge Protection Device Wiring Diagram
- Similar to 600V, but designed for larger systems, with connections to the positive (+) and negative (-) DC terminals, along with grounding for protection.
In most medium scale PV solar systems found in big commercial solar arrays or medium-sized solar power stations, SPDs with 1000 volts can commonly be found. These systems tend to have a greater power output which require higher voltage values than the previously mentioned ones in order to accommodate it.

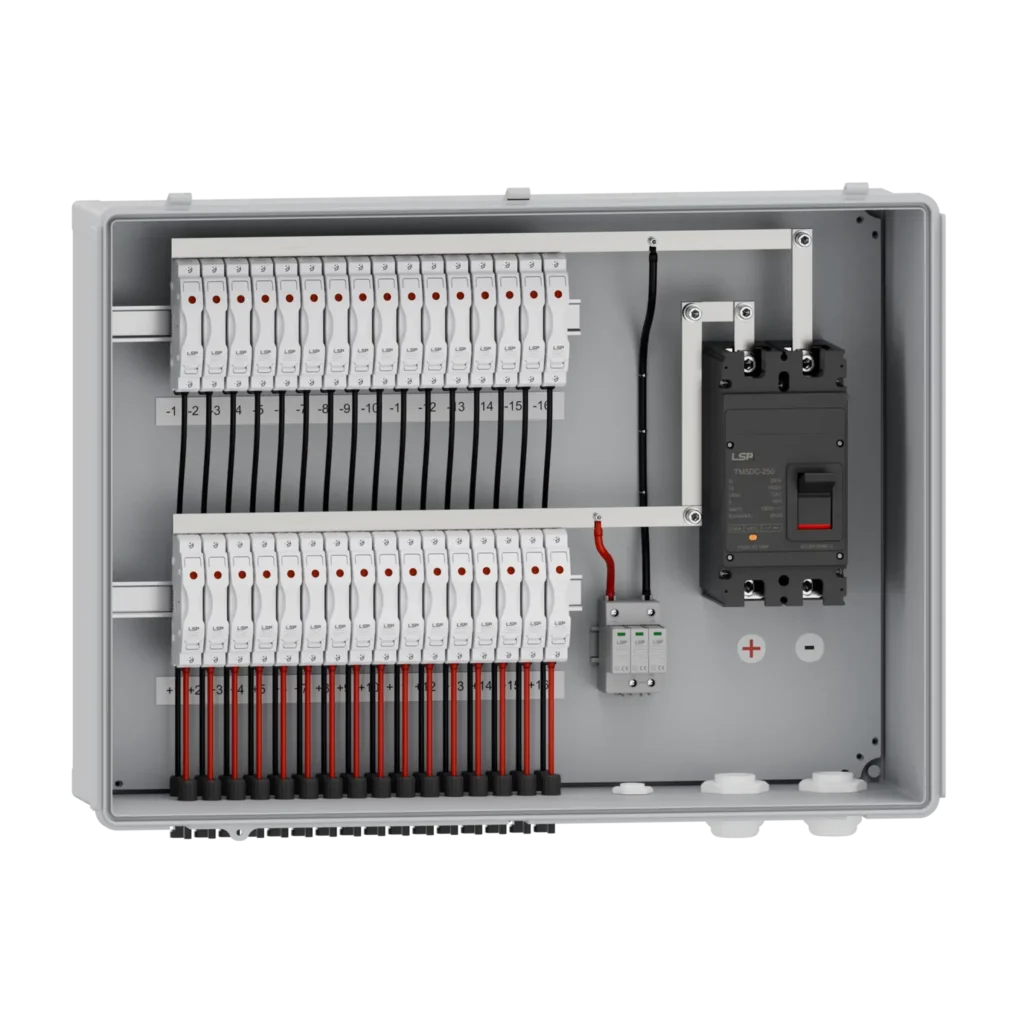

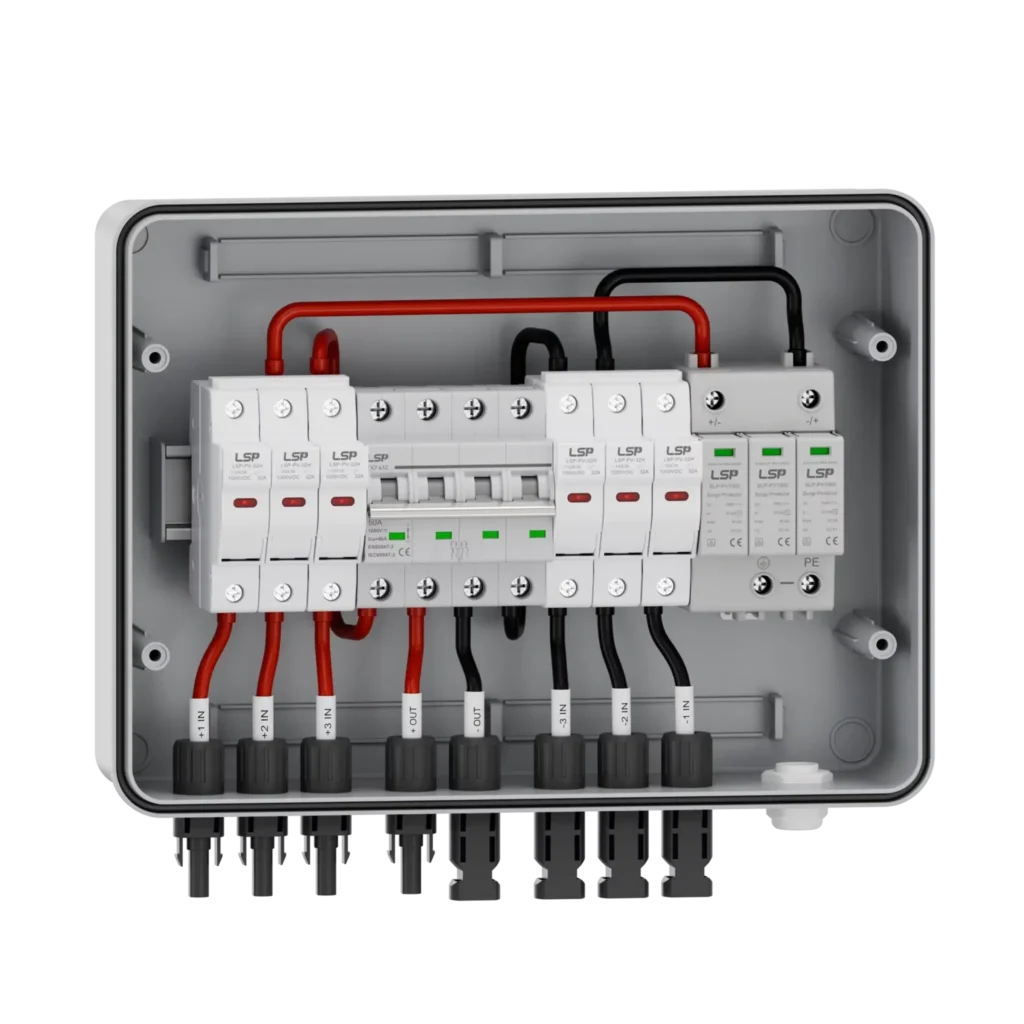

1500V DC Surge Protection Device Wiring Diagram
- Wired similarly to 600V and 1000V systems, but with enhanced insulation and grounding to account for the higher voltage levels.
SPDs with 1500 volts are meant for minimum scale PV power stations and maximum voltage range DC transmission systems. These SPDs are responsible for dealing with a lot higher currents and voltages, thus requiring tighter safety measures.
Step-by-Step Guide to Installing a Surge Protection Device
Installing a surge protection device can be straightforward when the correct procedures are followed. Here is a step-by-step guide to ensure that your surge protection installation is done correctly and safely.
Tools and Materials Needed
Before beginning the process, do ensure you have the following materials, as they are essential to guarantee that your installation is seamless and secure.
| Tools and Materials Needed |
| Surge protection device |
| Wiring diagram for the type of SPD |
| Screwdrivers, pliers, and wire cutters |
| Multimeter for testing |
| Circuit breaker for disconnecting power |
| Grounding equipment (if not already in place) |
The correct equipment will make sure that the installation is undertaken in the best possible manner, both in terms of safety and efficiency.

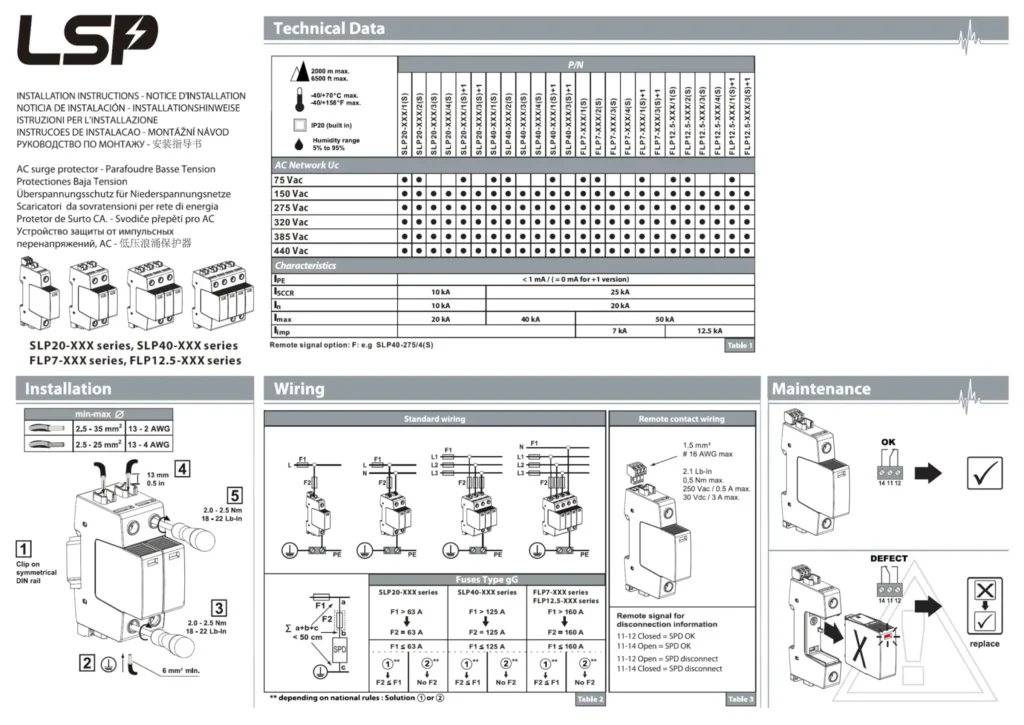

AC Surge Protection Device Installation Guide
DC Surge Protection Device Installation Guide
Key Considerations When Choosing an SPD
Choosing the right Surge protection device requires proper attention to detail if you want to guarantee optimal protection for your electrical system. An correct SPD choice can go a long way in mitigating the risks that you would otherwise suffer as a result of electrical surges to your equipment.
- Type of System: Specifics of the electrical system in question, be it AC, DC, or hybrid, determine the type of SPD required. An SPD critical to your system must be selected otherwise there is no certainty of protection being guaranteed.
- Nominal Discharge Current: This is the amount of current the SPD can sustain before it incurs damage. Make sure that the SPD device you choose is rated for a nominal discharge current that is equal or higher than the systems charge levels that are encountered.
- Maximum Discharge Current: Besides regular surges charging, the SPD must be able to withstand extreme surge charging that could range all the way from lightening surge events. When choosing the SPD, make sure that the device is rated sufficient enough on maximum discharge current to withstand such events.
- Compliance: Don’t forget to check that the SPD complies with international safety standards like IEC standards. These guarantees aid in trusting the device in providing protection to your system and its reliability.
Taking these considerations into account will help you decide which SPD is ideal for you.
Why Choose LSP for Your Surge Protection Device Needs
Here at LSP, we have been focused on surge protection for over 15 years. Our practice has enabled us to develop high-grade surge protective devices (SPDs) that cater to the highest requirements. Our TUV, CB, and CE certifications assure you that all our products are the best and safest for surge protection. It does not bother whether you need to add some custom SPDs to your electric product line or you are integrating a fully comprehensive surge protection solution, LSP is the partner you can rely on.
At LSP, we are committed to helping you effectively protect your electrical systems with our premium surge protective devices. We incorporate top-tier core components, such as the LKD-brand MOV (Metal Oxide Varistor), which plays a crucial role in safeguarding your equipment. Additionally, we use GDT (Gas Discharge Tube) technology, sourced from Vactech, to enhance protection. It is our mission to identify breakdowns and solve problems. LSP’s surge protective devices have been expertly crafted to endure lightning and electrical surges that risk the wellbeing of an equipment’s lifespan or functionality. We solely utilize the best quality core components into our SPDs to achieve optimum performance. Moreover, at LSP we have spent almost three years developing an in-house solution that effectively silences fire arcs for close-word phenomenal protection. Furthermore, our plastic components are made from high-performance fire-retardant materials. All metal components are subject to a 48-hour salt spray test for long-lasting reliability. In addition, even all of the materials that compose our products have been thesed to RoHS 2.0. As a result, reaching out vertically to environmental effectiveness.
It is our combination of product and service quality that distinguishes us from others. Our SPDs come with a 5 year warranty. For standard items, we typically complete production and dispatch within 10-15 days, while customized products are delivered within one month. With an annual production capacity of 300,000 units, we ensure efficient and reliable supply to meet market demands. In addition, our team supports marketing with 3D animations and renderings and offers tailored solutions for lightning and surge protection systems. Our products are manufactured under rigorous ISO9001 standards, meaning they undergo extensive durability tests such as 8/20 and 10/350 waveform testing to ensure performance. At LSP, we not only develop and manufacture SPDs, but we also provide peace of mind regarding the security and reliability of your electrical systems. With no minimum order quantity requirements, we ensure that every customer, regardless of the size of their project, can access high-quality surge protection tailored to their needs.
Frequently Asked Questions About SPD Wiring Diagrams
Q: What is the difference between Type 1, Type 2, and Type 3 SPDs?
A: The protection difference comes from the ordination level where they protect from surge. Type 1 SPDs is provided to protect from direct lightning strikes, Type 2 provides protection for internal surges while in Type 3 protection is provided at the device level. When considering the right protection strategy, it’s important to understand different surge protection device types.
Q: Can I install an SPD myself?
A: You can install a system on your own. Take the proper precautions when following the SPD wiring diagram. Also, remember that for more complicated installations a specialist should always be consulted.
Q: How do I choose between single-phase and three-phase SPD wiring diagrams?
A: Regardless of how your system is structured, single-phase or three-phase, there are specific diagrams and SPDs that will work best.
