While performing daily chores, it’s easy to overlook electrical surges – and yet, they can cause extreme damage. Sensitive electric devices used for household appliances and entertainment – termed as ‘sensitive electronics’ – form the core of our existence. Weakly guarded devices can suffer greatly from undeterred electronic fluctuations. The worst case scenario consists of severe damage both financially and physically. We must understand in what manner and proactively what steps could be taken in this age of uncertainty.
Why Install a Surge Protection Device? Understanding the Risks and Benefits
The grid that our power provider uses to distribute electricity to our homes is very complex—but it can go through some problems now and then. Problems such as thunderstorms, downed power lines, outages due to technical failure, or internal malfunctions can affect the infrastructure. Along with these problems coming individually, they can also arise simultaneously. Whenever these outages occur, the devices of air conditioners and refrigerators, among others, are prone to voltage surges which results in catastrophic damage. The nature of such damage, which can either be a partial malfunction or total failure, can be a huge expense to fix.
Surge protection devices are essential in aiding such situations. As power surges can range from low voltage to high voltage, these devices manage the extent of damage that could potentially be caused by it. Surge protection device strangle the amount of voltage or energy that is given to sensitive electronics like computers and TV so modify peripherals don’t get damaged. As a result, the possibilities of malfunction, circuit damage, or fire are eliminated greatly. The users are also saved from the expensive foreseen repairs which are worsened if the device has stored data which costs additional in the end.
In the case of a power surge, a surge protective devicewill act as a shield for your electronics. However, it offers a multitude of other advantages as well. Having a power surge in the middle of your work may shorten the life of your devices, but surge protectors can improve their longevity. In addition, surge protectors will improve the safety of a home since the chances of an electrical fire due to a surge are diminished. Thus, spending money on a surge protector is not wasteful, rather a smart choice that gives you peace of mind knowing that your property and vital equipment are protected.
Understanding Different Types of Surge Protection Devices: Choosing the Right One for Your Needs
Surge protection is not a universal topic, meaning that devices are meant to protect against surges customized based on need. Risks come in various levels and so do types of surge protection devices which are aimed at particular needs and vulnerabilities. Knowing the difference will help you make better and more precise decisions concerning the safeguarding of your home.
| Type of Surge Protection Device | Description | Location/Installation | Purpose | Protection Scope |
| Whole-House Surge Protection Device (SPD) | A surge protector that covers the entire house. It is located on the electrical panel close to the main breaker. | Electrical panel, near the main breaker | Prevents external surges (e.g., lightning strikes, power line surges) from reaching the home’s electrical system. | Protects all electrical circuits and appliances in the house. |
| Point-of-Use Surge Protectors | Power strips or individual socket caps that plug directly into wall sockets. | Wall sockets in specific rooms or areas | Serves as an extra layer of protection for sensitive electronics like computers, TVs, and audio devices. | Protects against smaller internal surges that might not be blocked by the whole-house SPD. |
| Communications Line Surge Protectors | Surge protectors for telephone lines and network cables. | Telephone or network cable connections (e.g., routers, modems) | Prevents surges from traveling through telephone or network lines to damage connected equipment. | Protects communication devices (e.g., routers, modems) and network-enabled appliances. |
A number of things need taken into account when selecting the appropriate types of surge protection devices for your needs. As mentioned earlier, take into account the value and sensitivity of your sensitive electronics. Items that are expensive like home theater systems as well as professional workstations require heightened levels of protection. Consider the risk factor regarding external surges like lightning strikes depending on the home’s geographical location. Last but not the least, think about the budget and the expense related to the protection resources you decide to implement.
Safety First: Essential Precautions Before You Begin Installation
Dealing with electrics can be dangerous, so remember that installing surge protection is done at your own risk. It is recommended to follow a set of steps with the utmost caution, ensuring that no tools are picked up without following the predefined criteria. In case you are doubtful about your abilities or are not comfortable performing the work at hand, a qualified, licensed electrician should be hired. Remember that the risks associated with trying to do things on your own could, in the worst-case scenario, compromise the safety of both you and the electrical infrastructure of your house. Adherence to the national electrical code is crucial for safe installation.
Provided the basics mentioned above are not an issue for you, the following is a simple yet thorough method to help you confidently follow the necessary regulations:
- Main Breaker Should Be Turned Off: This is the single most important safety precaution to be considered. Ensure no components or wiring in the electrical service panel are touched before locating the main breaker. Start by locating the largest circuit breaker in the panel and turning it to ‘OFF.’ This will ensure that the entire house’s electricity circuit is powered off. It is equally critical to confirm with a voltage tester that the outlet you are working with is not live.
- Collect All The Required Personal Protective Equipment (PPE): Put on appropriate safety gear such as insulated gloves and safety glasses. These items are designed to help prevent injury from accidental electrical shocks and flying debris, which can occur during installation.
- Lighting In The Workspace: Ensure there is sufficient light in the area where you will be working. Adequate lighting will help you see clearly, which is crucial to avoid mistakes during the installation process.
- In The Company of Other People: It is always a good idea to have someone else nearby when working with electrical wiring. This ensures that, in case of an emergency, help can be summoned quickly. Having a second person can be life-saving in critical situations.
- Follow The Manufacturer’s Instructions: Read the installation manual carefully, as it contains specific details for the surge protector you are installing. Following the manufacturer’s guidelines is essential for proper installation and functionality.
- Employ Appropriate Equipment: Make sure you have the proper tools for each specific task, and confirm that all tools are functioning properly. Using damaged or unsuitable tools can lead to accidents or damage to your equipment.
- Walk Step by Step: Avoid rushing through the installation process. A step-by-step approach ensures that every action is thoroughly performed, with careful verification of electrical connections to ensure everything is installed as intended.
- If In Doubt, Call a Professional: If you feel uncertain at any point during the installation process, don’t hesitate to call a trained and licensed electrician. When dealing with electricity, being overly cautious is always better, especially when working with the main electrical panel.
Final Conclusion: Safety should always be your top priority when working with electrical installations. Even with all the precautions in place, if you’re unsure about any aspect of the process, it’s wise to seek professional help. An experienced, licensed electrician will ensure the job is done correctly and safely, protecting both you and your home’s electrical system. By adhering to the necessary precautions and codes, you can confidently proceed with your project while minimizing risks. Always remember: when in doubt, safety comes first!
Step-by-Step Guide: Installing a Whole-House Surge Protection Device
If you are confident in your skills and have taken all the safety precautions needed, you can follow this general step-by-step guide to installing a surge protection device for your house. Note that this is a general guide, so you will always have to follow the instructions provided by the manufacturer of the device you have and adhere to the national electrical code.
Gathering Your Tools and Materials
Make sure you have the following tools and materials ready. This preparation includes:
- A surge protection device for the entire house: Ensure it is appropriate for your home’s electrical system.
- Proper wiring type and size as per the manufacturer’s instructions and the National Electrical Code.
- Wire cutters: For cutting electrical wires to the appropriate length.
- A range of screwdrivers (including pliers of various sizes): For tightening and loosening connections.
- Pliers: To help secure wires and connections.
- Voltage meter: To test the electrical system and ensure everything is functioning safely.
- Drill and drill bits (if installation requires drilling).
- Bolts or mounting hardware (e.g., screws, which may be supplied with the device).
- Electrical tape: To secure connections and ensure safety.
- Personal protective equipment:
- Safety goggles: To protect your eyes during installation.
- Insulated gloves: To protect yourself from electrical hazards.
Locating Your Electrical Panel and Main Breaker
The electrical panel is typically a gray metallic box located in your home’s utility room, garage, or basement. Once located, find the main breaker. This is usually the largest breaker and positioned at the top of the panel. Make sure the main breaker is in the OFF position before proceeding.
Choosing Wiring Connections and Spaces for Surge Protectors
Many whole-house surge protection devices require a dedicated two-pole circuit breaker slot. Check your electrical service panel for available spaces. If there is no available slot, a licensed electrician may need to add an additional breaker space. Once you identify an available slot, plan where to connect the device wiring. Surge protectors are typically connected to the ground bus bar and the neutral bus bar or neutral terminal.
Steps to Connect the Device Wires
| Task | Description |
|---|---|
| Prepare the Wires | Use wire strippers to expose the copper wire at the ends of the surge protector’s wiring. The length of exposed wire should be as specified in the manufacturer’s instructions. |
| Connect the wires to the surge protector | For each wire, insert it into the correct hole on the surge protector block. Use a screwdriver to tighten and secure the wire into place. |
| Install the Breaker | Insert the new circuit breaker into the available slot in the electrical panel. |
| Connect to Ground | Attach the ground wire from the surge protection device to the ground bus bar inside your electrical panel. This is usually a copper strip. Ensure the connection is tightly secured. |
| Connect to Neutral | Attach the neutral wire from the surge protection device to the neutral bus bar or labeled neutral terminal within your electrical panel. This is typically a silver-colored bar. Again, make sure to tighten the connection securely. |
Mounting and Securing the Surge Protection Device
Most surge protection devices for the home are installed next to the electrical panel. Find a suitable location to mount the device, ensuring that the wiring can be connected without strain. Use the supplied mounting hardware to secure the device to the wall or side of the electrical panel.
Reviewing Installation Functionality
After completing the wiring and mounting steps, it’s time to check if the installation was done properly:
- Close the Electrical Panel: Gently close the main cover of your electrical panel.
- Turn On the Main Breaker: Flip the main breaker to the “ON” position.
- Check the Indicator Light: Many surge protectors have an indicator light showing the operational status. Refer to the manufacturer’s instructions to understand what each light pattern means. A green light typically indicates the device is functioning correctly.
- Test Individual Circuits (Optional): After installation, you may choose to test individual circuits to ensure that power is being supplied correctly throughout your home.
This revised guide should provide a clearer, more accurate set of instructions for installing a surge protector. If you’re unsure at any point, it’s best to consult a licensed electrician to ensure safety and proper installation.
Installing Surge Protection for Network Cables and Sensitive Electronics
The need of the hour is protection at multiple levels without sacrificing any aspect of safety. Along with a whole-house SPD, special care should also be taken to protect sensitive electronics and network cables, providing additional protection. Routers, modems, computers, and even some smart appliances are at risk when sub-par Ethernet, coaxial, or telephone cables are used, as surges can travel through them.
Protecting the devices directly can be done with Ethernet surge protectors. These multi-functional devices can be positioned directly with the cable you wish to protect, guarding against power surges. Any ethernet device like the ones which need protection such as routers can utilize these to guard themselves. Coaxial cable surge protectors perform the same function and can be used for cable modem and television connections. Other variants like telephone line surge protectors are used for traditional phone lines as well alongside devices like fax machines and answering machines.
If you’re looking to protect sensitive individual electronics, buying a point-of-use surge protector is complimentary additional protection. This type of surge protectors can be found in the form of power strips containing surge protective properties and even outlet plugs. While selecting point-of-use surge protectors, make sure that they have a high joule rating, as this would indicate the amount of energy a surge protector can protect itself with before succumbing to failure. Generally, having a higher joule rating means a surge protector would provide better defense against surges. Furthermore, make sure you check the warranty construction, if the indicator light is not working, and if the protector is operational. Also keep in mind that not all power strips state or show surge protection capabilities, so always cross check the claims.
Why Choose LSP Surge Protection Devices for Reliable and Safe Installation?

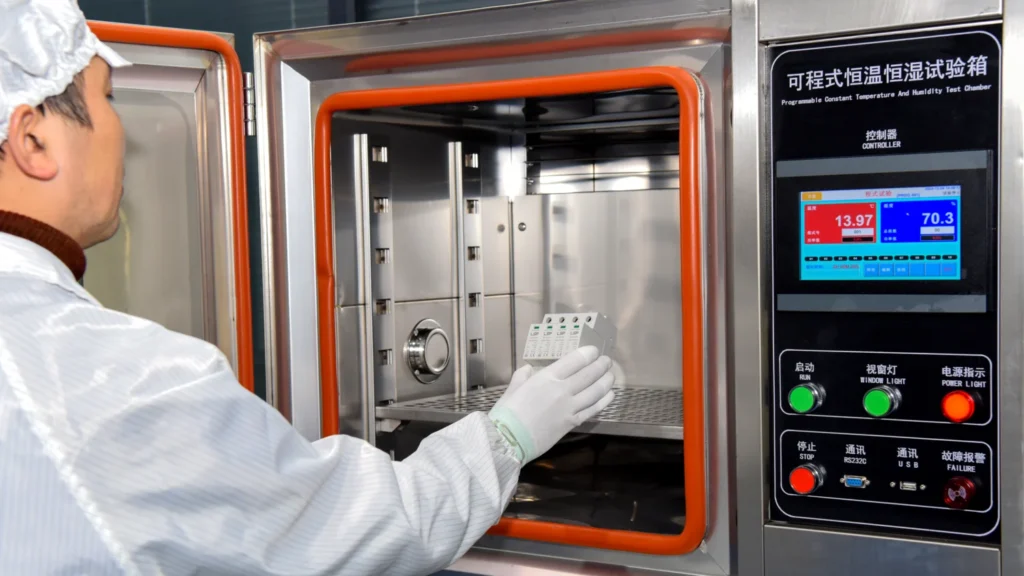

different tests, ensuring reliability and safety
For LSP, all details of every surge protection device (SPD) we manufacture are centered around reliability and safety. SPDs produced by us incorporate high-quality LKD MOVs and Vactech GDTs which together provide unparalleled protection from lightning strikes and other electrical surges. We undertake rigorous testing such as 8/20 and 10/350 waveform tests which guarantee the long term stable operational performance of your equipment. We have tailored our products to provide sufficient protection for residential as well as commercial installations.
At design level, we have incorporated features such as an internal disconnect mechanism which isolates and cleans arcs, stopping fires from occurring and providing an additional layer of safety. In addition to that, our SPDs have low-temperature trip technologies which allow them to function in extreme temperatures. With TUV, CE and ISO9001 certifications, our products have passed international safety standards so that you can feel secure.
At LSP, in addition to our outstanding service, we maintain exemplary customer assistance. Our staff responds to 12-hour customer inquirywindows and a 7-day return period, free of any conditions, with exchange windows lasting 30 days. Furthermore, we provide auxiliary features such as repair help and region-specific customer service helps contact us more easily. In the case of device failure, we offer remote assist troubleshooting and inspection preparation guidance. Should you need help with the installation protection, our SPD replacement assistance is always on standby.
Testing and Maintaining Your Surge Protection Device: Ensuring Long-Term Protection
Surge protection devices (SPDs) must be examined on a frequent basis if they are to continue delivering dependable protection. Most of the whole house surge protection devices have an operational status indicator light which is normally green. Make it a point to check these lights regularly as departures from the normal green may signal some faults or failures which is more likely than not means the device has absorbed considerable surge and needs servicing. In the absence of changes, the light indicator on the tested unit is assumed to be ineffective.
On the other hand, whole-house surge protection devices do not have user test buttons but do have sophisticated features that can indicate their status remotely. Always consult the manufacturer’s guide for specific testing directions. Limiting checkups of your SPDs to once a year increases the chances of overlooking loose connections alongside physical damage, burns and corrosion signifying wear. Damage found should always demand device replacement immediately. For whole house systems, it would be more prudent to hire a licensed electrician for a detailed inspection.
Always remember that surge protectors, like every other device, have a limited lifespan. The parts, which absorb and protect against surges from external power sources, breakdown and stop functioning effectively as time passes. While the frequency and severity of the surge may affect the overall life of the surge protector, these devices are typically designed to last 3 to 5 years. If however, the device has weakened or absorbed high surges (such as those caused during lightning storms) the device stands the chance of having to be replaced at an even shorter time span. While multi-purpose surge protectors may last considerably longer, inspecting them with a licensed electrician after substantial thunderstorm surges is abest practice to ensure utmost reliability.
Conclusion: Protecting Your Home Starts with Proper Installation
In today’s world, where our lives are increasingly intertwined with technology, protecting our homes from the unseen threat of power surges is no longer optional—it. It’s a necessity. From the potential for costly damage to our valuable sensitive electronics to the risk of electrical fires, the consequences of neglecting surge protection can be significant.
By understanding the risks, choosing the right types of surge protection devices for your needs, and ensuring proper installation, you can create a robust defense against these electrical anomalies. Whether you opt for the comprehensive protection of a whole-house SPD, or take additional protection measures to safeguard your network and communication lines, the key is to be proactive.
Remember that safety should always be your top priority when dealing with electrical systems. If you are not comfortable with any aspect of the installation process, don’t hesitate to call a qualified and licensed electrician. Their expertise will ensure that the job is done correctly and safely, giving you the peace of mind that comes with knowing your home and your family are well-protected. Taking the time to properly install surge protection is an investment in the longevity of your electronics, the safety of your home, and ultimately, your peace of mind. It’s a proactive step that can save you considerable expense and heartache in the long run, ensuring that the silent threat of power surges never catches you unprepared.
When it comes to reliable and safe surge protection, LSP’s SPDs stand out as a trusted choice. With our high-quality components, rigorous testing, and exceptional customer support, we ensure that your home and electronics are shielded from power surges. Protect your home with us—your first step toward long-term safety and peace of mind.
