Introduction: The Growing Need for DC Surge Protection Devices
The world’s increasing dependence on electricity has successfully spearheaded a shift towards the usage of Direct Current (DC) power systems. DC power directly nourishes, from the already omnipresent solar systems adorning every possible building to the finely woven industrial control networks managing sophisticated industrial automation and the telecommunications as well as data centers powering the digital era. While these systems enjoy widespread use, they also face a grave concern – their exposure to voltage surges, commonly referred to as surges. These sudden and high magnitude changes in voltage can damage highly sensitive electronic equipment, resulting in expensive replacement costs, prolonged system downtime, and severe safety threats. Therefore, the creation of dependable and robust DC surge protective devices has become a dire requirement in modern society. These surge protectors stand capital bay as important electrical components that protect sensitive electronic equipment from overvoltage electric disturbances bringing in reliance, safety, and efficiency to our infrastructure. DC SPDs are maturing as essential components to protect the growing DC power system powered infrastructure. This paper describes the fundamentals of DC power systems, the risks faced, the importance of DC SPDs, their numerous uses, and the considerations that must be made in providing the appropriate defense to your valuable assets.
Understanding DC Power Systems and Their Vulnerabilities
Although Alternating Current (AC) has been the primary form of power transmission, Direct Current (DC) is considerably advantageous in some situations such asenergy storage, conversion, and precision in control. The same applies to solar energy systems, batteries, and even majority of modern electronic devices which naturally use the DC form. Along with AC comes a system of power distribution that is very intricately balanced with numerous changes occurring. On the other hand, the rising popularity of DC integrated systems makes them incredibly prone to a distinct range of threats.
Different sources can trigger surges in a DC system. Strikes of lightning, whether having a direct impact or an indirect one, still pose a serious risk. Even being hundreds of miles away from a lightning occurrence can create huge voltage surges in nearby electrical systems. Rapid overvoltages can also be caused by the flow of electricity itself, for instance the stopping and starting of massive electric motors or breaking of electricity flows by the circuit breakers. In addition, surge events may be caused by discharge of electricity (ESD) or even a fault that occurs within the DC apparatus.
In contrast to AC systems that have natural zero crossings due to oscillating voltage, DC systems have voltage with fixed polarity. This nature of DC systems implies that the surge threats can be more persistent and damaging to sensitive electronic components. With insufficient safeguards in place, these voltage surges can exceed an electronic circuit’s capacity, resulting in breakdown of components, failure of insulation, and in worst case scenarios, fires. This is especially true for the delicate micro processors and semiconductors that lie at the heart of modern equipment powered by DC devices. For these reasons, recognizing the primary sources and specific effects of surges on DC systems are the first steps in understanding how crucial DC SPDs are.
What Exactly is a DC SPD (Surge Protective Device)?
In short, a DC Surge Protective Device (DC SPD) is an electrical component designed to safeguard electronic equipment from voltage spikes (transient overvoltages) inDirect Current (DC) electrical systems. Think of it as a safety valve for your power system—when a surge occurs, the SPD detects the overvoltage condition and instantly provides a low-impedance path to safely divert the excess energy away from sensitive components, typically to the ground. Once the transient has passed and voltage returns to normal levels, the SPD resets and remains on standby for future surge events.
The core functionality of a DC SPD is made possible through the use of voltage-sensitive components such as Metal Oxide Varistors (MOVs) or Gas Discharge Tubes (GDTs). Under normal operating conditions, these components maintain a very high impedance, rendering them virtually invisible to the circuit. However, once the voltage exceeds the device’s protection threshold (known as the Voltage Protection Level or VPL), their impedance drops sharply, allowing surge current to flow through a safe, low-impedance path to earth. This prevents the damaging overvoltage from reaching the connected equipment.
DC SPDs are available in different types, categorized by their placement within the electrical system and their ability to withstand surge currents:
- Type 1 SPDs are installed at the main DC power entry point and are capable of handling high-energy surges, including those caused by direct lightning strikes. These devices serve as the first line of defense.
- Type 2 SPDs are typically installed downstream of Type 1 units. They protect against residual surges and those caused by switching operations or indirect lightning effects.
- Type 3 SPDs are installed close to end-user or sensitive equipment. They are designed to protect against low-energy transients and should only be used in combination with Type 1 and/or Type 2 SPDs.
Understanding and applying the appropriate types of DC SPDs is crucial for comprehensive surge protection in any DC-powered system, such asphotovoltaic installations, battery energy storage systems, or DC microgrids.
Why is DC SPD Crucial for Your Valuable Equipment?
The need to integrate DC SPDs into your electrical networks cannot be understated if you wish to protect your equipment and assure system reliability and operational continuity. The solar surge protector is absolutely necessary. Failing to implement surge protection measures is one of the most dangerous things you could do, both in terms of scope and resources.
- Guarding Against Uncontrolled Surges: Sensitive electronic devices are at risk of damage as a result of rapid power surges without DC Surge Protection Devices (SPDs) in place, resulting in erratic device performance, expensive maintenance, and replacement fees.
- Preventing Long-Term Damages: Surges in voltage can take down many devices in the long run by steadily degrading their performance, meaning even if a power surge does not immediately devastate a device, it can still fail in due time.
- Prevented Downtime and Losses: Electrical surges can lead to expensive fines and monetary damage, in addition to the loss of productivity caused when switching on the unresponsive system, leading to malfunctioning systems within industrial environments. Even a brief disturbance in data centers and telecommunications can lead to dire consequences, making it important to ensure such things are avoided.
- System Reliability Assurance: To safeguard operational continuity, uptime and system reliability of essential infrastructure are ensured through the integration of DC SPDs which maintain defended and operative systems helping aid damage control.
- Hazard Prevention: Without protection from DC SPDs personnel power surge risks and equipment damage become severely heightenedas electrical shields can fail and result in start hazaard. Preventing such issues protects personnel as well as equipment.
- Long-Term Strategic Planning: To safeguard against destruction of sensitive systems, staff, and the organization’s overarching strategic plan executes prevention planning through the use of protection devices which serve as a vital preventative action as opposed to letting these systems unruly lie vulnerable.
- Financial and Operational Risk Mitigation: The DC SPDs enhance operational efficiency by shielding unprotected DC power systems from financially destructive electrical risks, protecting against power surges and other operational interruptions.
To wrap up, the incorporation of DC SPDs goes beyond taking preventative measures, which is an important aspect; it is equally as important as ensuring that all equipment functions in an optimal condition while averting operational risk of disruption. With these implemented, world-altering electrical surges will no longer be a threat as DC SPDs will protect systems, enabling infrastructure systems to run smoothly. Stop leaving your equipment and other essential assets with no protective measures in place; installing DC SPDs to taking action to safeguard your operational processes.
Key Applications of DC SPD Across Industries
A wide variety of industries use DC SPDs, which makes the importance and versatility clear. Surge protection of robust strength is a must, and in the case where critical equipment is powered using DC, the usage of robust DC SPDs follows.
Protection Devices for Solar Photovoltaic (PV) Systems
As a primary building block of the renewable energy projects, solar power systems are under constant threat of surge events. In the open, solar arrays together with their inverters are at high risk of both direct and indirect lightning strikes. Such surges can have disastrous impacts on PV modules, inverters, and other system components, which ultimately leads to reduced power generation capability, expensive repairs, system downtimes, or a combination of all three. The investment made towards the solar installations of solar energy systems and their long term system reliability can be protected by solar surge protection devices designed specifically for PV system applications. These solar surge protectors are typically placed on the DC side between the solar system panels and the inverter and on the AC side between the inverter and the grid to ensure better protection.
DC SPD for Industrial Control and Automation
Sophisticated control and automation systems that serve modern factories are powered by DC. Controlled Logic System (PLC) accompanying with sensors, actuators, etc. form the industrial control systems and are prone to damage from surges caused by other systems within the industry such as powering large equipment. If these control systems fail, the results could be major disruptions in production alongside safety issues and costs pains. The industrial electronics can be defended with sparing DC surge current so that they work without issues. So, making sure the different industrial functions can work conveniently and reliably is taken care of by DC SPDs, which is crucial.
DC SPD for Telecommunication and Data Centers
Power cannot fluctuate the most in the telecommunication and data center industries because these are now integral in our day to day life. These facilities have a plethora of sensitive electronic equipment including but not limited to servers, routers, and the entire communication infrastructure, which all require DC powered. With voltage surges, all these systems may experience catastrophic loss of data, failure to communicate, and lots of other issues that may lead to financial blows. Everything crucial for infrastructure in telecommunications and data centers is protected by DC SPDs to maintain the flow of information and continued dependence on digital services.
Additional Significant Applications of DC SPD
Apart from these specific applications, DC SPDs are also integral to many other industries and systems, such as:
- Charging Systems and Electric Vehicles (EV): In context of electric transport, safeguarding sensitive electronic components situated within the EVs and the charging stations against surges becomes paramount for safe and reliable operational concerns.
- Renewable Energy: Wind Power: Wind turbines, much like solar PV, depend on DC power for their operations, and so do their control systems and these too need efficient surge protection.
- Healthcare: The reliable functioning of medical devices is critical, so they rely on DC SPDs to guard crucial life-supporting devices from voltage surges.
- Transportation (Aviation, Railways): Both aviation and railways use DC voltage to some extent which makes surge protection so as safety and operational efficiency is maintained.
- Security Systems: Uninterrupted operation of security cameras, alarms, and access control systems depend on surge protected power sources.
The scope of these examples illustrates the great magnitude of DC SPDs in guarding expensive equipment and assuring normal functioning of sensitive systems throughout numerous industries.
Choosing the Right DC SPD: Factors to Consider
Choosing the right DC SPD for your system involves analyzing a few parameters very carefully. Neglecting these parameters will yield impotent or counterproductive SPDs.
| Factor | Description |
| System Voltage | The nominal operating DC voltage of the power system being protected. The SPD’s voltage rating should be at least equal to the maximum continuous operating voltage of the circuit. |
| Maximum Surge Current | Indicates the maximum surge current the SPD can handle without failure. The SPD should be selected based on the expected surge currents in the environment, considering factors like lightning exposure. |
| Voltage Protection Level (Up) | The voltage level below which the SPD will prevent surge voltage from propagating to the equipment. A lower voltage protection level offers better protection for sensitive equipment. |
| Type of SPD | The position of the SPD within the electrical system determines the type of SPD required. Compliance with local regulations and guidelines like IEC, UL, and ANSI is essential. |
| Type of Connection | DC SPDs may have terminal blocks or plug-in connectors. Choose the connection type that matches your system’s wiring and installation requirements. |
| Safety Measures and Trust Credentials | Ensure the SPD adheres to safety standards and certifications such as UL and IEC, which guarantee its quality and performance. |
| Conditions of the Environment | Consider the environmental conditions where the SPD will operate, including dust levels, humidity, and temperature. Select an SPD with the appropriate IP rating for protection against these factors. |
| Remote Indication and Monitoring | Some DC SPDs offer remote indication and monitoring of operational activity, which can aid in proactive maintenance and troubleshooting. A fast response time is crucial for effective surge protection. |
Taking a look at these factors will enable you to choose a DC SPD that will help meet the needs of your valuable equipment’s protection device and ensure system reliability for the long-term of your DC power systems. The entire electrical system‘s safety should be considered
LSP: Your Trusted Partner for Superior DC SPD Solutions
In the realm of surge protection, experience, reliability, and innovation are paramount. LSP stands as a trusted partner, dedicated to providing superior DC Surge Protective Device solutions designed to meet the diverse needs of modern industries. With a deep understanding of the intricacies of DC power systems and the ever-evolving threats they face, we offer a comprehensive range of high-quality DC SPDs engineered for optimal performance and longevity, adhering to standards like IEC/EN and ensuring a high resistance to failure under normal conditions.
Type 2 DC PV Solar Surge Protective Device SLP-PV1000-S
Main Features:
- DIN rail installation
- For 1000V DC / PV / Solar power system
- High discharge capacity due to zinc oxide varistor
Applications:
- Location of Use: String box, Inverter
- Mode of Protection: (DC+) – PE, (DC-) – PE, (DC+) – (DC-)
- Housing: Pluggable Design
- Compliance: IEC/EN 61643-41
Specification
| Max. continuous operating voltage Uc | 1000V |
|---|---|
| Type | Type 2 / Class II / Class C |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Total discharge current (8/20 μs) Itotal | 40KA |
| Maximum Discharge Current (8/20 μs) Imax | 40kA @ Type 2 |
| Protective elements | Metal Oxide Varistor (MOV) |
Type 1+2 DC PV Solar Surge Protective Device FLP-PV1000G-S
Main Features:
- DIN rail installation
- For 1000V DC / PV / Solar power system
- High discharge capacity due to zinc oxide varistor / GDT combination
Applications:
- Location of Use: String box, Inverter
- Mode of Protection: (DC+) – PE, (DC-) – PE, (DC+) – (DC-)
- Housing: Monoblock Design
- Compliance: IEC/EN 61643-41
Specification
| Max. continuous operating voltage (DC+) – PE, (DC-) – PE Uc | 725V |
|---|---|
| Max. continuous operating voltage (DC+) – (DC-) Uc | 1000V |
| Type | Type 1+2 / Class I+II / Class B+C |
| Impulse discharge current (10/350 µs) Iimp | 6.25KA |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Maximum Discharge Current (8/20 μs) Imax | 40kA @ Type 2 |
| Protective elements | Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) |
Type 1+2 DC PV Solar Surge Protective Device FLP-PV1500-S
Main Features:
- DIN rail installation
- For 1500V DC / PV / Solar power system
- High discharge capacity due to zinc oxide varistor
Applications:
- Location of Use: String box, Inverter
- Mode of Protection: (DC+) – PE, (DC-) – PE, (DC+) – (DC-)
- Housing: Monoblock Design
- Compliance: IEC/EN 61643-41
Specification
| Max. continuous operating voltage (DC+) – PE, (DC-) – PE Uc | 1500V |
|---|---|
| Max. continuous operating voltage (DC+) – (DC-) Uc | 1500V |
| Type | Type 1+2 / Class I+II / Class B+C |
| Impulse discharge current (10/350 µs) Iimp | 6.25KA |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Maximum Discharge Current (8/20 μs) Imax | 40kA @ Type 2 |
| Protective elements | Metal Oxide Varistor (MOV) |
Conclusion

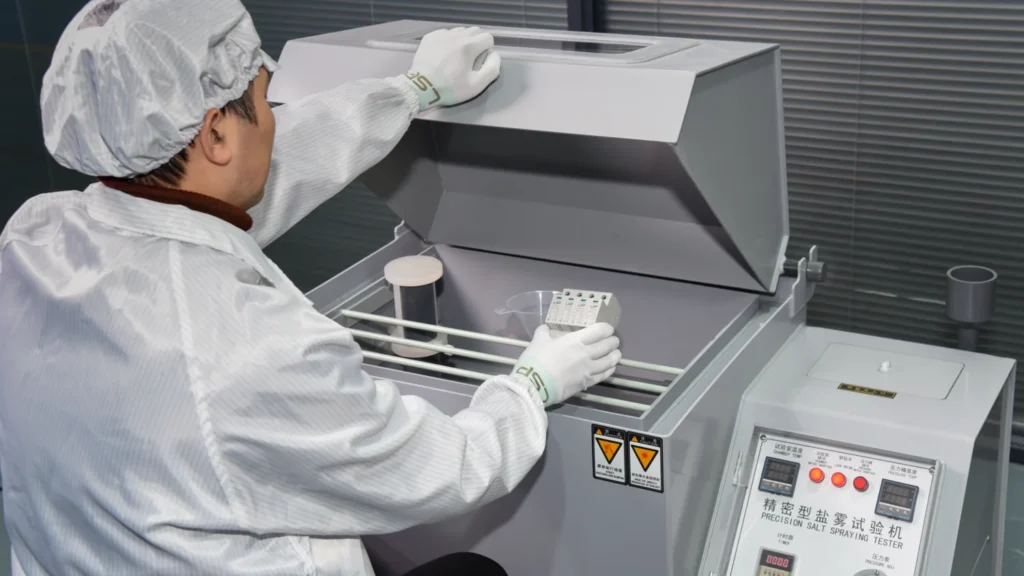

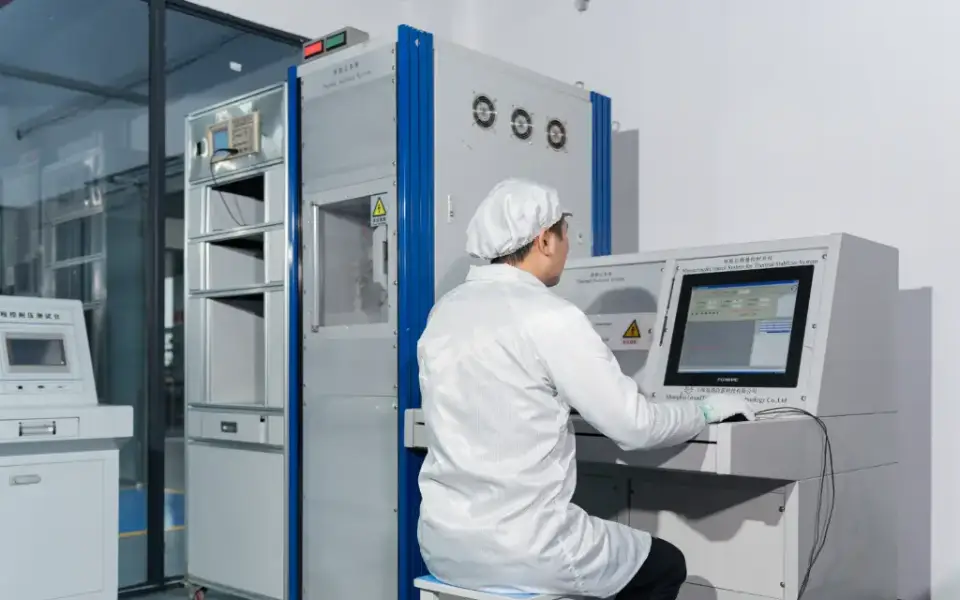

Here at LSP, we firmly believe that the quality of core components is important in the performance and lifespan of DC Surge Protective Devices (SPDs). This is the main reason we painstakingly choose top-grade raw materials. LKD MOV (Metal Oxide Varistors) and Vactech GDT (Gas Discharge Tubes) are highly regarded by the industry leaders. Our commitment to quality never stops, and each core component that we manufacture goes through stringent testing to guarantee unwavering reliability even in the harshest of conditions. Each SPD is rigorously evaluated by lightning surge impact and thermal stability tests to ensure that they provide the utmost protection. Alongside the numerous global certifications such as ISO9001, CE, and offering a 5 year warranty, we proudly stand behind our products’ impeccable quality. Whenever you decide to choose LSP, you are choosing a trusted partner that truly enables the utmost protection with unmatched durability and peace of mind.
Conclusion: Invest in DC SPD for Long-Term System Security
The increasing reliance on DC power across various industries underscores the critical need for effective surge protection. DC Surge Protective Devices are no longer a peripheral consideration but rather an indispensable component for ensuring the longevity, system reliability, and safety of valuable equipment and critical infrastructure, including photovoltaic installations. Like an insurance policy against unforeseen electrical surges, investing in DC SPDs provides long-term security and peace of mind.
Ignoring the potential for surge damage can lead to costly equipment failures, disruptive system downtime, and even safety hazards. By proactively implementing a comprehensive surge protection strategy with high-quality DC SPDs, businesses and individuals can safeguard their investments, minimize operational disruptions, and ensure the continuous and safe operation of their DC power systems.
The selection of the right DC SPD requires careful consideration of system parameters and application-specific needs, including the maximum voltage expected in the electrical system. Partnering with us ensures access to reliable products, technical expertise, and the peace of mind that comes with knowing your valuable equipment is well-protected.In today’s electrically charged world, the investment in DC surge protection is not just a cost; it’s a strategic imperative for long-term system security and operational success.
